Installation of QuikBloc is fast and simple as the blocks are maneuvered using the lifting anchor cast into the top of each block.
The interlocking principle of QuikBloc provides flexibility as structures can be modified or extended with ease, allowing the blocks to be removed or relocated at any time.
L x W x H (mm)
Full Block (Standard)
1400 x 700 x 700
Half Block (Standard)
700 x 700 x 700
Full Block (Large)
1600 x 800 x 800
Half Block (Large)
800 x 800 x 800
QUIKBLOC INSTALLATION & HANDLING INSTRUCTIONS
Precast concrete retaining blocks (QuikBloc) are manufactured to EN 15258, full specification is available within our Declaration of Performance. QuikBloc are designed by Chartered Structural Engineers in accordance with EN1992:1-1 and BS EN 15258:2008.

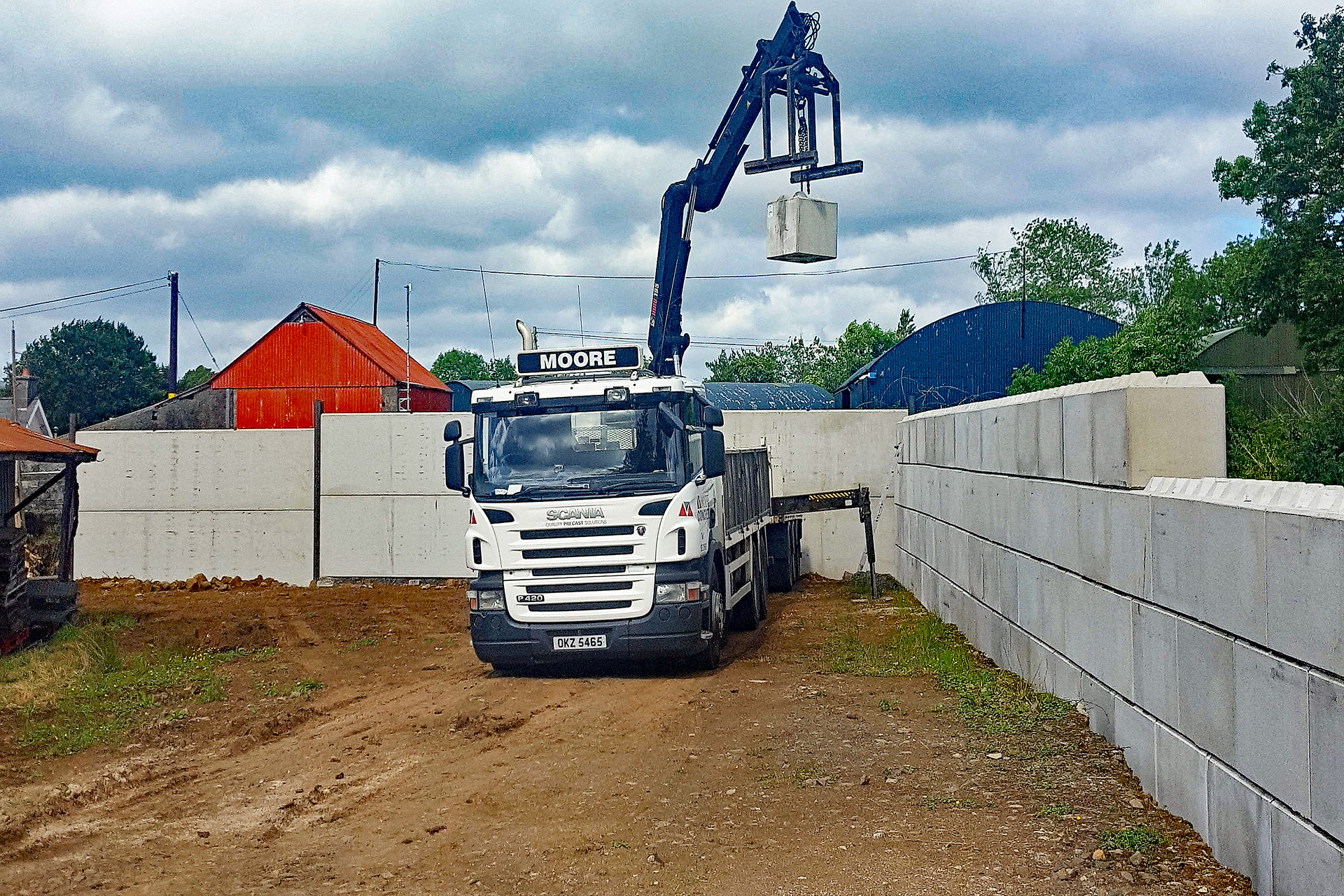

On delivery to site Moore Concrete recommends offloading and storage is done safely on firm ground by component persons. Units should be lifted either using a forklift/telehandler to lift directly underneath or by slinging with appropriate lifting tackle and equipment provision for lifting is made with a 7.5 ton utility anchor cast into the top of the unit. Loops must not be used with an angled lift less than 45 degrees.
The unit must be placed on a firm level base. This process is repeated until the bottom row is completed, for subsequent rows the units must be installed with overlapping joints. During stacking the upper and lower units should be checked to ensure there is no debris present that would prevent the units locking fully together
