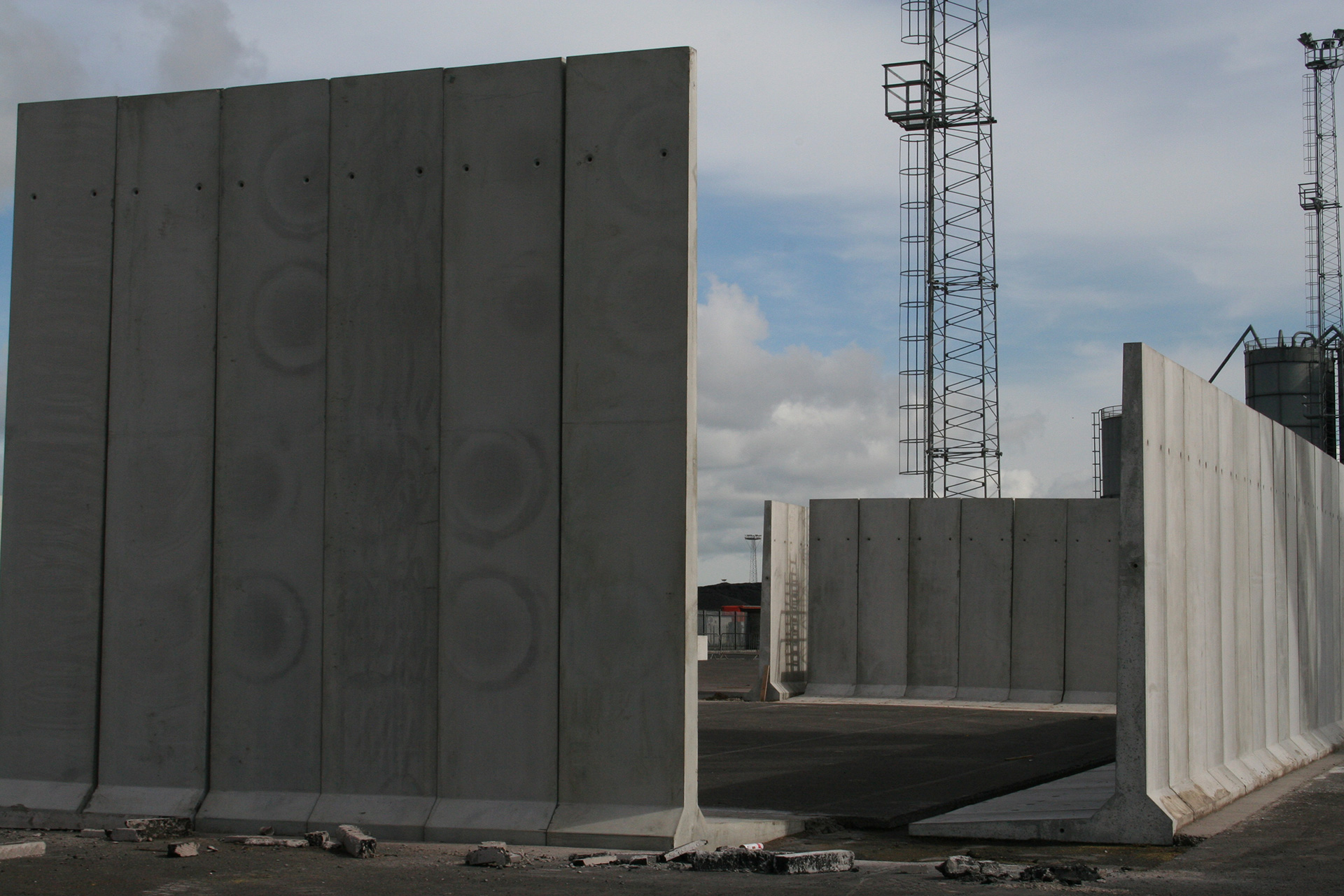

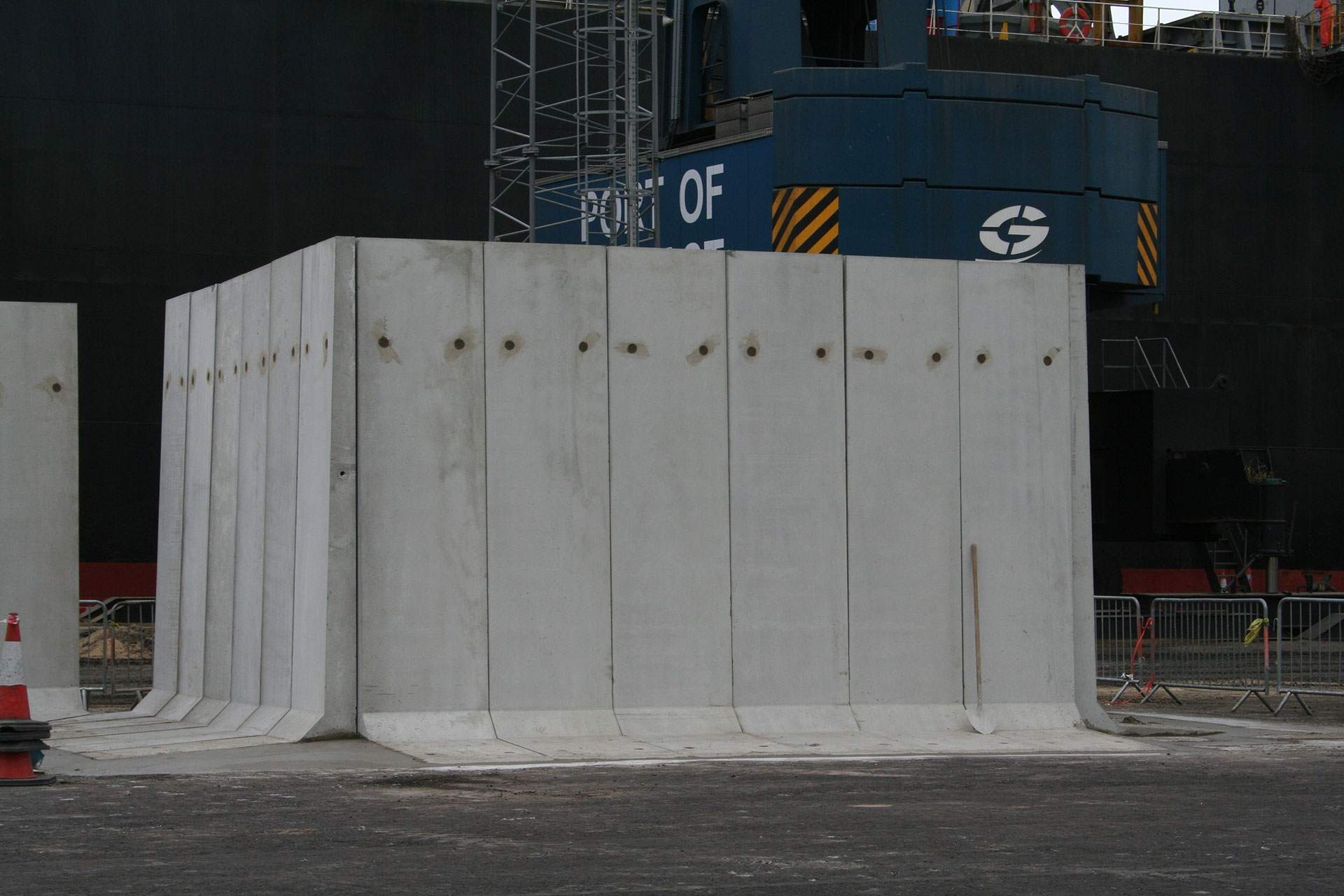

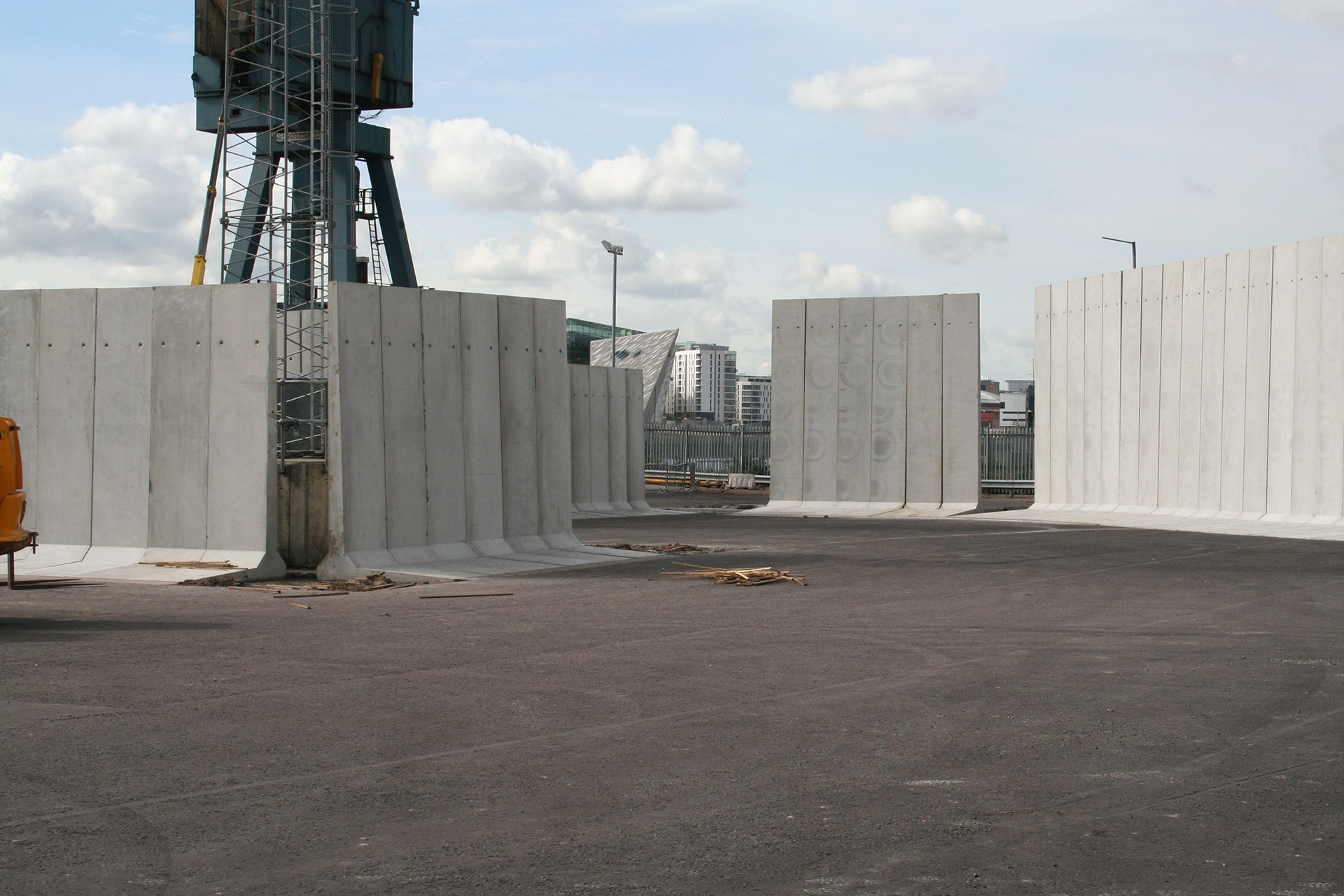

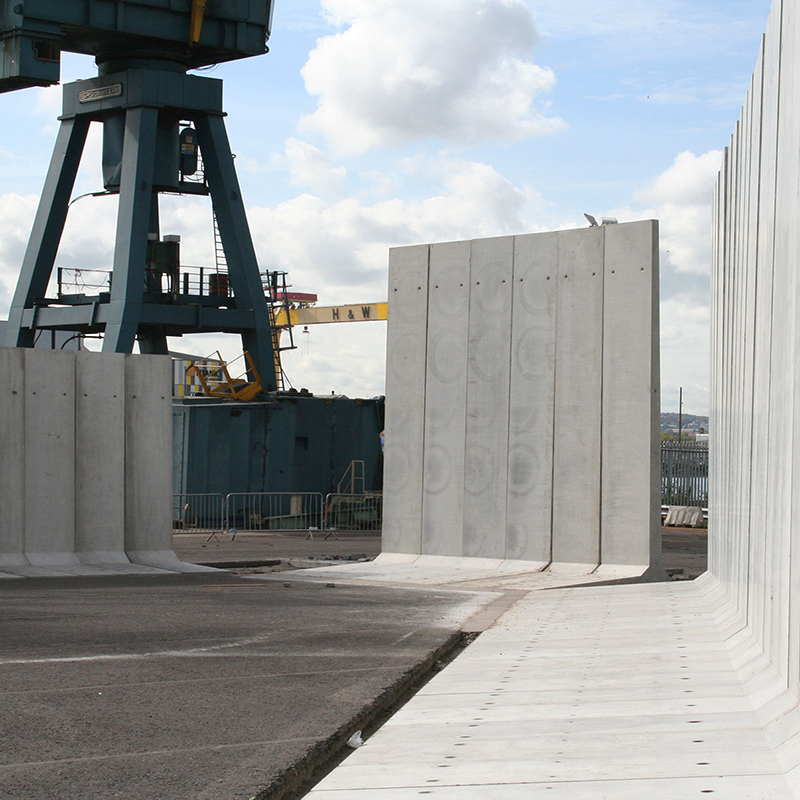

Moore Concrete design and manufacture bespoke Precast Retaining Concrete Walls that are L Shaped to suit most site conditions.
We cover all market sectors, from back gardens to major civil engineering infrastructure projects and continuously strive to deliver a first class service based on value engineered solutions to suit individual project requirements.
We are delighted to be able to use our expertise to guide to the best solution for your particular project, from design and tender stage through to a detailed quotation specific to your requirements.
Road Retaining Wall
Our Precast Retaining wall design is manufactured as an L-shaped panel and they are a versatile and sustainable solution. These are applicable to the public, residential and commercial sectors. Installation is seamless and can be easily relocated.
For further information regarding Retaining Concrete Wall Please contact a member of our civil Sales Team on 028 2565 2566, Ext 3
Download BrochurePlease fill in your details to download brochure
-
Features & Specifications
Versatile designed to facilitate double load bearing.
Quick and easy to install. L walls are simple to position allowing a wall to be quickly formed.
Effective flexible solution for storage often used as temporary divide or storage bays.
Pull-out points are cast above the heel as standard on 2.4m & 3.0m walls to facilitate moving so to access to the silage face.
Easily relocated ‘L’ Walls can be manufactured with forklift toe recesses on the base.
Wide range of L-shaped Walls available in heights of 2.425m (8’), 3.0m (10’) 4.0m (13’), 5.0m (16’5”) and 6.0m (20’).
Corner Retainer Wall Unitsmake it easy to configure and adjust bay sizes.
Designed to stand alone L walls can be fixed down to create permanent structures.
Joints between individual walls can be sealed.
Walls can be detailed with projecting steel, interlocking connections or lined with patterned finishes.
Surcharge loading can also be accommodated to our customer’s requirements.
Free Standing Retainer Walls are CE Marked – Manufactured to EN 15258.
-
Product Dimensions
Precast Retaining Wall Dimensions
Moore Concrete are proud to be one of the UK’s leading manufacturers of high quality precast building products. We have a wide range of L-shaped Walls available in heights of 2.425m (8’), 3.0m (10’) 4.0m (13’), 5.0m (16’5”) and 6.0m (20’). These can be manufactured to bespoke sizes and customer specifications.
-
Delivery
Delivery & Install Options
Free Standing Retaining L Walls are CE Marked – Manufactured to EN 15258.
Moore Concrete free standing retaining walls are designed by Chartered Structural Engineers in accordance with EN1992:1-1 and BS5502 Part 22 2003. Please see Declaration of Performance for further information.
• Free standing retaining walls are shipped on their sides due to height restrictions and for stability.
• Provision for lifting is made with 2Nr 16mm sockets which are cast into the unit. Lifting loops can be supplied by Moore Concrete.
• If using a fork truck an approved fork mounted hook attachment should be used. This mounted hook should be secured to the forks to prevent movement. If fork toes are not available an approved spreader beam should be used for use with a hiab, crane or digger.
• The units should be laid safely on the ground on timber skids/lathes to prevent damage to the unit.
• Lifting Loops will correspond to the load being lifted. Loops can be subjected to a diagonal lift up to 45°.
Moore Concrete will deliver your products to site. For full installation and handing guidance please refer to Storage and Handling Instructions for Free Standing Retaining Walls.
For further information regarding L Shaped Retaining Walls please contact a member of our civils sales team on 028 2565 2566, Ext 3.
Our precast retaining wall units can be delivered to any part of the UK and Ireland. - Projects
