Moore Concrete’s livestock suspended flooring range includes both single and double sloping Cubicle Bases as well as Cubicle End Walls.
For further information regarding Cubicle Bases & End Walls Please contact a member of our agriculture Sales Team on 028 2565 2566, Ext 1
Make an Enquiry

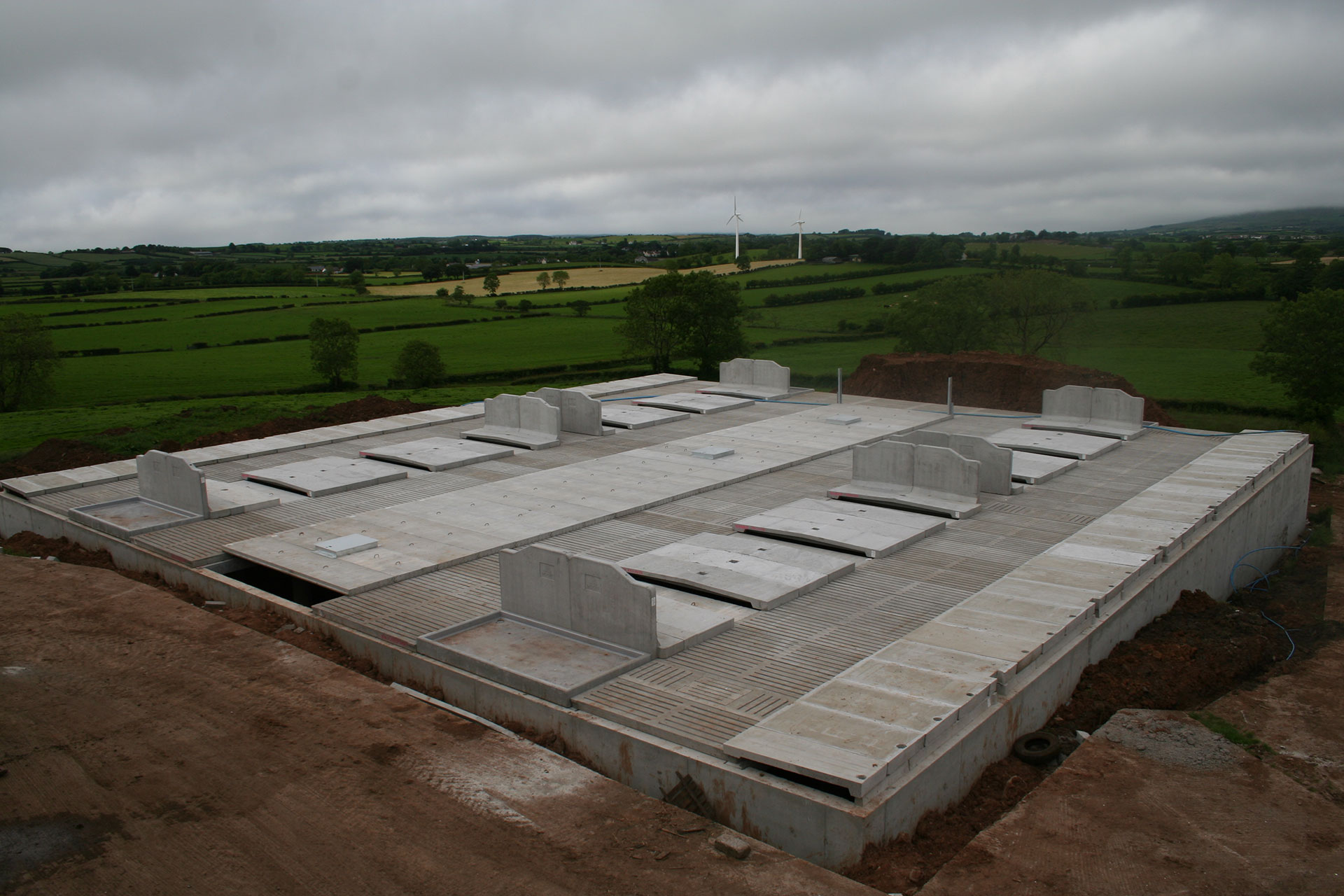

Cubicle Bases are designed to be easily suspended above the tank with no need for floor slabs, optimising slurry storage underneath.
Cubicles Bases vary in length and heel height. Double bases are also available.

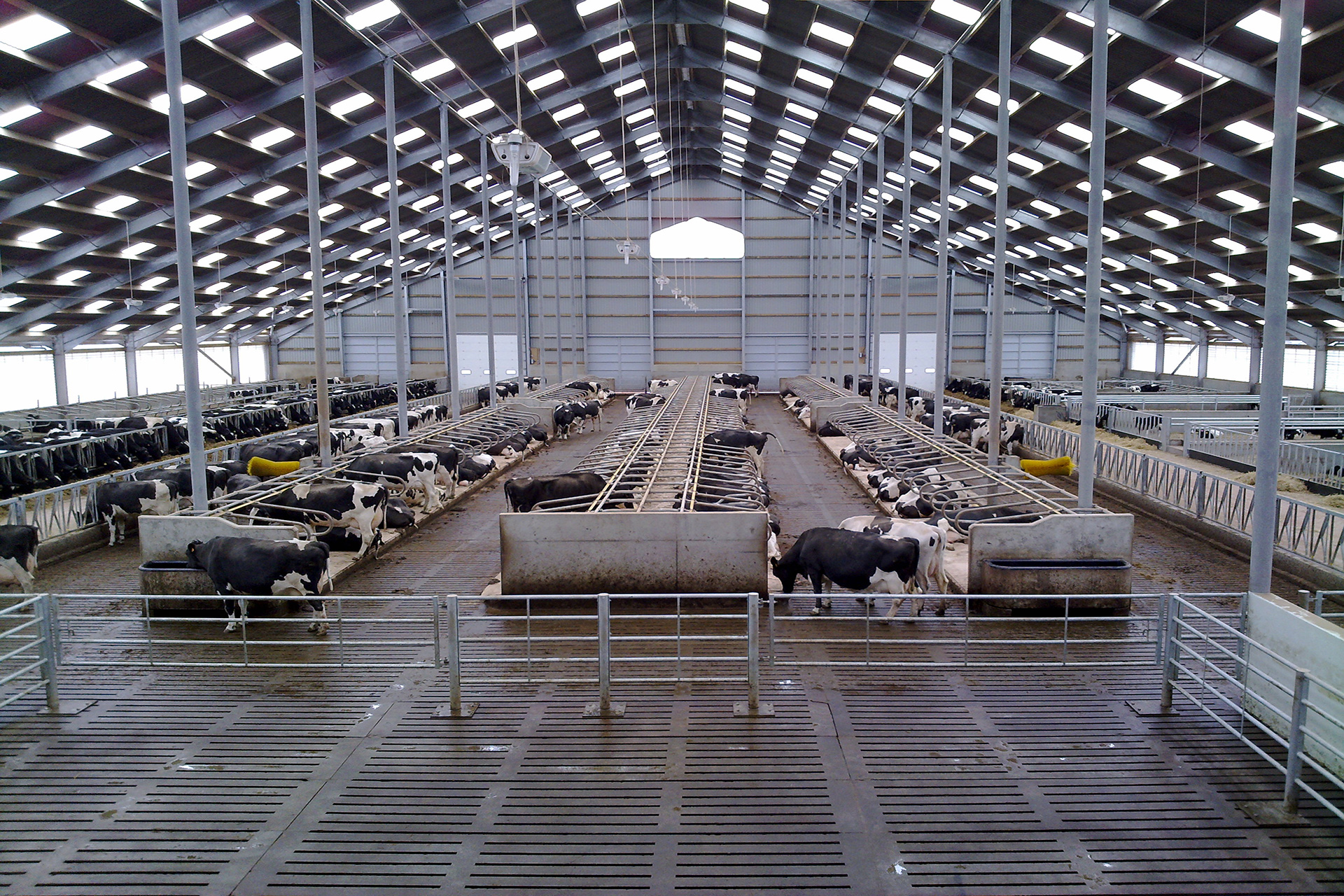

Cubicle bases provide a clean, dry bed for increased livestock comfort and can be incorporated into existing and new build houses.

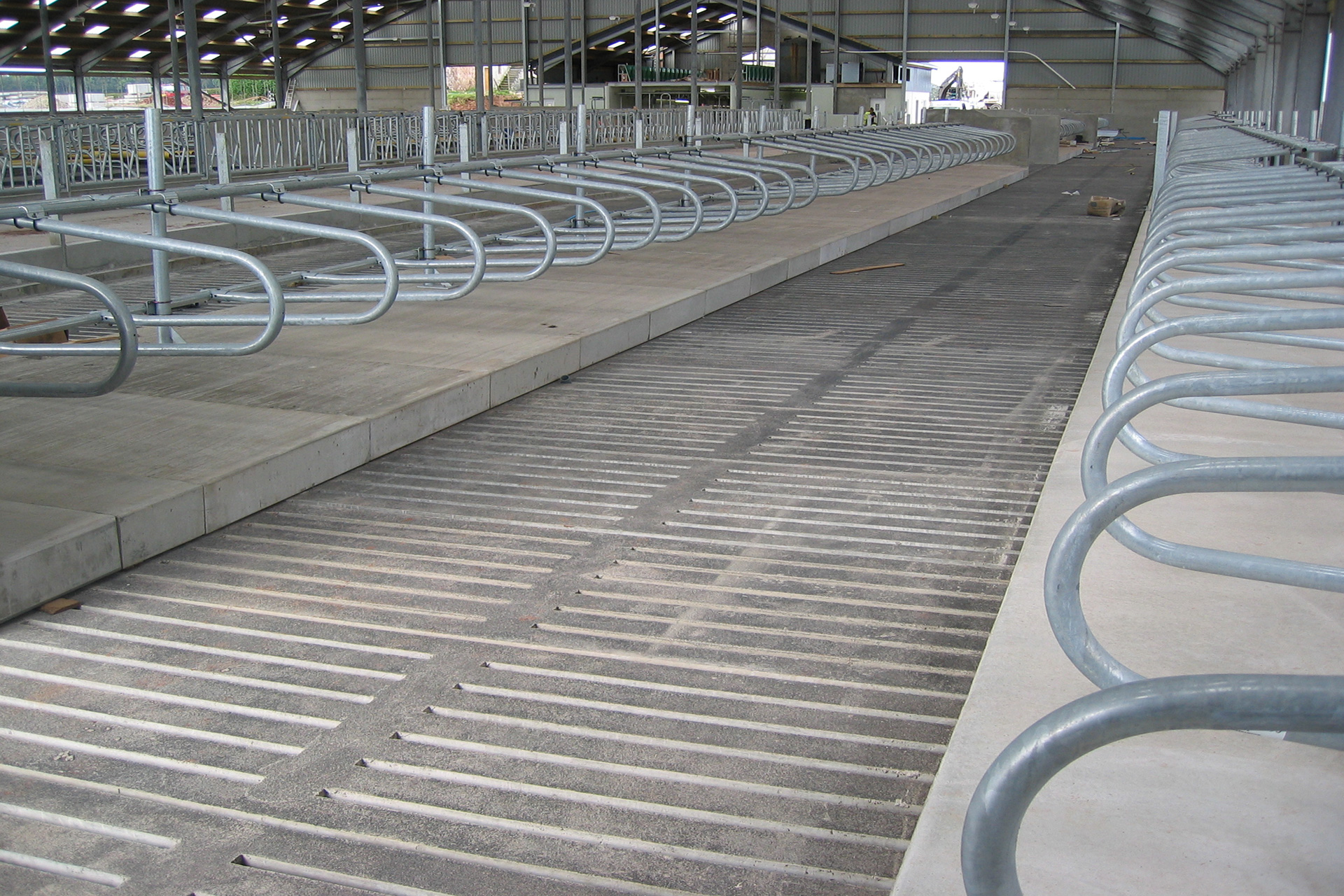

Cubicle Bases can be positioned on the slats to allow the free flow of slurry away from the heel-stone. Units are also compatible with scraper systems.

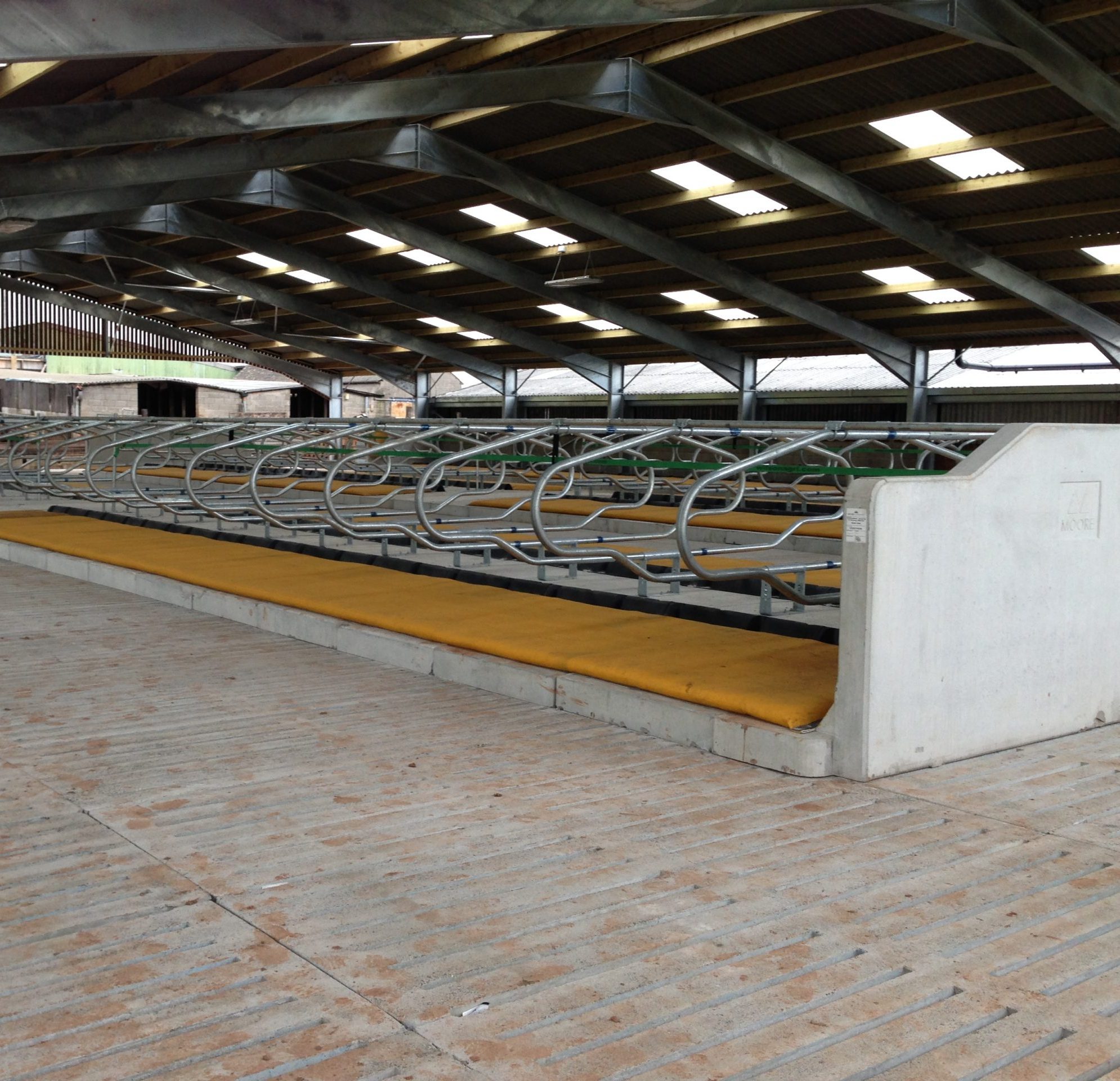

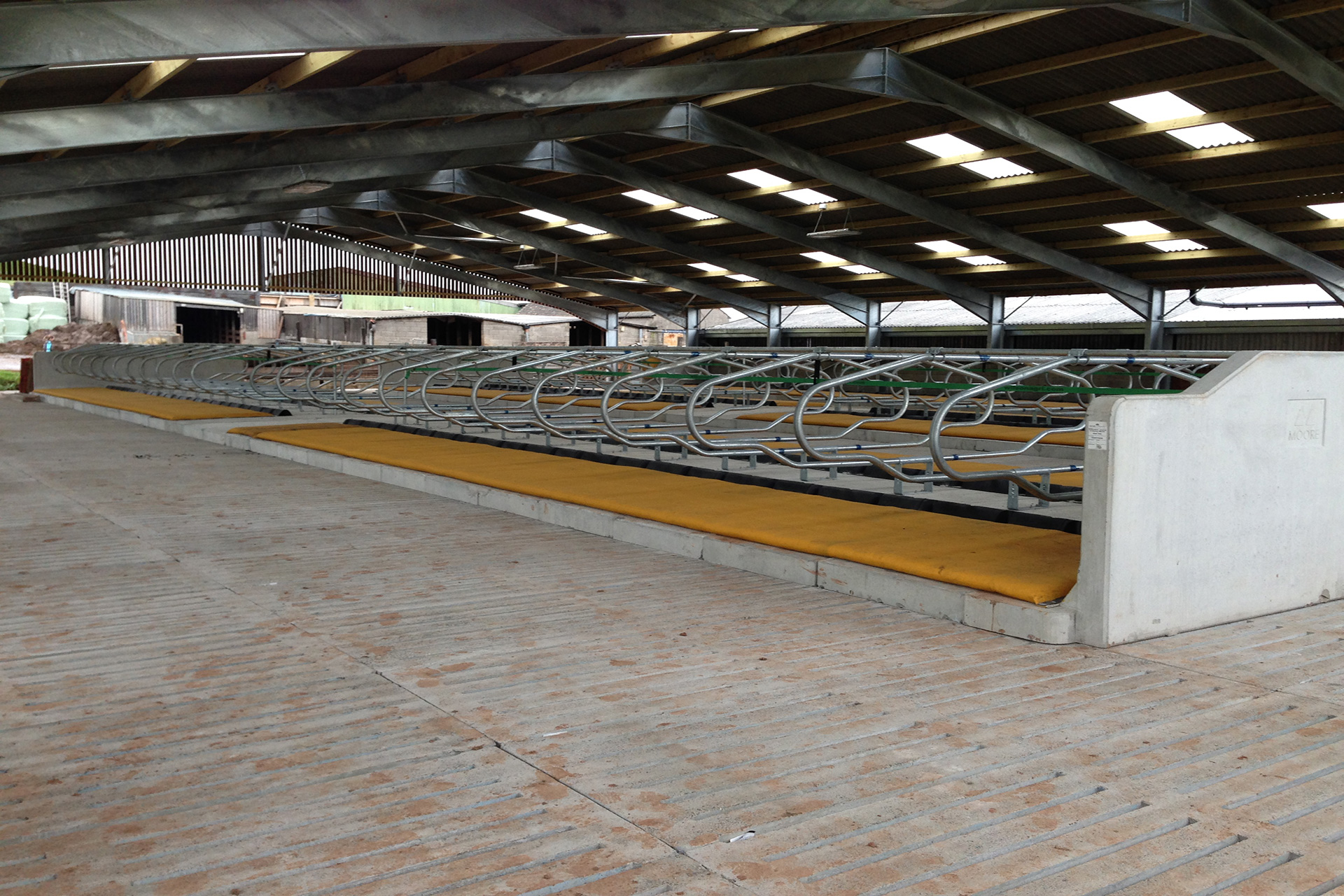

Cubicle End Walls are manufactured in both right and left configurations to suit both ends of the cubicle row and incorporate half a Cubicle Base. These provide a sturdy, cost effective and long term solution to close off a row of cubicles.
Both the Cubicle Bases and End Walls are CE Marked – Manufactured to EN 13747.

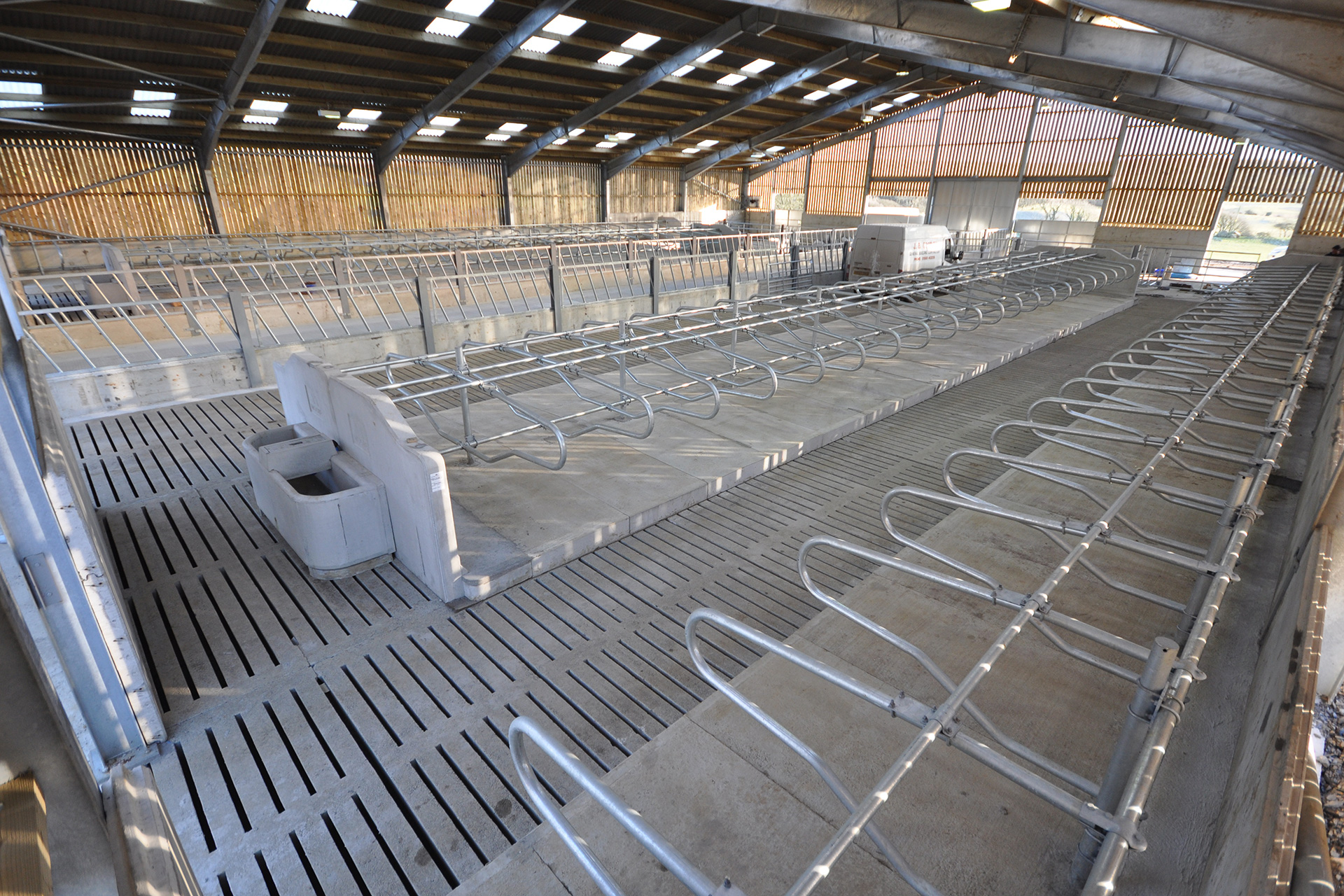

In House Drinker can be purchased as an additional extra and are designed sit flush against the Cubicle End Wall.
Product Dimensions
| Type | Width (mm) |
Length (mm) |
Minimum Heel Height (mm) |
Loading Capacity |
|---|---|---|---|---|
| Single Dry Cast | 1140 | 2135 (7') - 2745 (9') in 150mm increments |
150 | CB |
| Single Wet Cast | 1140 | 2135 (7') - 2745 (9') in 150mm increments |
195 | CB |
| Head to Head (Double) | 1140 | 4270 (14') - 5485 (18') in 305mm increments |
190 | CB |
Key
CB- Cattle Bearing up to 800kg.
Cubicle End Walls available to suit each type/length
