asset BEBO Arches are used for Bridges, Tunnels and Underground Structures for a wide variety of structures within Road, Rail and Waterways projects. Moore Concrete have been the manufacturing partner of asset International Structures for numerous years, providing asset BEBO elements for structures successfully installed throughout the UK and Ireland.

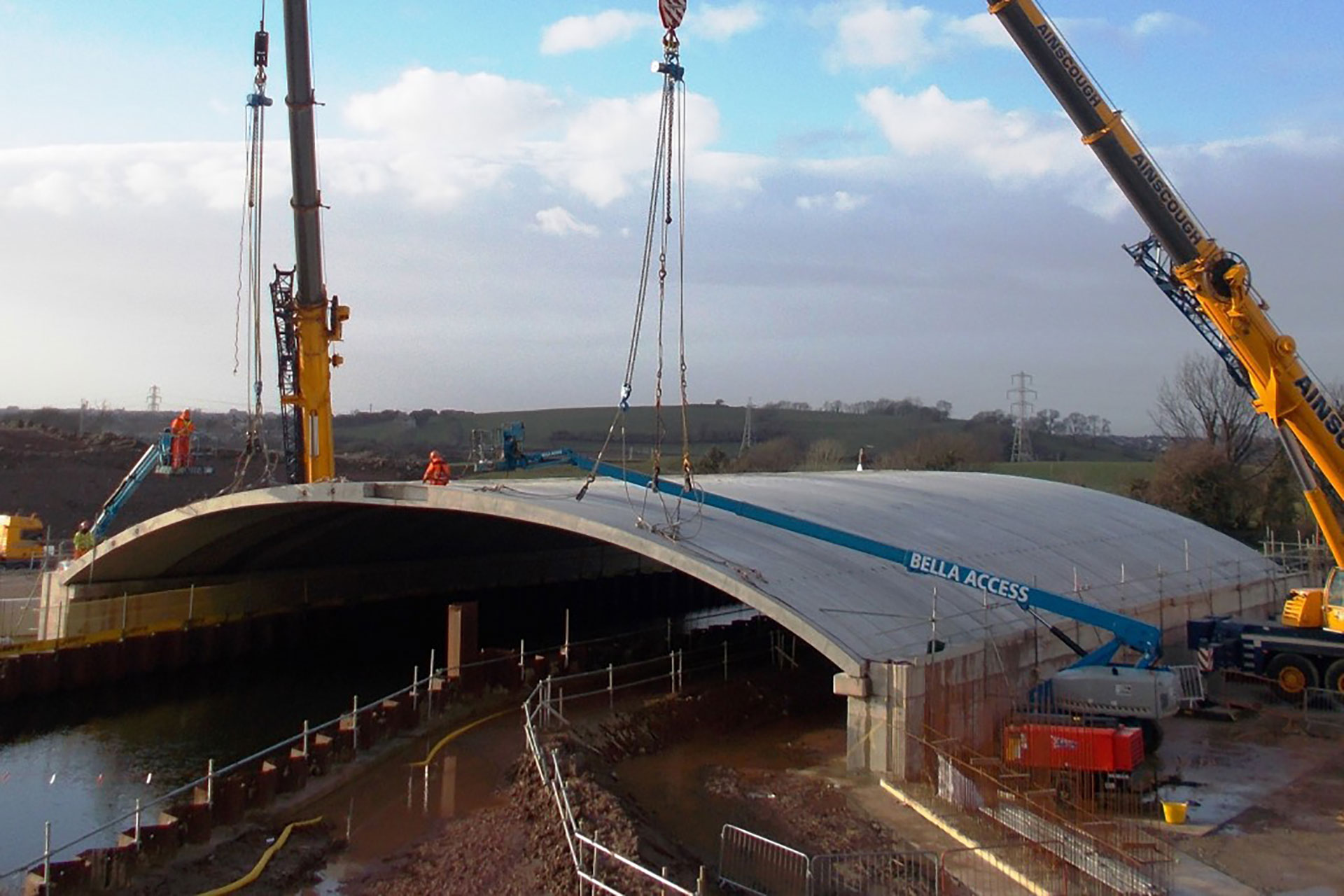

The asset BEBO Arch Bridge System is a pre-engineered system from factory-made components and site-specific construction materials. Precast concrete arch sections are delivered to site for installation. The structure is backfilled with engineered granular material. Standard sections are used to build a range of arches from 4m to 30m spans. Structures can be designed to accommodate large live loads and/or high fills and can be installed quicker than conventional concrete bridge structures.
asset BEBO Arches typically consist of precast Arch Elements, Spandrel Walls & Wing Walls.
DESIGN
asset BEBO Arches are typically two pinned arches of uniform thickness. Each arch type is available in varying leg lengths and arch radius, resulting in more than 100 standard arch types. asset BEBO Arches are designed for a wide range of loading conditions, with the effect of live loads on the arch design being greatest for arches with the least overfill. All construction conditions including prescribed back filling are taken into account in profile design. The number of wing wall elements required depends on the type of arch used, the height of the spandrel wall, the slope of the embankment and the orientation of the wing wall.
Moore Concrete are an Achilles Approved Supplier to Network Rail Contracts.
Concrete Arches
asset BEBO Arch Systems are a precast concrete arch system for the design and construction of bridges, tunnels, culverts and other underground structures. The benefit of using this system is the slender arch sections, aesthetically pleasing structure and its durability.
For further information regarding asset BEBO Arches Please contact a member of our civil Sales Team on 028 2565 2566, Ext 3
Download BrochurePlease fill in your details to download brochure
-
Features & Specifications
Competitive Value Proposition asset BEBO Arches require 30-50% less material such as concrete, steel and sand, than traditional box culverts, combined with lower on site labour costs
Speed of construction on site shaving weeks off construction times
Minimise in disruption with no restriction in machinery crossing the structure once minimum overfill height is reached. asset BEBO Arches have a continues joint-less pavement for overpasses (no costly bridge deck maintenance, support bearing or expansion joint repairs? thus avoiding lengthy road closures
Durability with low maintenance costs as the arch design provides a natural longevity with the earth overfill acting as a cushion against the effects of live load impacts
Superior Stability and Structural Safety
Environment Friendly with asset BEBO Arches requiring reduced material in construction, and minimal environmental disruption on site
Aesthetically pleasing blending well into natural surroundings
Proven Track Record asset BEBO Arch Structures have been built in the UK and Ireland since 2006
-
Product Dimensions
asset BEBO Arches Dimensions
Moore Concrete are proud to be one of the UK’s leading manufacturers of high quality precast building products. Our asset BEBO Arches can be manufactured to bespoke sizes and customer specifications. Talk to our team to find out more.
-
Delivery
Moore Concrete will deliver your products to site.
For further information regarding asset BEBO Arches please contact a member of our civils sales team on 028 2565 2566, Ext 3.
Delivery available throughout the UK and Ireland.
