Concrete Drainage Channels
MenuConcrete Drainage Channels & Road Gullies
We have an extensive range of Concrete Drainage Channels and Road Gullies suitable for the effective management of wastewater on site.
Concrete Water Channels
Water channels are open topped and used to redirect rain or surface waste water on site. They are suitable for both domestic and commercial use.
Slotted Top Concrete Drainage Channels
Slotted Top Drainage Channels are suitable for pedestrian precincts, driveways, industrial areas and commercial developments. Channels can be connected to our silt boxes by a plastic pipe.
Concrete Road Gullies
Trapped gullies (round) eliminate odours through the use of a water seal while untrapped gullies and silt boxes (square) are used for collection of surface water. Silt Boxes come with one hole tapped out, the remaining three can be tapped out if required.
For further information regarding Concrete Drainage Channels Please contact a member of our building Sales Team on 028 2565 2566, Ext 2
Make an Enquiry

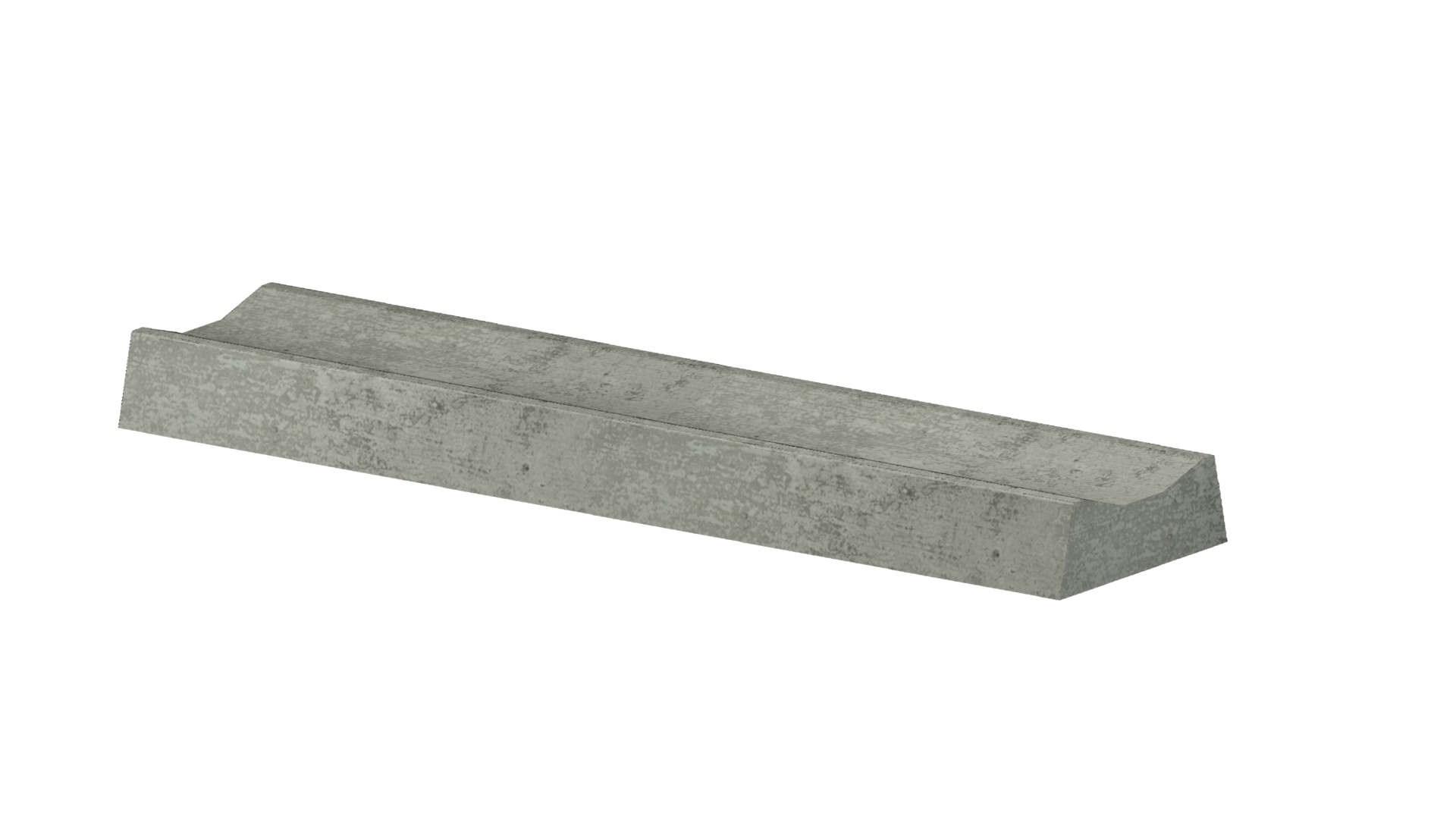

Water Channels
| Size | Length (mm) |
Width (mm) |
Height (mm) |
Depth of Dish (mm) |
|---|---|---|---|---|
| 6” x 2” | 610 | 150 | 50 | 12 |
| 6” x 3” | 610 | 160 | 75 | 25 |
| 10” x 5” | 915 | 255 | 125 | 15 |

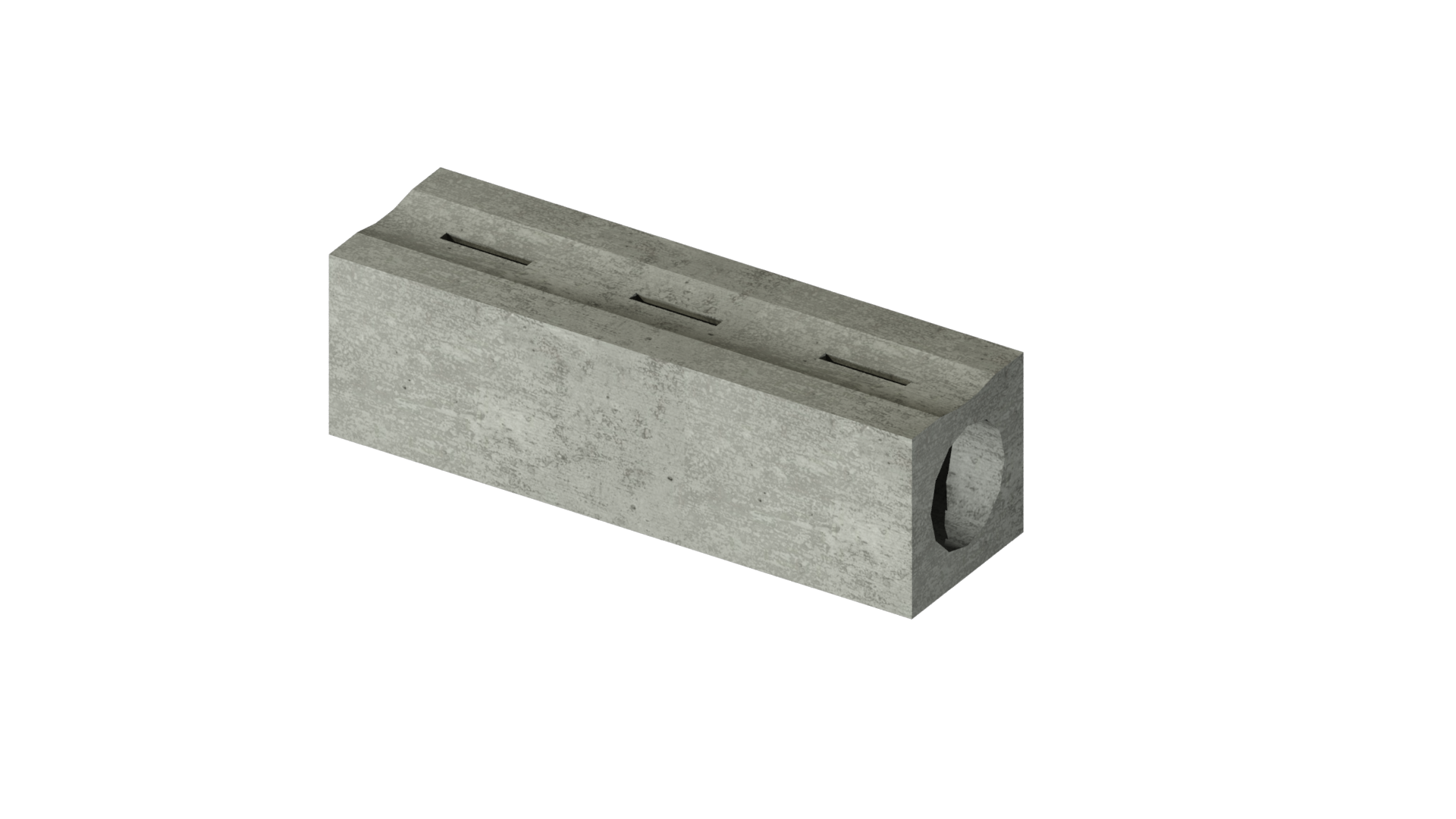

Slotted Drainage Channel
| Slotted Drainage Channel | Length (mm) |
Width (mm) |
Height (mm) |
|---|---|---|---|
| 915 | 225 | 255 |
Silt Box
| Silt Box | Length (mm) |
Width (mm) |
Height (mm) |
|---|---|---|---|
| 540 | 465 | 450 | |

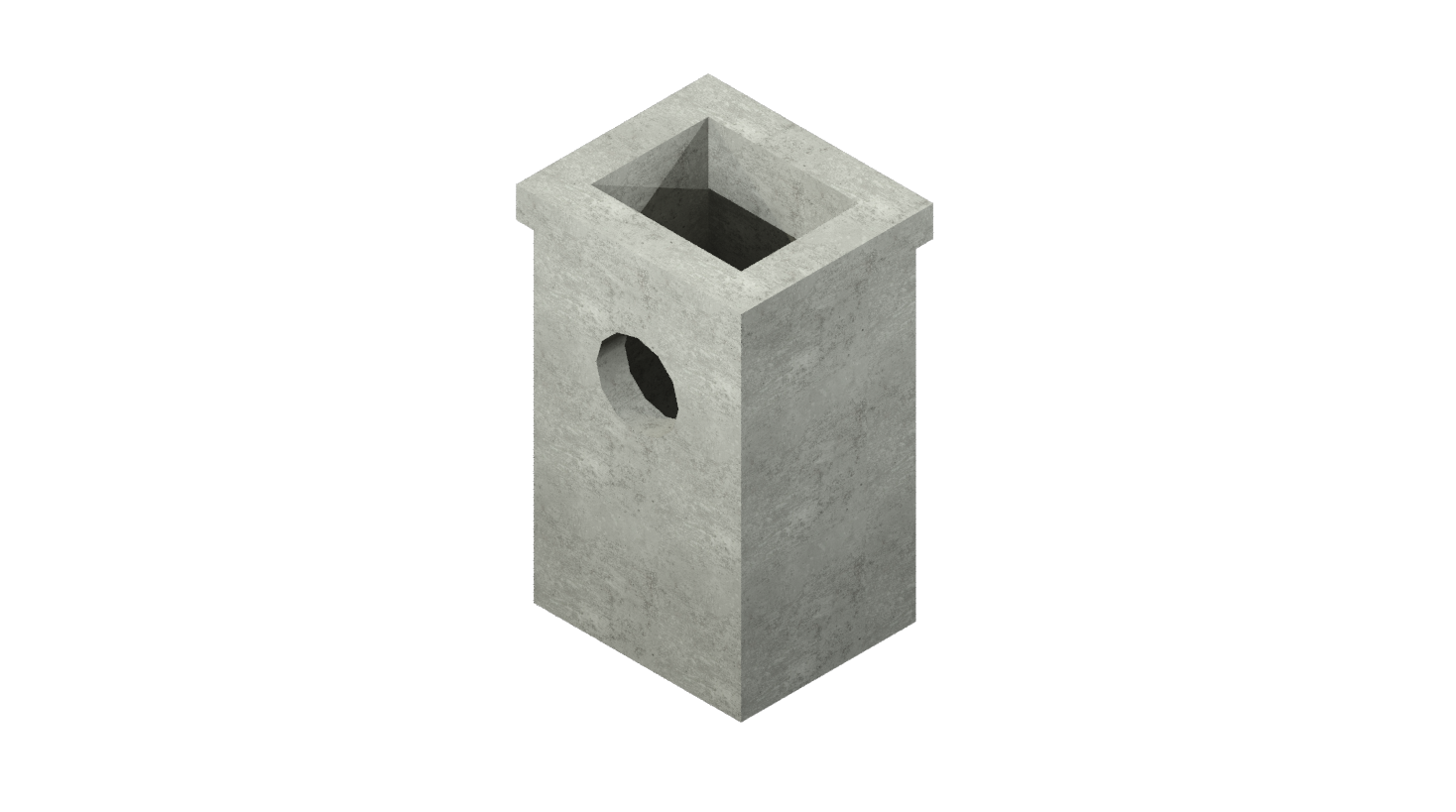

Untrapped Gully
| Untrapped Gully | Length (mm) |
Width (mm) |
Height (mm) |
|---|---|---|---|
| 510 | 440 | 830 |

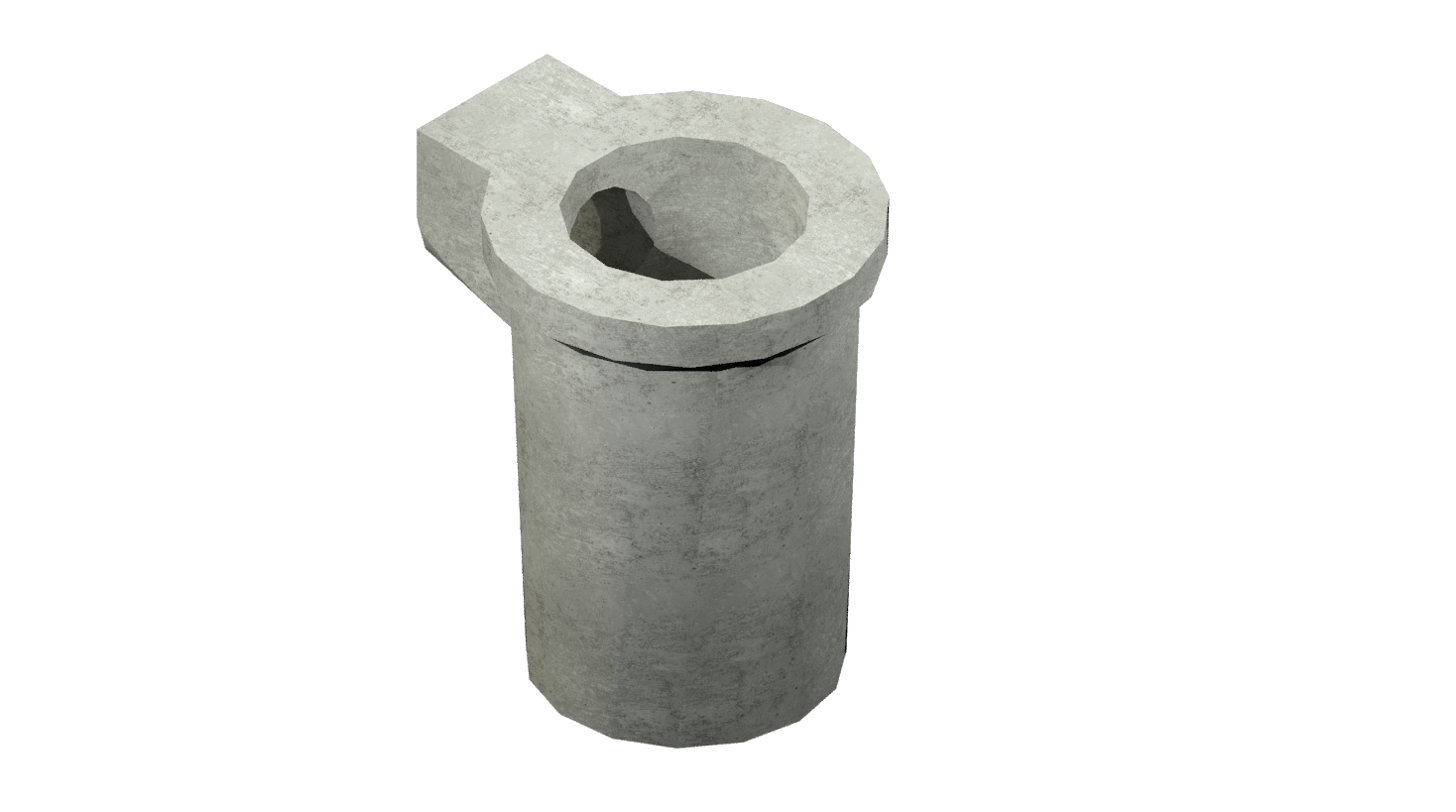

Trapped Gully
| Trapped Gully | Width (mm) |
Height (mm) |
|---|---|---|
| 600 | 800 |

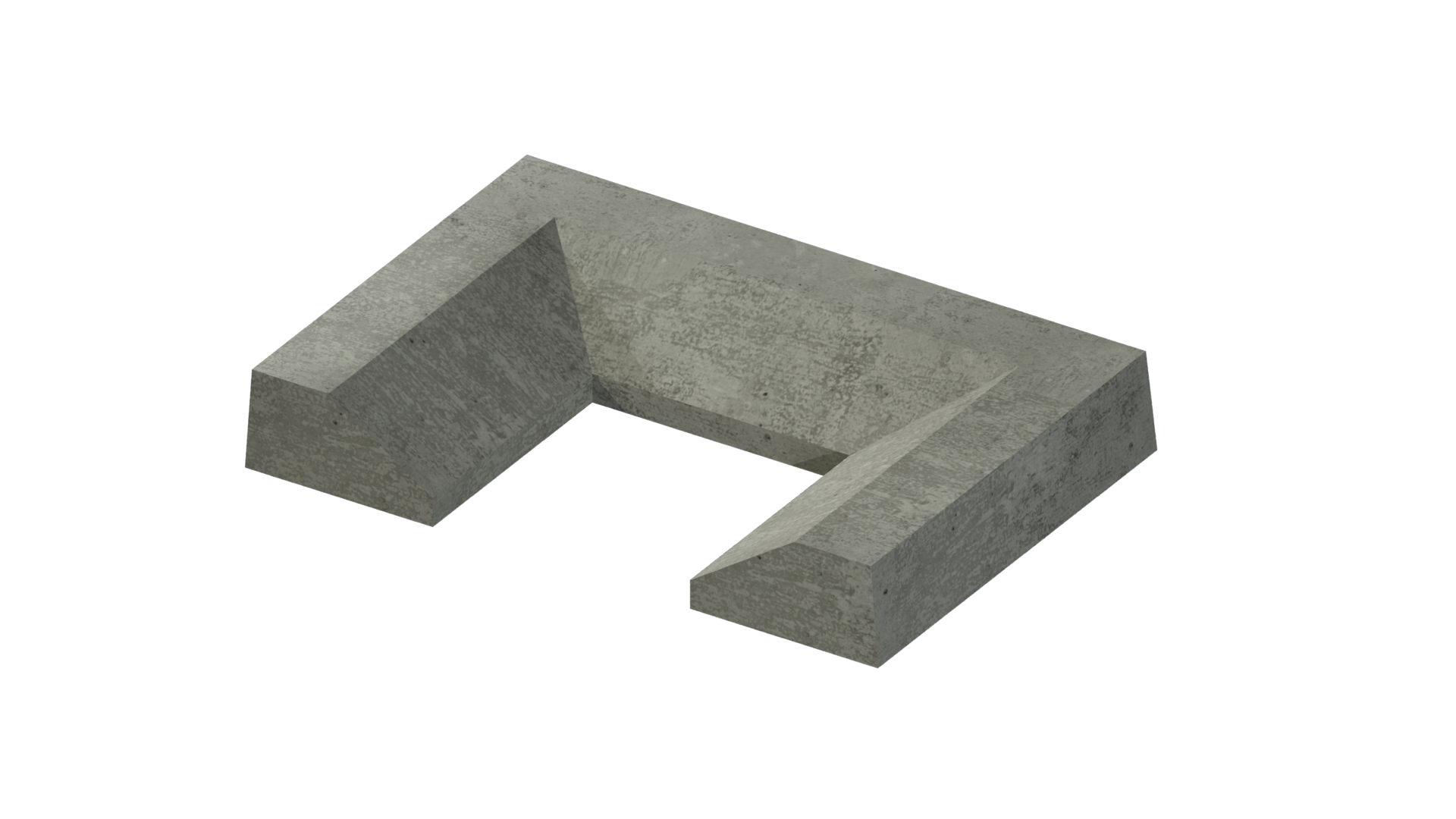

Gully Surround
| Size | Thickness (mm) |
Opening (mm) |
Internal Length (mm) |
Height (mm) |
|---|---|---|---|---|
| 9” x 7” | 70 | 180 | 230 | 70 |
| 9” x 9” | 70 | 230 | 230 | 70 |
| 7” x 7” | 135 | 180 | 180 | 70 |
| 10” x 7” | 135 | 165 | 255 | 70 |
Water Channels and Road Gullies are suitable for both heavy duty and domestic use.

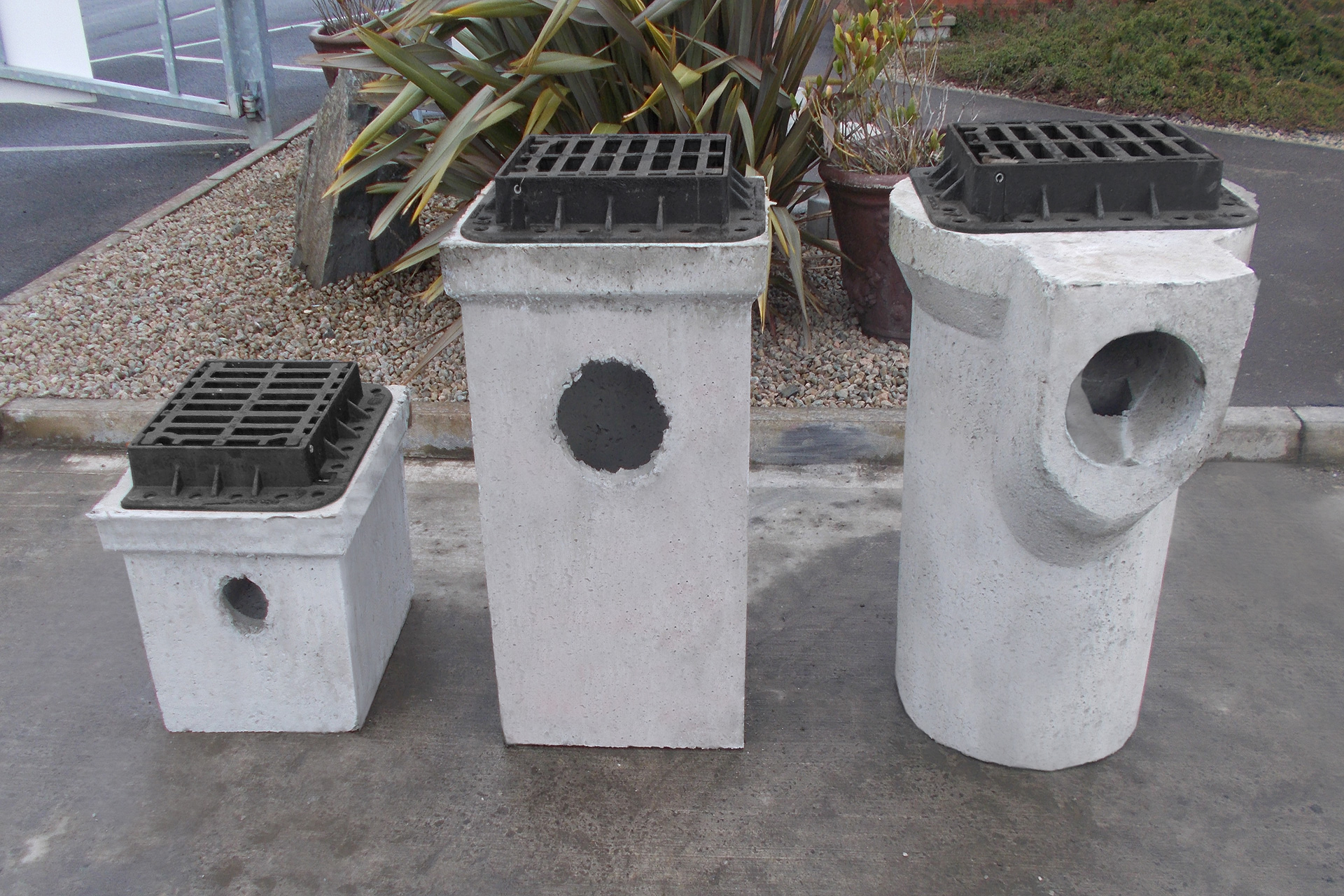

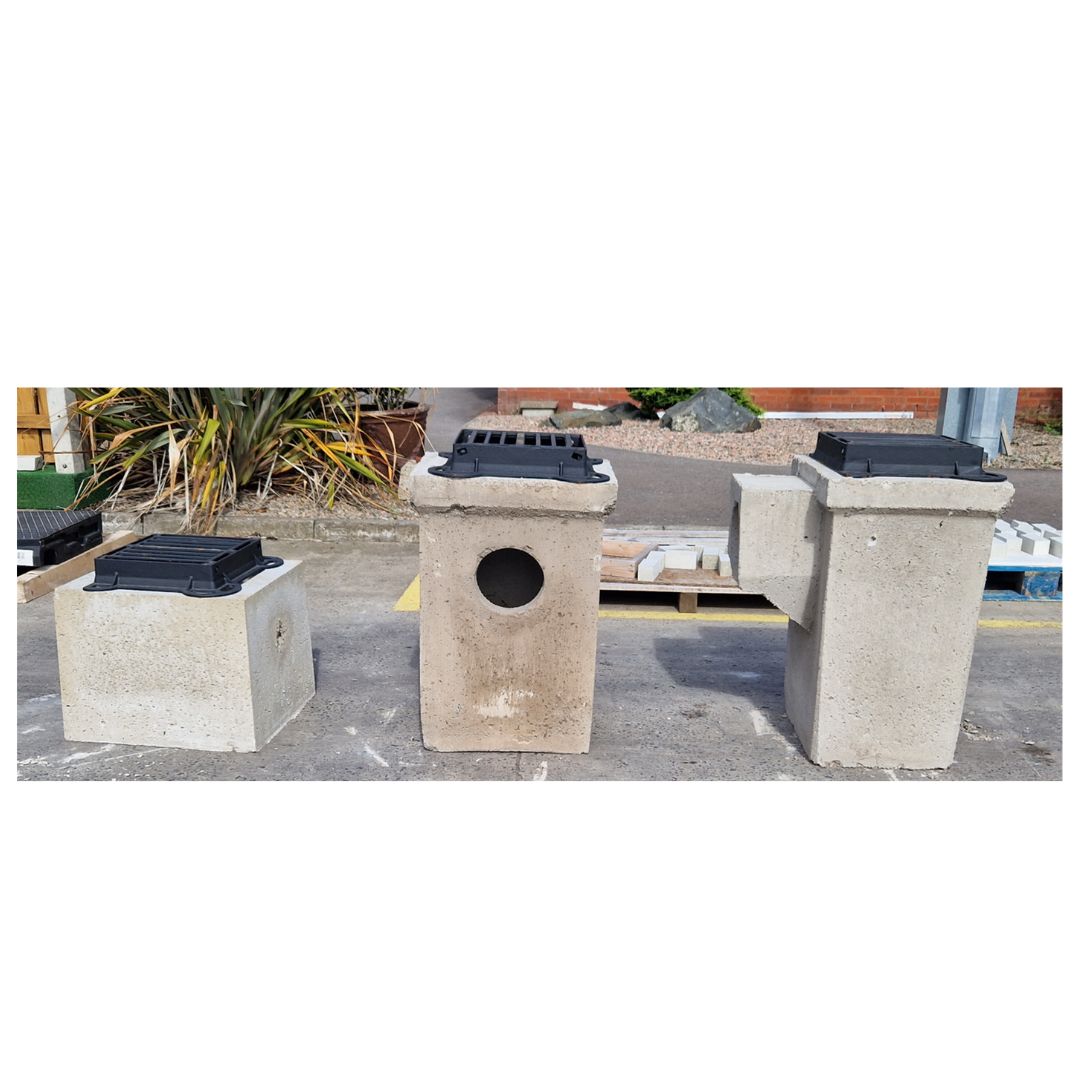

We manufacture three types of Road Gullies to suit your drainage requirements
Trapped road gullies, Untrapped road gullies and Silt Boxes.
For further information regarding Water Channels and Road Gullies please contact a member of our building sales team on 028 2565 2566, Ext 2. Delivery available throughout the UK & Ireland.
