Moore Concrete manufacture a range of heads, sills and thresholds
Our Concrete Window Sills (also known as cills) come in a variety of styles including single course, two course and stooled. Our sills are frequently used in private homes and residential developments.
We also supply a wide range of Precast Concrete Lintels / Heads and Concrete Door Thresholds for a variety of building projects.
Arched lintels and corner padstones available on request.
Prestressed heads are suitable for mulit-floor buildings according to loading tables. Please contact our building team for more information.
For further information regarding Heads, Sills and Thresholds Please contact a member of our building Sales Team on 028 2565 2566, Ext 2
Make an Enquiry

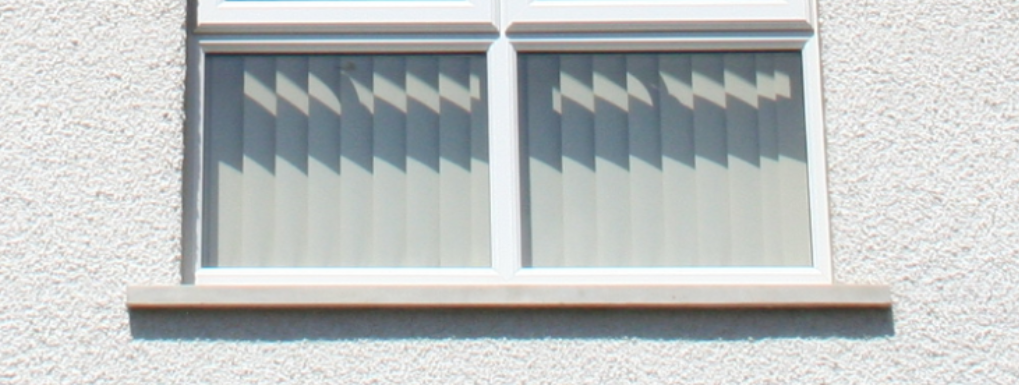

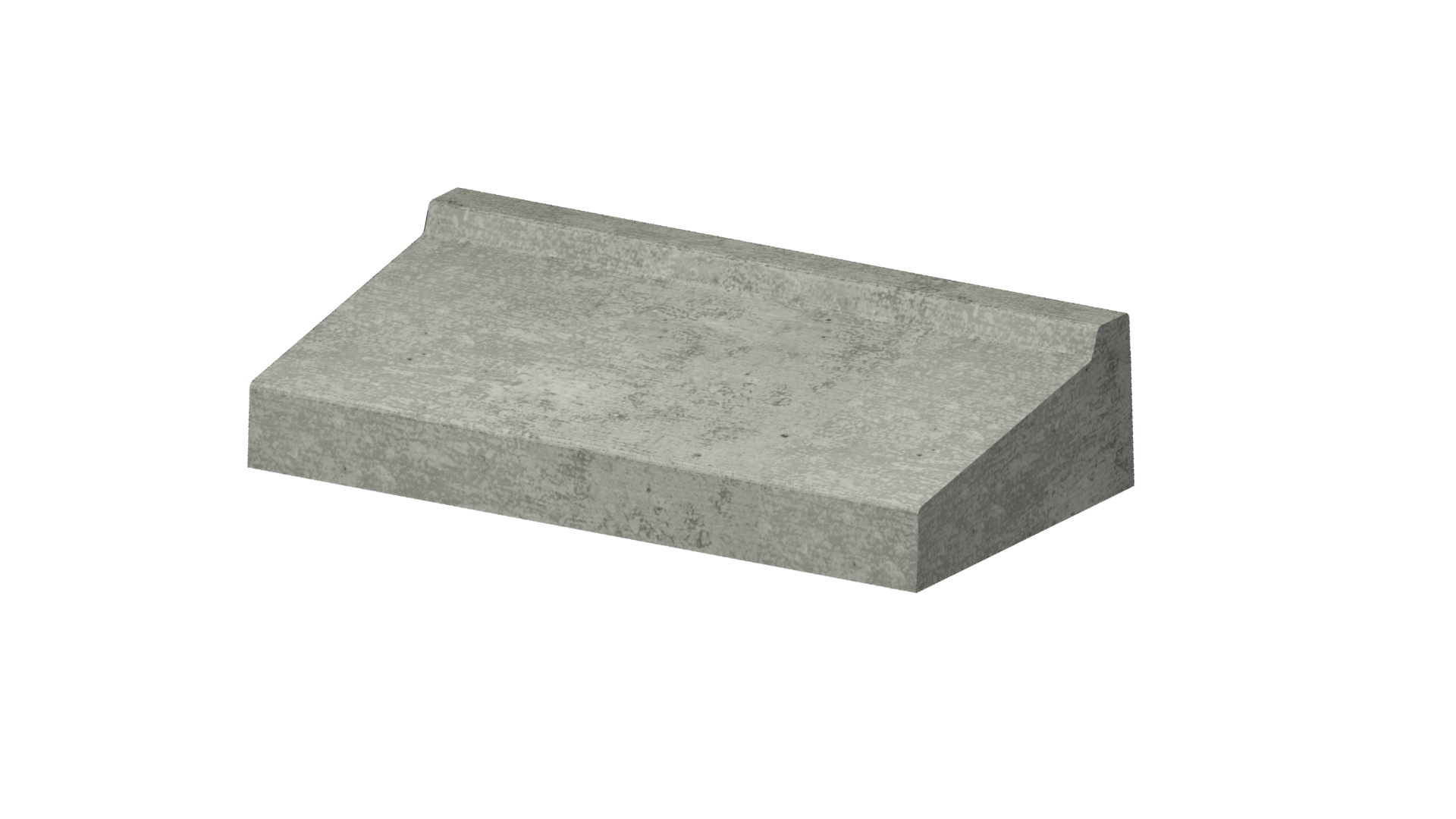

Single Course Sills
| Width (mm) |
Back Height (mm) |
Face Height (mm) |
Max Length (mm) |
|
|---|---|---|---|---|
| Standard Sill | 265 | 75 | 45 | 2700 |
| Sill for Timber Frame | 215 | 75 | 45 | 2100 |
| Garage Sill (Made to order) | 180 | 75 | 45 | 2600 |

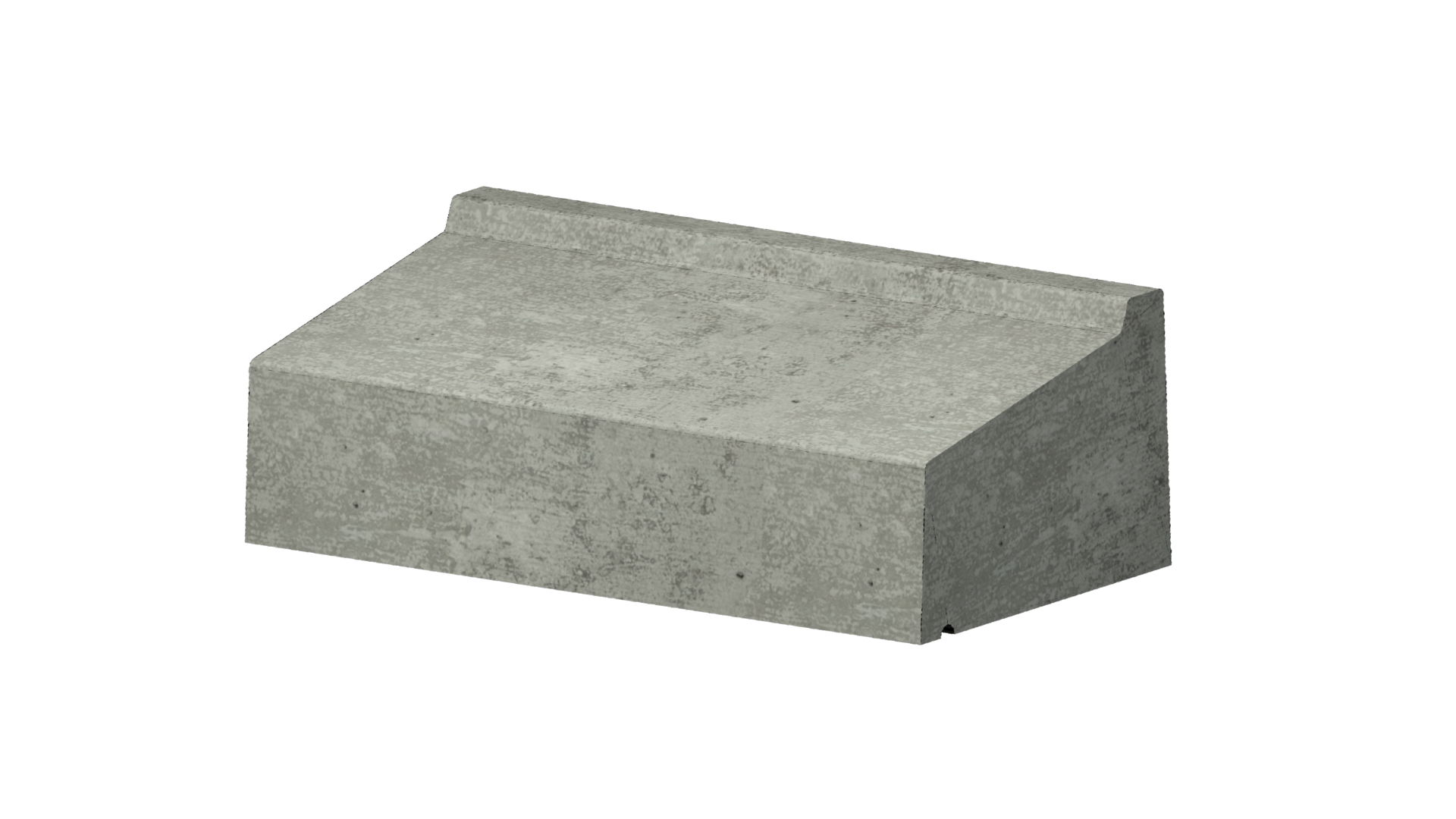

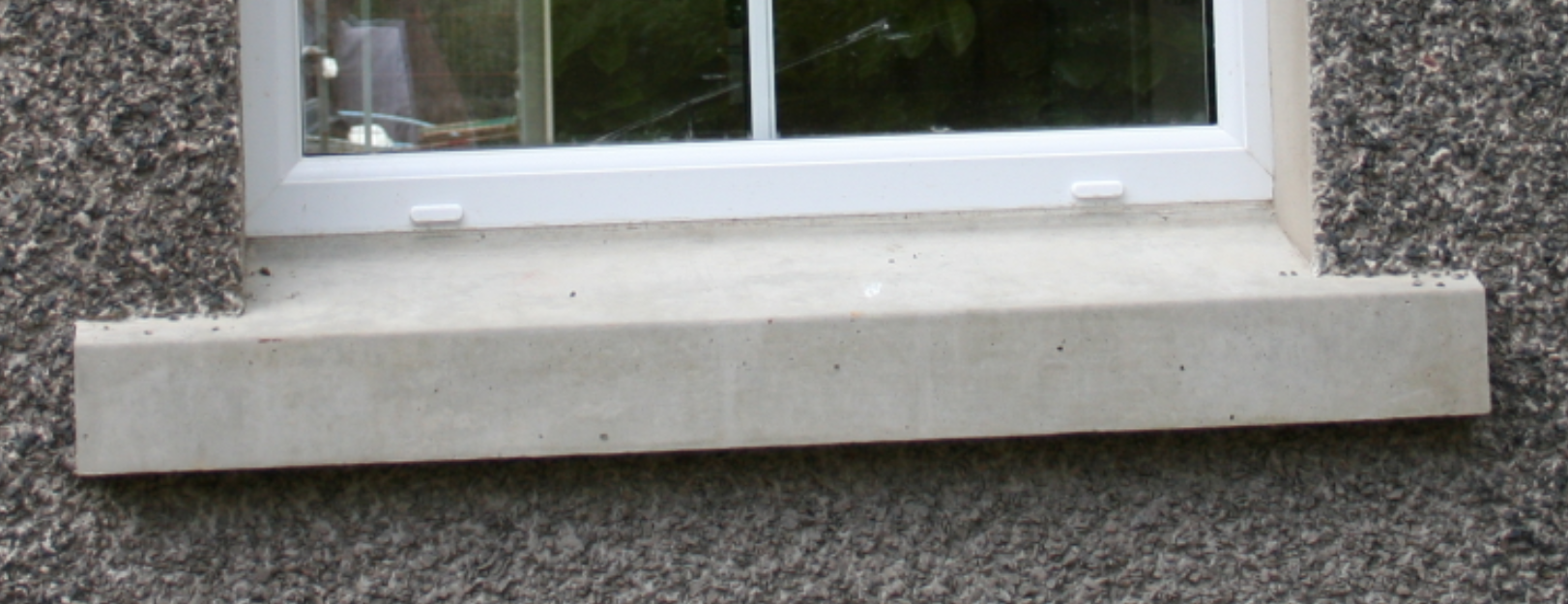

Two Course Sills
| Width (mm) |
Back Height (mm) |
Face Height (mm) |
Max Length (mm) |
|
|---|---|---|---|---|
| Standard Sill | 245 | 140 | 90 | 3200 |
| Sill for Timber Frame | 215 | 140 | 90 | 2900 |
| 12” Sill for Cladding | 305 | 140 | 90 | 3200 |
| 14” Sill for Cladding | 350 | 140 | 90 | 2500 |
| 16” Sill for Cladding | 400 | 150 | 100 | 2400 |
Two Course Stooled Sills
| Width (mm) |
Back Height (mm) |
Face Height (mm) |
Max Length (mm) |
|
|---|---|---|---|---|
| 2 Course Standard Stooled Sill | 245 | 140 | 90 | 2572 |
| 2 Course Stooled Sill for Timber Frame | 245 | 140 | 90 | 2685 |

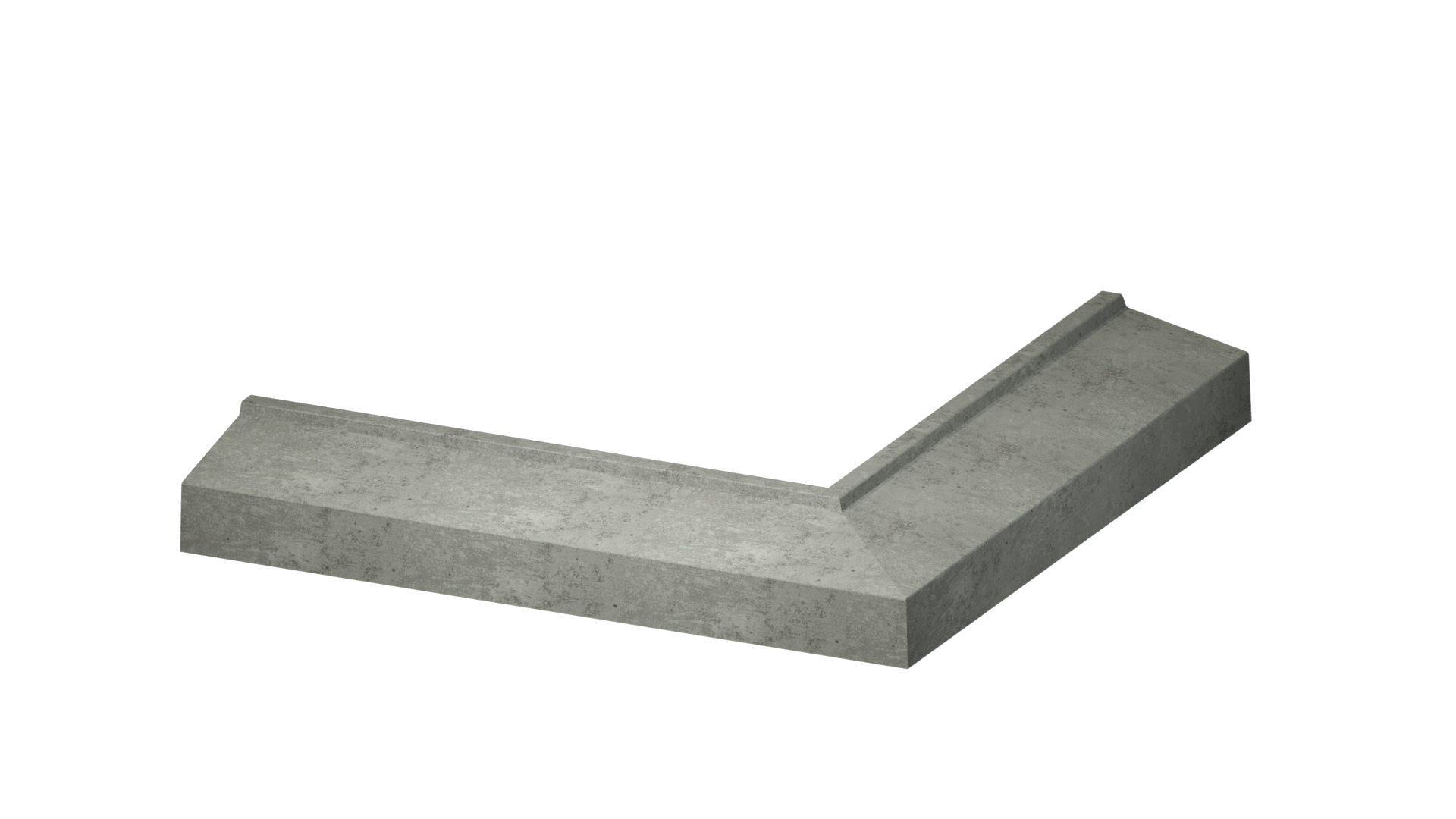

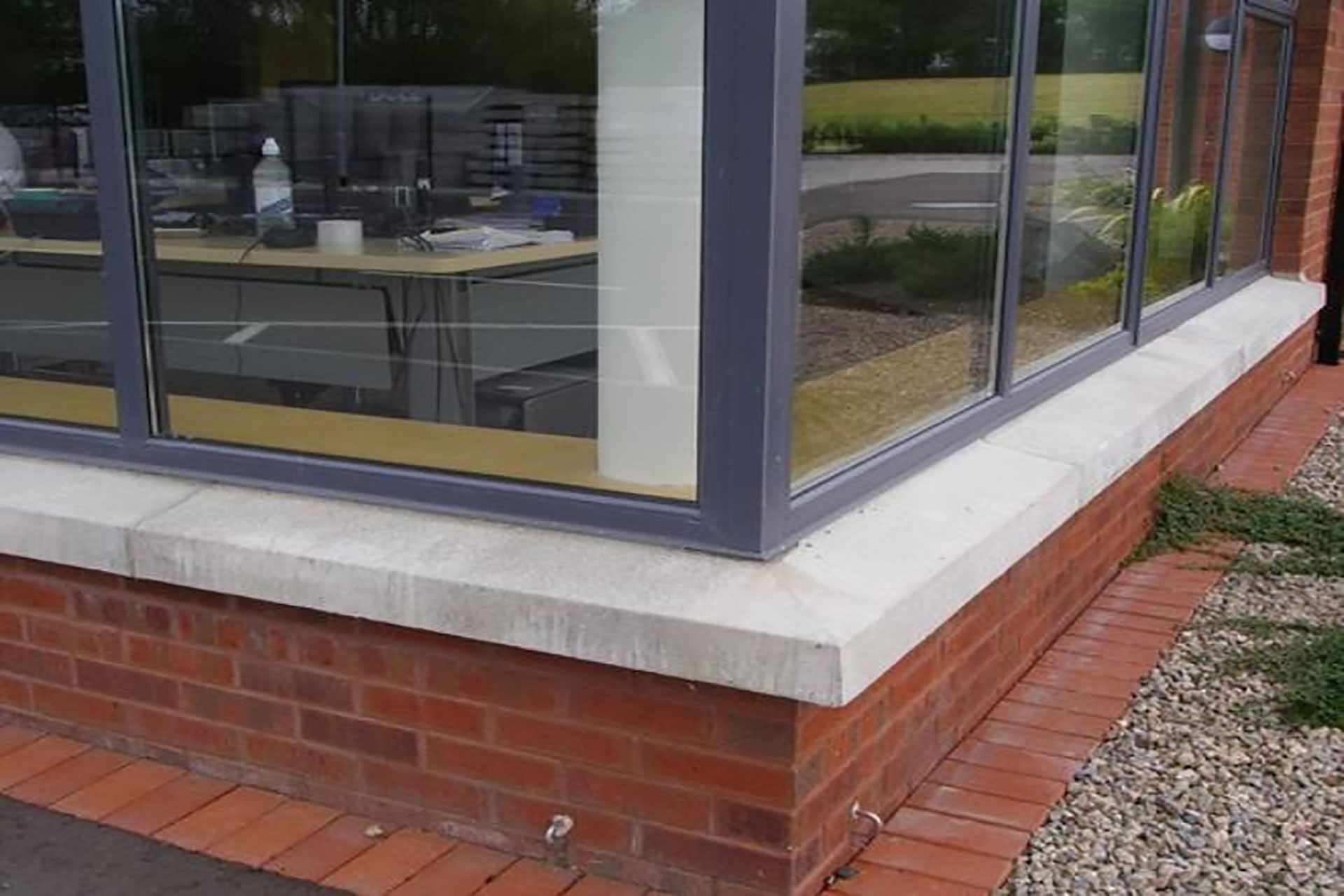

Corner Sill 1m x 1m available in the following varieties (Smaller lengths can be made to order)
| Single Course Corner Sill | Two Course Corner Sill | Two Course 12” Corner Sill For Cladding | Two Course Timber Frame Corner Sill |
|---|

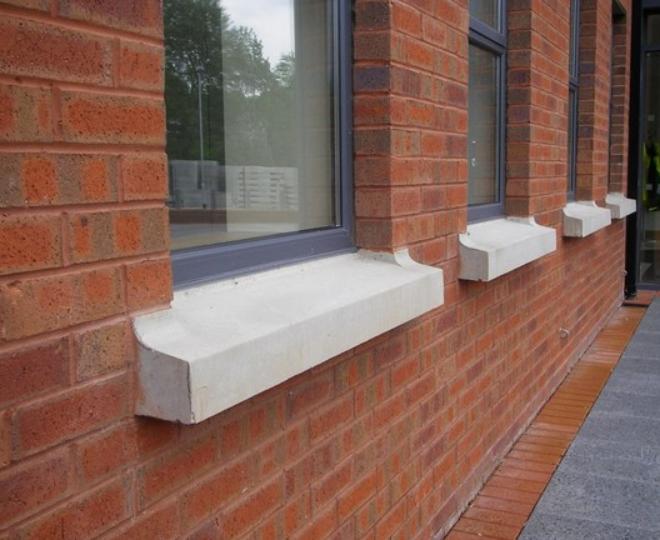

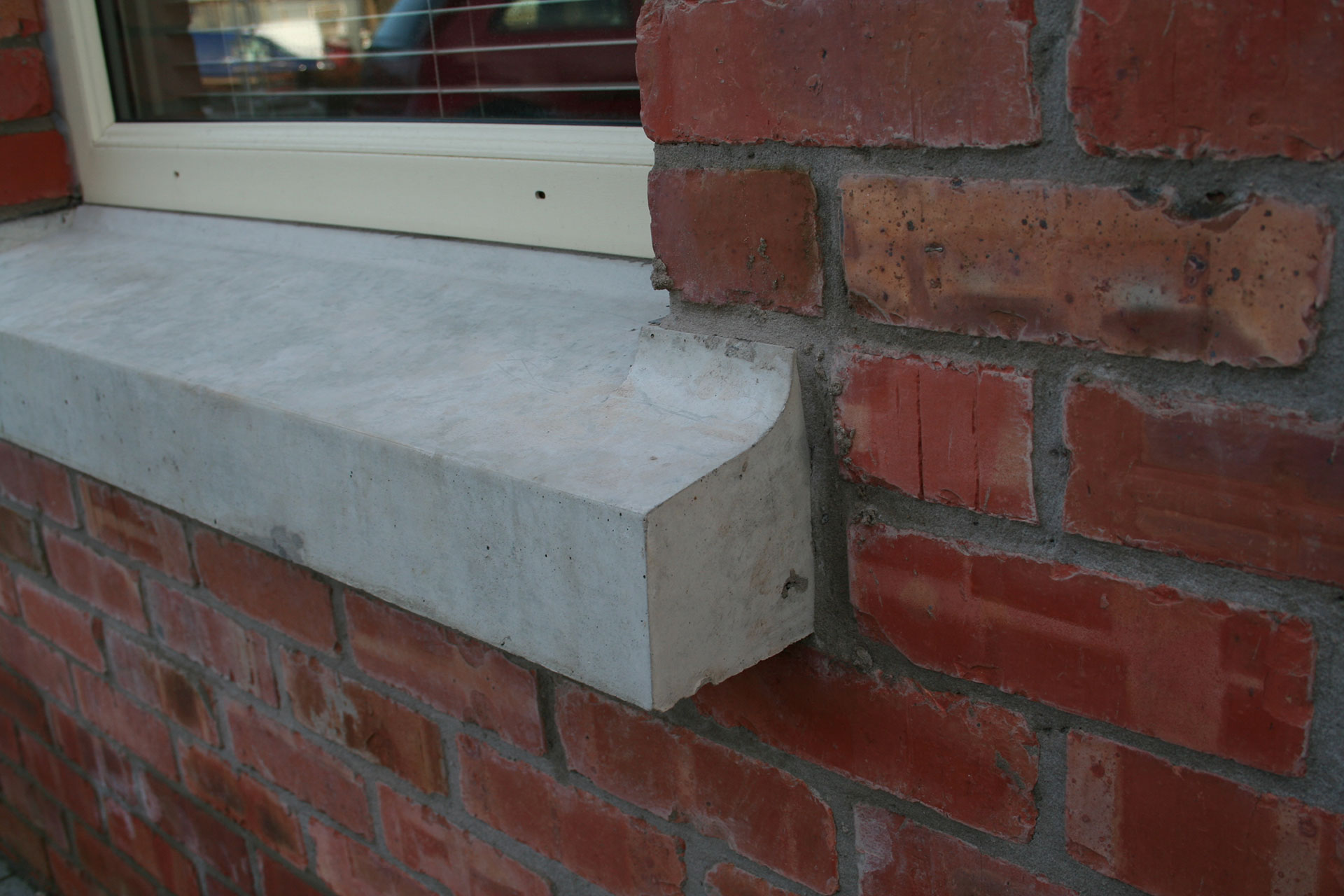

Our Stooled Sills have 100mm stools on either side for brickwork. These can also be made with a stool on the left or right hand side only.
12″, 14” and 16” sills for stonework or cladding are available to order.
Sills can be made to order with exposed aggregate or exposed pebble finish.
Sills can be made at 45 or 60 degrees to create the perfect bay.

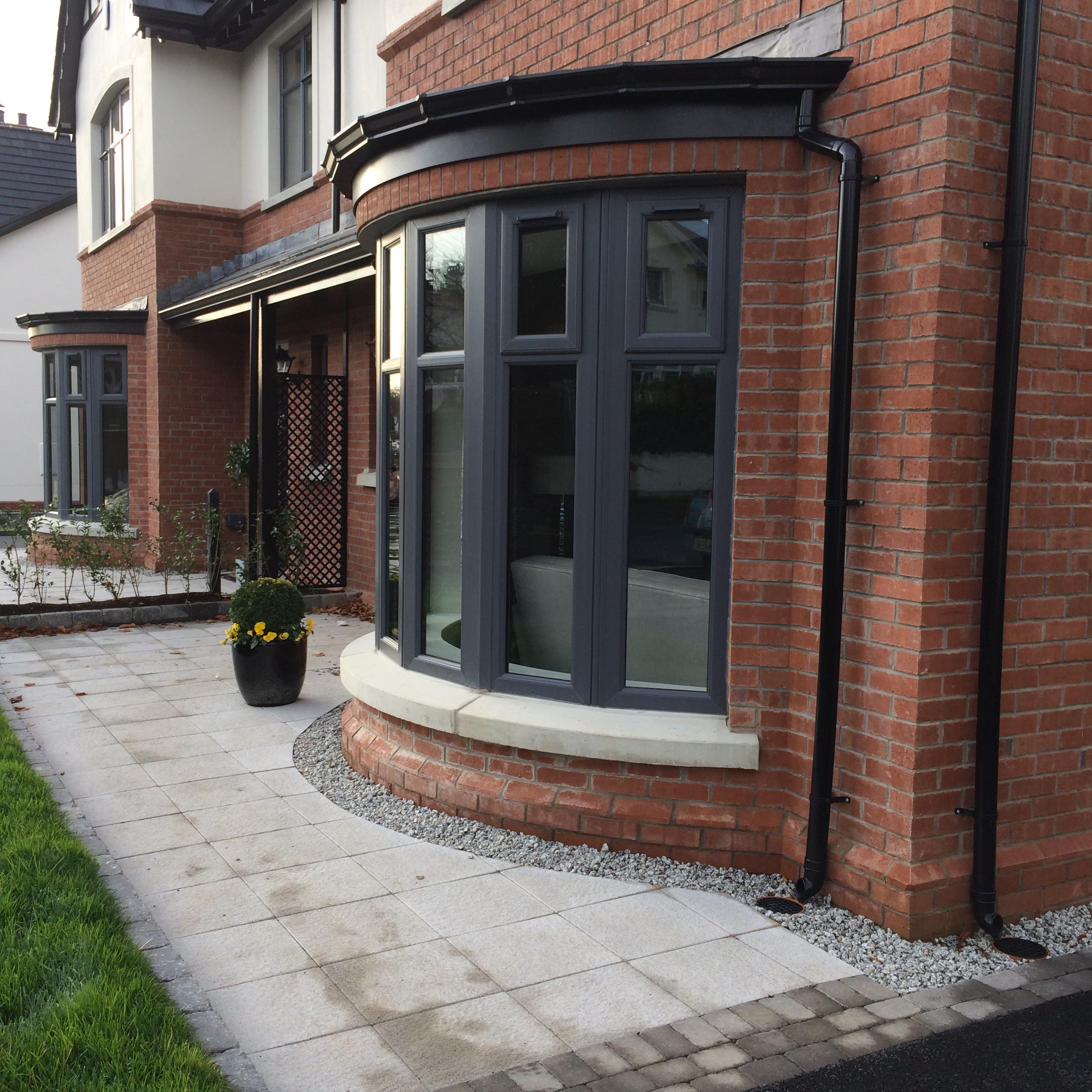

Curved Sills can be made to order.
Our standard sills are 245w to aid with heat saving and improved balance.

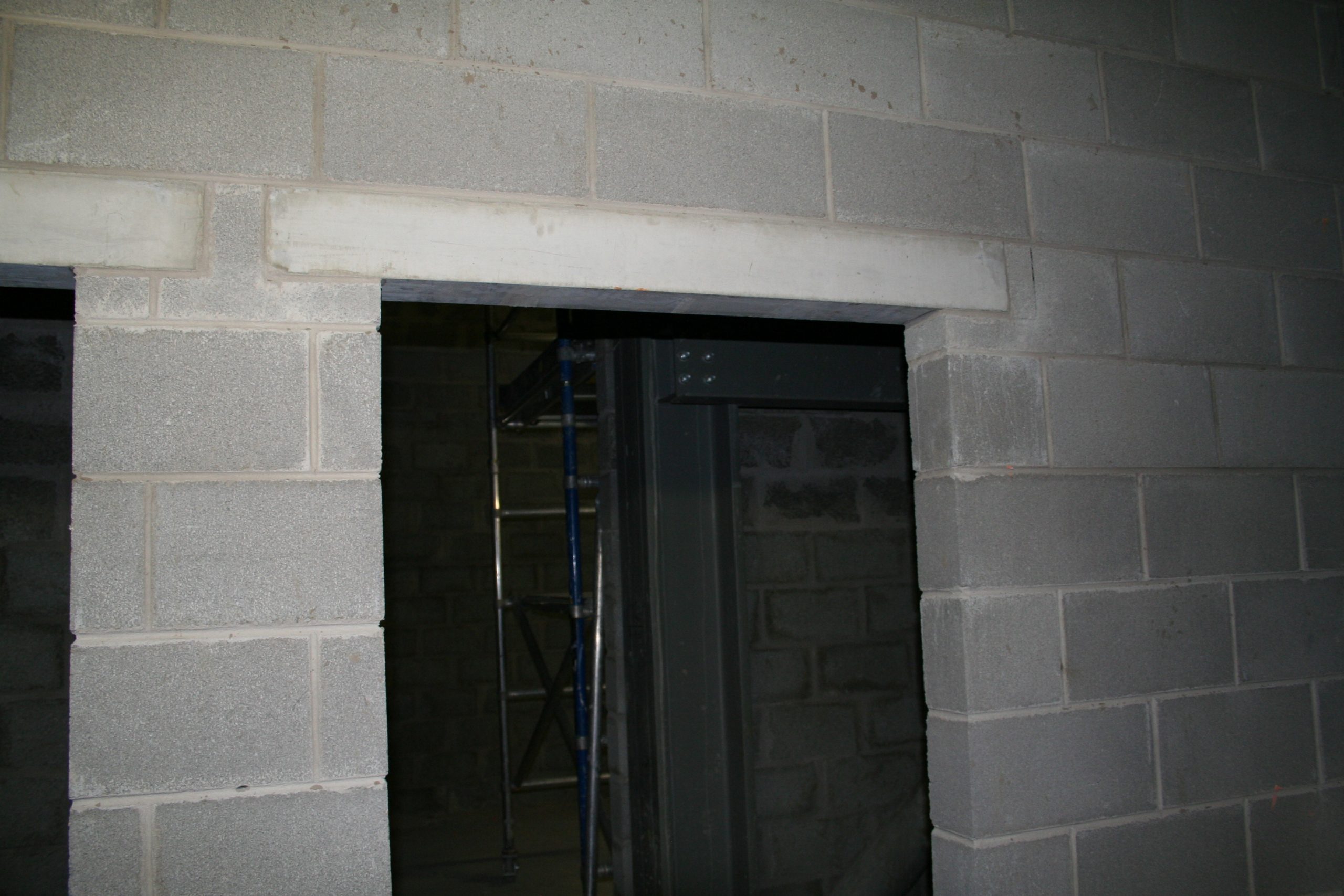

Dry Cast Lintels are ideal for plastering over on blockwork houses.
Prestressed Heads are ideal for leaving exposed on brick/stonework houses.
Prestressed lintels are suitable for multi-floor buildings according to loading tables.

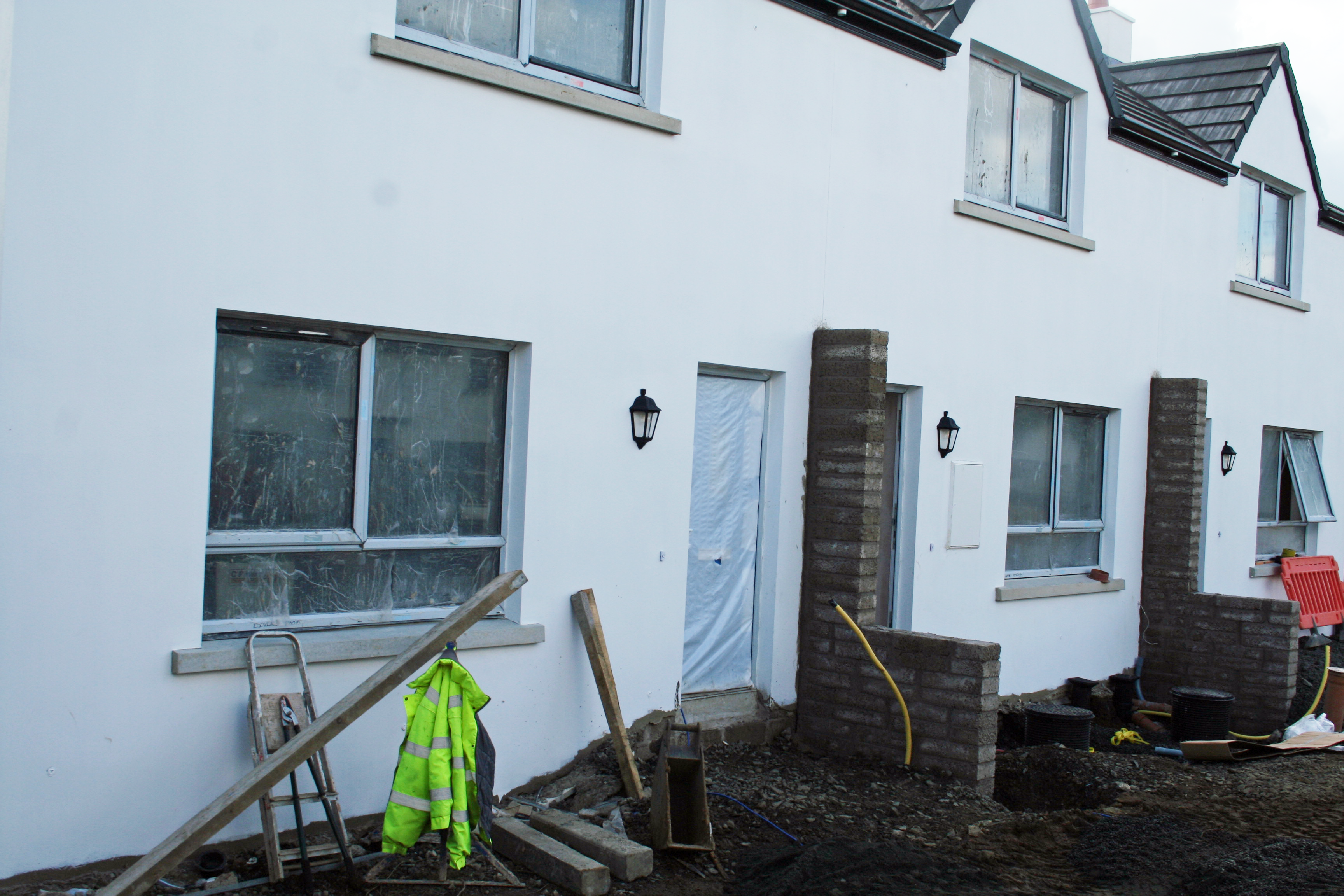

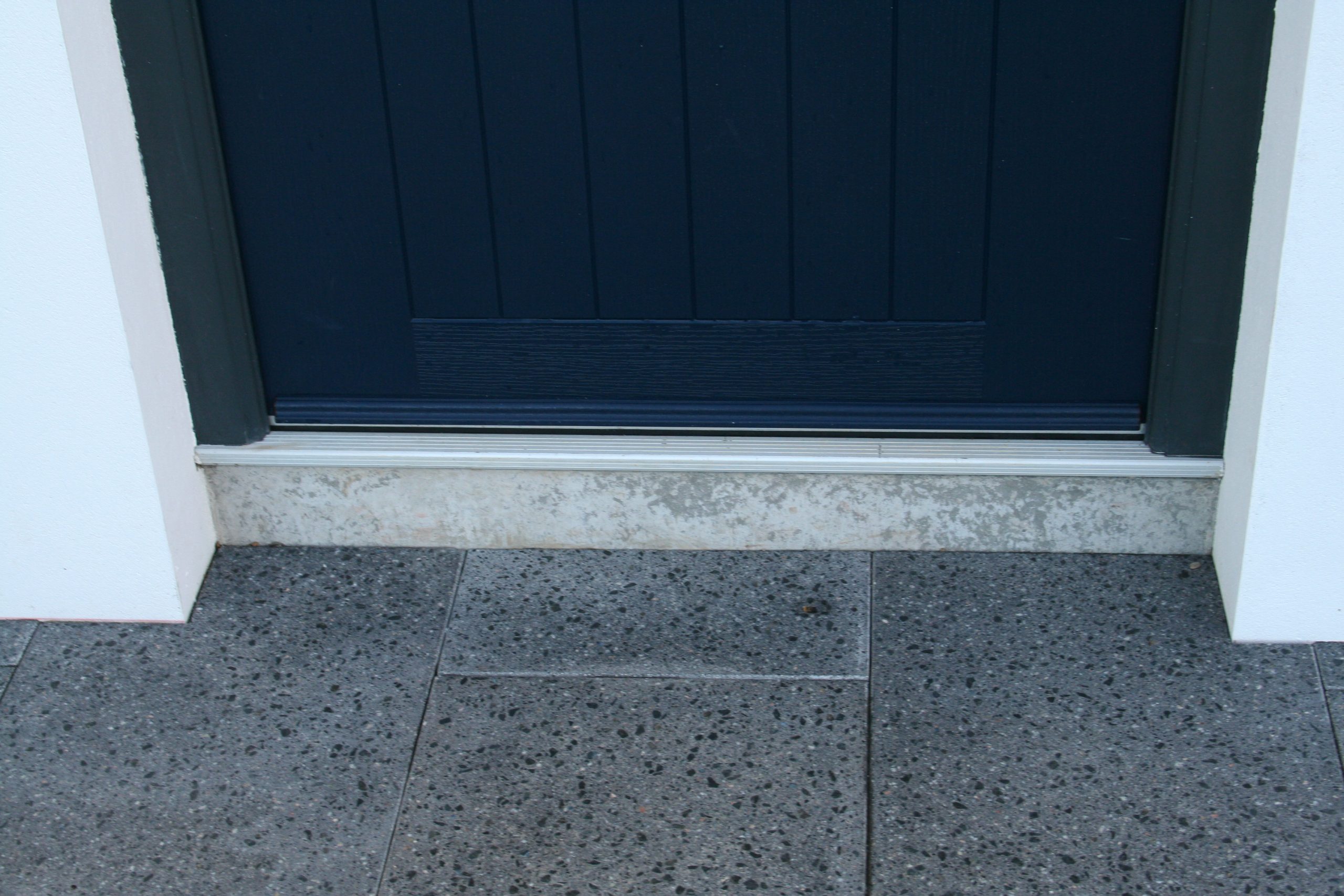

65mm wide x 140mm deep fair faced door blocks are the perfect size to set below your door way to create a threshold. It’s thickness and width ensure a perfect fit with most door frames.
For further information regarding Window Sills please contact a member of our building sales team on 028 2565 2566, Ext 2. Delivery available throughout the UK & Ireland
