Mix Design

Within our portfolio of marine and rail contracts Moore Concrete has utilised various concrete mix designs, enabling us to satisfy client requirements and meet industrial specifications. We operate within the guidelines of BS EN ISO 9001 and maintain a strict schedule of raw material and concrete testing both in-house and by accredited third parties. Recent investment in concrete science research and development in partnership with Queen’s University Belfast has provided us with a range of new mixes, some of which are mentioned in the contract features below.

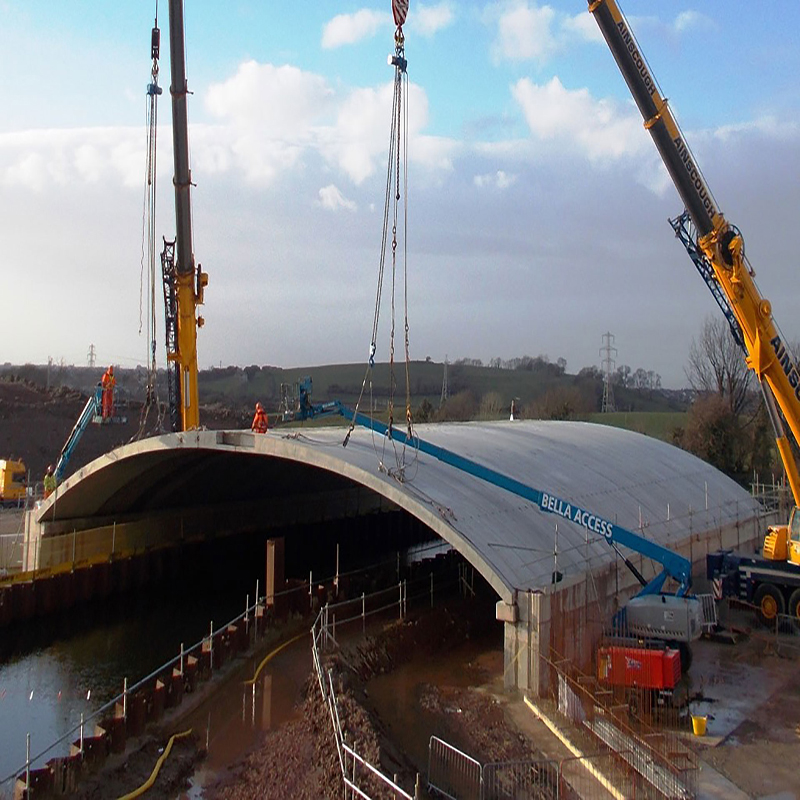

Heysham Bypass, Milestone Canal Bridge

Manufactured with a blend of Ordinary Portland Cement and GGBS, these units boasted an average 28-day compressive strength of 85 N/mm2. They were described by the client, Costain International as having “the best finish they’d seen on a precast bridge.” To reach this standard of quality while reducing carbon content through use of a ‘green’ replacement material demonstrates Moore Concrete’s commitment to world-class precast concrete engineering. Enhanced sulphate resistance as well as increased resistance to chloride ingress ensure that the units have the highest possible durability.

Kirkcaldy Seawalls

This project with Volker Stevin Ltd involved the redevelopment of 1.5 km of Kirkcaldy’s ageing sea defence walls. The ability to resist freeze-thaw degeneration and chemical corrosion is critical to the success of precast concrete in marine environments. Throughout the manufacture of all 1,036 units, methodical tests on the fresh and hardened concrete certified a first-class level of quality and therefore design lifetime conformity to the required XS3 exposure class.

Portishead RNLI Lifeboat Ramp

The construction of a lifeboat ramp for the RNLI required a mix that would meet exposure classes XS3 & XF4 with special cover and corrosion resistance requirements in order to withstand severe conditions once installed. The quality delivered by Moore Concrete was noted in positive feedback from the contractor, Andrew Scott Ltd, who commented, “Your product and service has been excellent and the ramp is of a very high standard.”

Collaboration with Banah UK

As part of Moore Concrete’s drive to incorporate new, innovative materials, we have been in testing with another local company Banah UK Ltd of Coleraine, Co. Antrim.  When we trialed BanahMETA as a Supplementary Cementitious Material in a self-compacting concrete mix, the following benefits were identified:

  • Up to 15% strength gain at 28 days
  • Lower embodied carbon than with Portland Cement
  • Attractive warm, natural colours

We also know that the use of BanahMETA can provide the following:

  • Increased resistance to Chloride Ingress (salt)
  • Increased resistance to Abrasion & Scouring

We commend Banah for driving innovation within the Concrete industry and look forward to future collaboration.

Want More Information?

For further information regarding Concrete Mix please contact a member of our civils sales team on 028 2565 2566, Ext 3.
