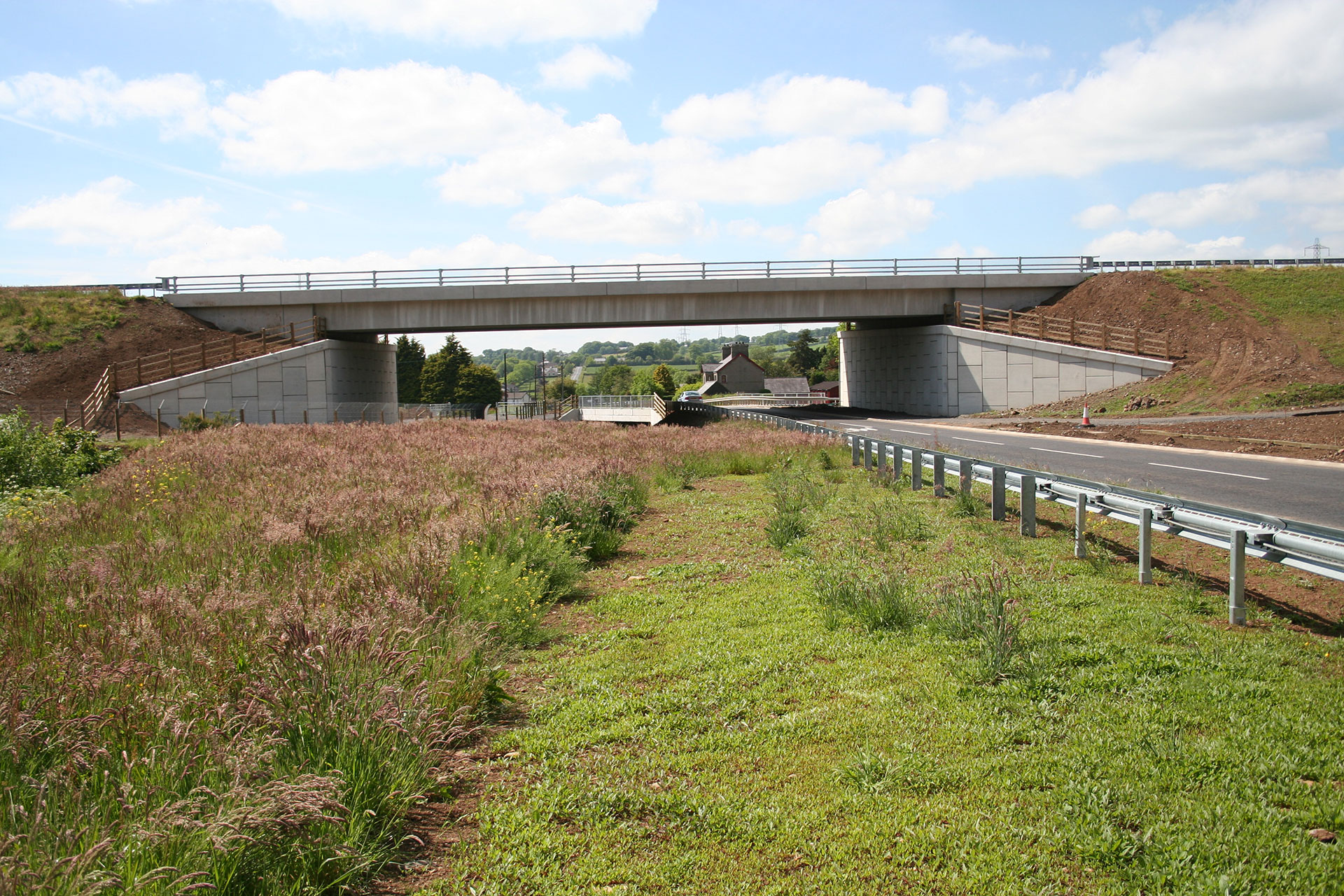

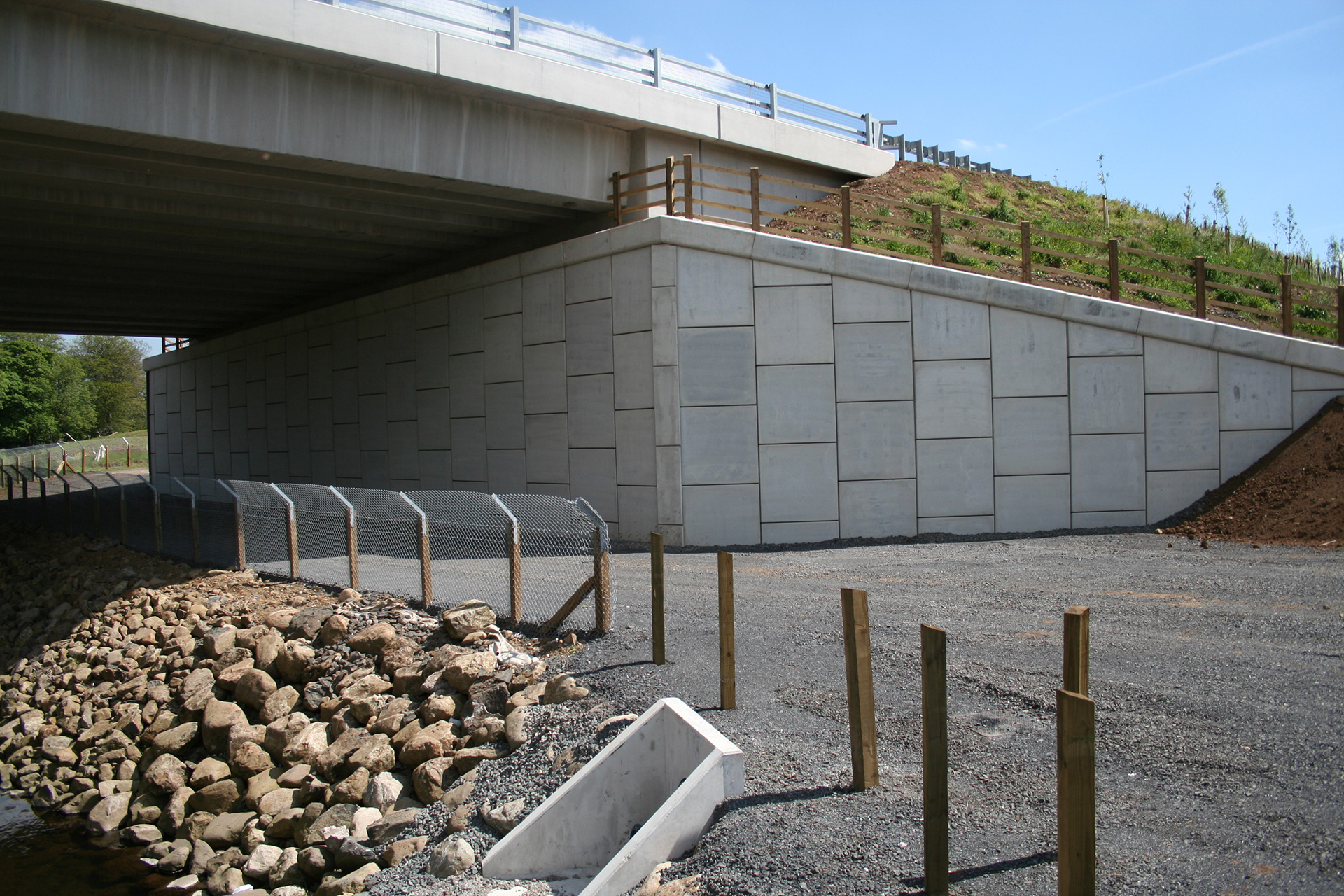

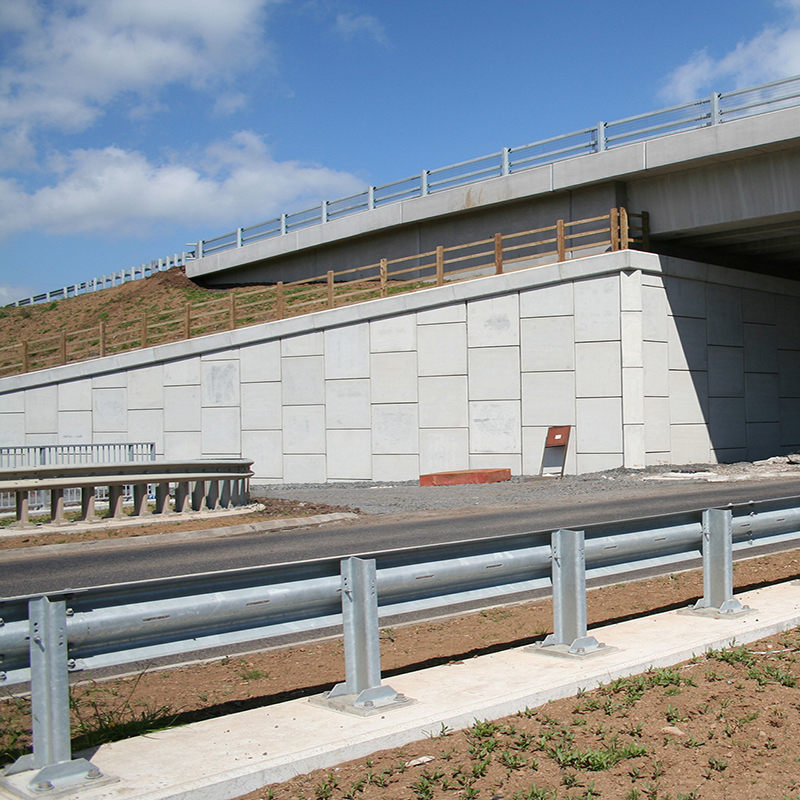

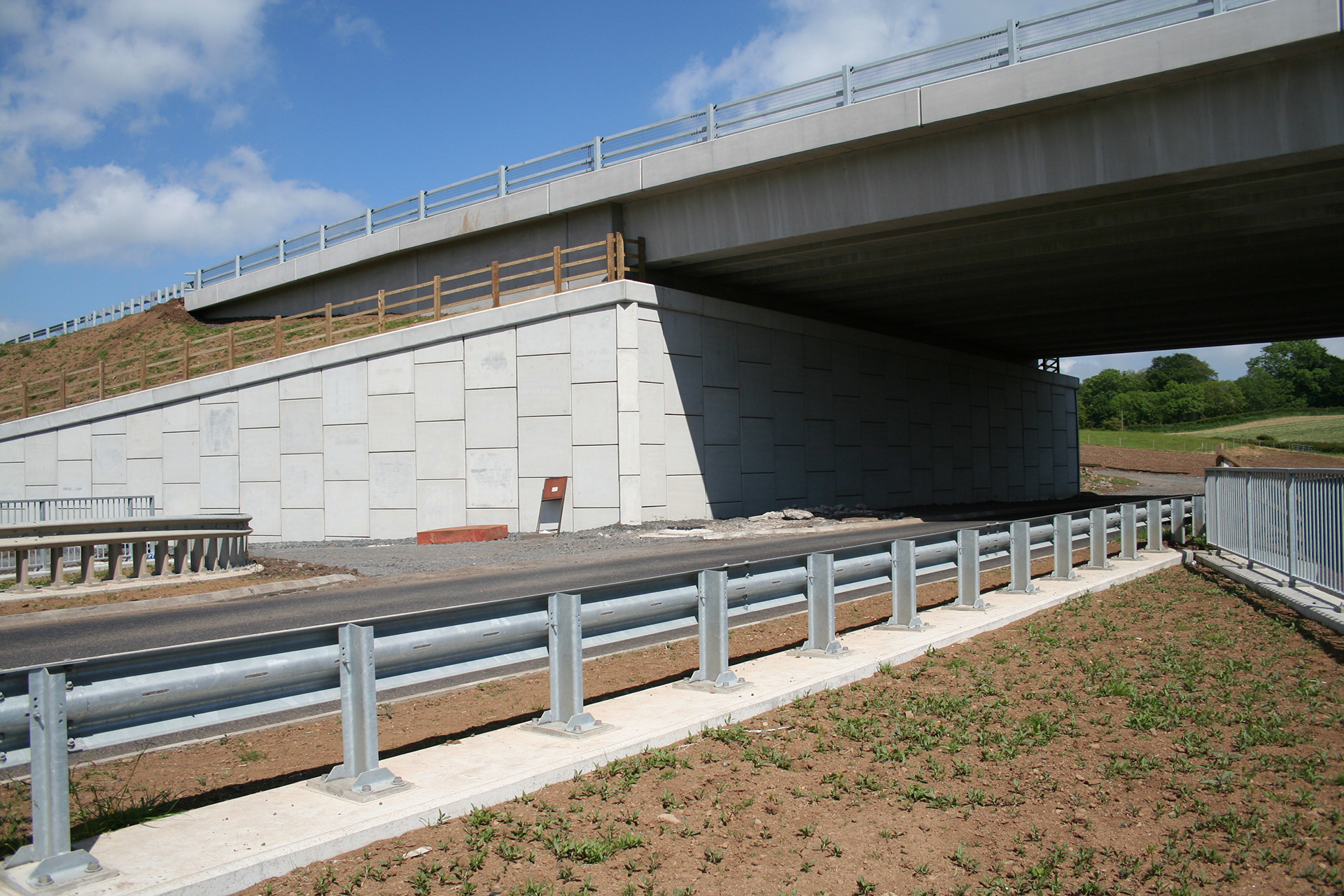

Earth retaining MacRes panels are ideal for the construction of vertical walls subject to high loads or where architectural requirements demand a specific finish to the exposed wall face. Moore concrete have cast the MacRes®, precast steel reinforced concrete facing panels in association with Maccaferri over the last number of years.
The Maccaferri MacRes® system has been developed to create vertical concrete faced soil reinforcement structures. The system consists of a combination of geostrip soil reinforcement connected to the large concrete facing panels.

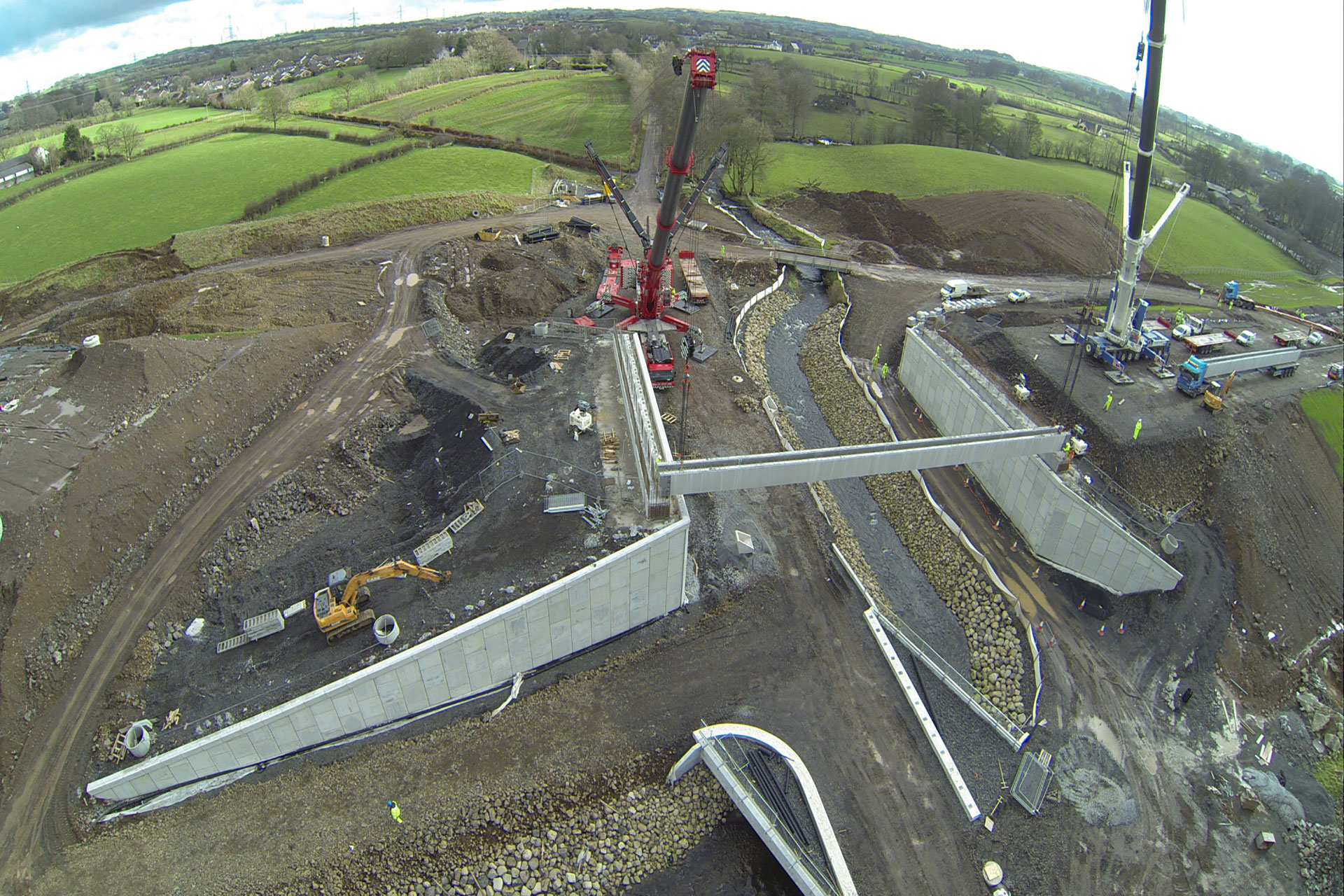

The ParaWeb® polymer geostrip linear reinforcement is placed between compacted layers of structural backfill, and is intimately connected to the precast concrete fascia panels. The fascia panels are erected in progressive layers as the height of the reinforced compacted back fill rises behind.
For further information regarding Earth Retaining MacRes Panels Please contact a member of our civil Sales Team on
028 2565 2566, Ext 3
Can create a vertical faced structure capable of resisting high loads
Concrete panels are designed and detailed according to the specific requirements of the project
Ease of panel specific face finishes depending on the aesthetic demands of the client
MacRes ® Panels are CE Marked – Manufactured to EN 1525
High quality and durable solution
Cost effective solution
Simplicity and speed of implementation
Using Geogrid soil reinforcement maximises the opportunity to reuse site-won materials as backfill saves on the export and import of materials from site and reducing polluting truck movements
Geogrid provides the capability to support Extreme Loads and Mega Structures, such as the 74m high Terramesh and Paralink reinforced soil wall, supporting an airport runway in North Eastern India; one of the tallest such walls in the world
Working with a globally renowned specialist in Maccaferri committed to continuous innovation, ensures solutions are at the forefront of technological advancements
Maccaferri offer a range of expert engineered solutions built up over 100 years of solving retaining structure problems
Earth Retaining MacRes Panels Dimensions
Moore Concrete are proud to be one of the UK’s leading manufacturers of high quality precast building products. We manufacture a range of Earth Retaining Panels. Talk to our team about about your bespoke requirements.
Moore Concrete will deliver your products to site.
For further information regarding MacRes® please contact a member of our civils sales team on 028 2565 2566, Ext 3
Our precast retaining units can be delivered to any part of the UK and Ireland.
