Moore Concrete manufacture precast concrete Headwalls for pipeline outfalls discharging into open watercourse including the sea, rivers, culverts and pools. Our range includes 2 distinctive product options:

• The Flowsure Brand proving standard Headwalls as part of our building ground works range.
• Bespoke Headwalls with earth retaining properties, designed by our Civil’s Team.

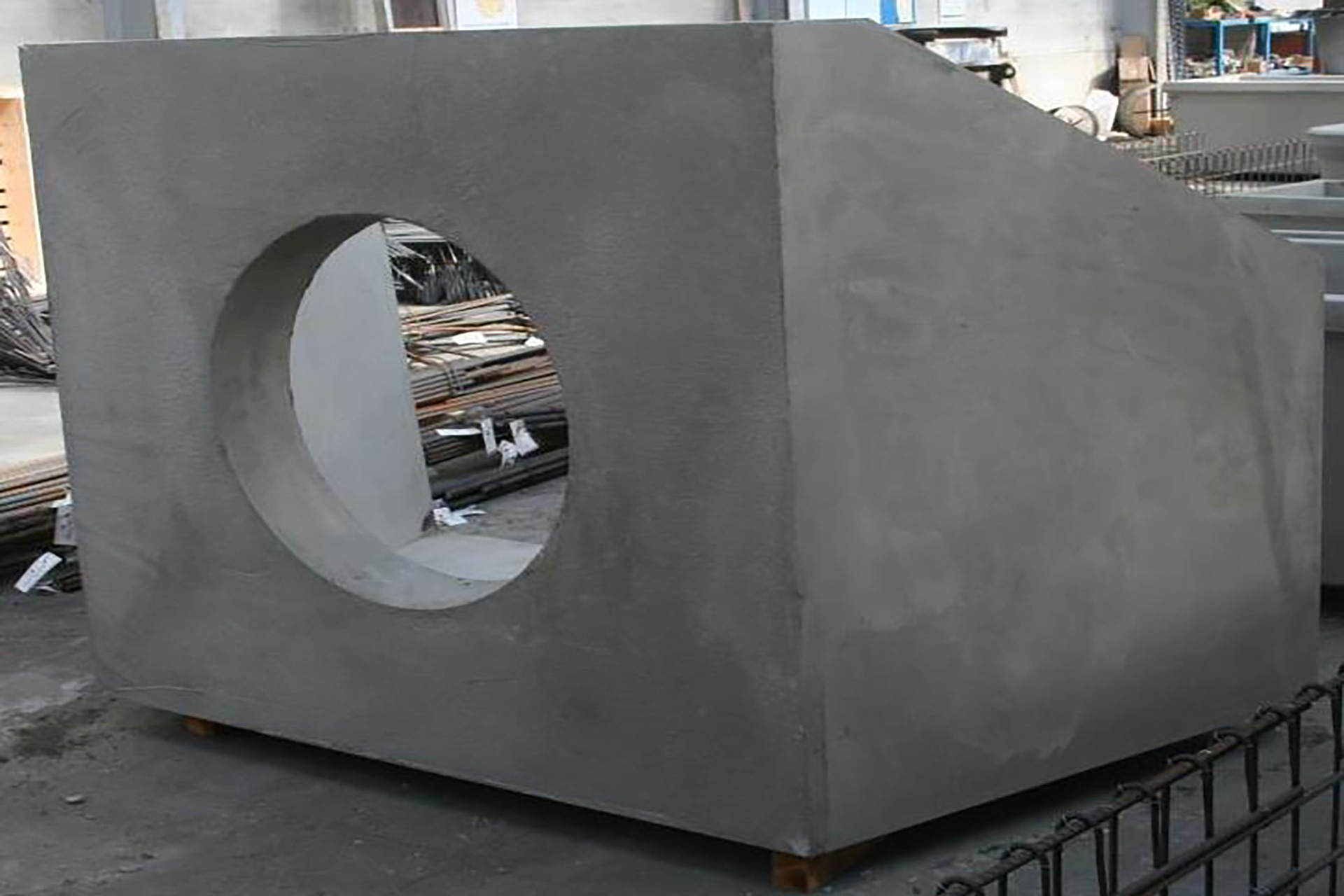

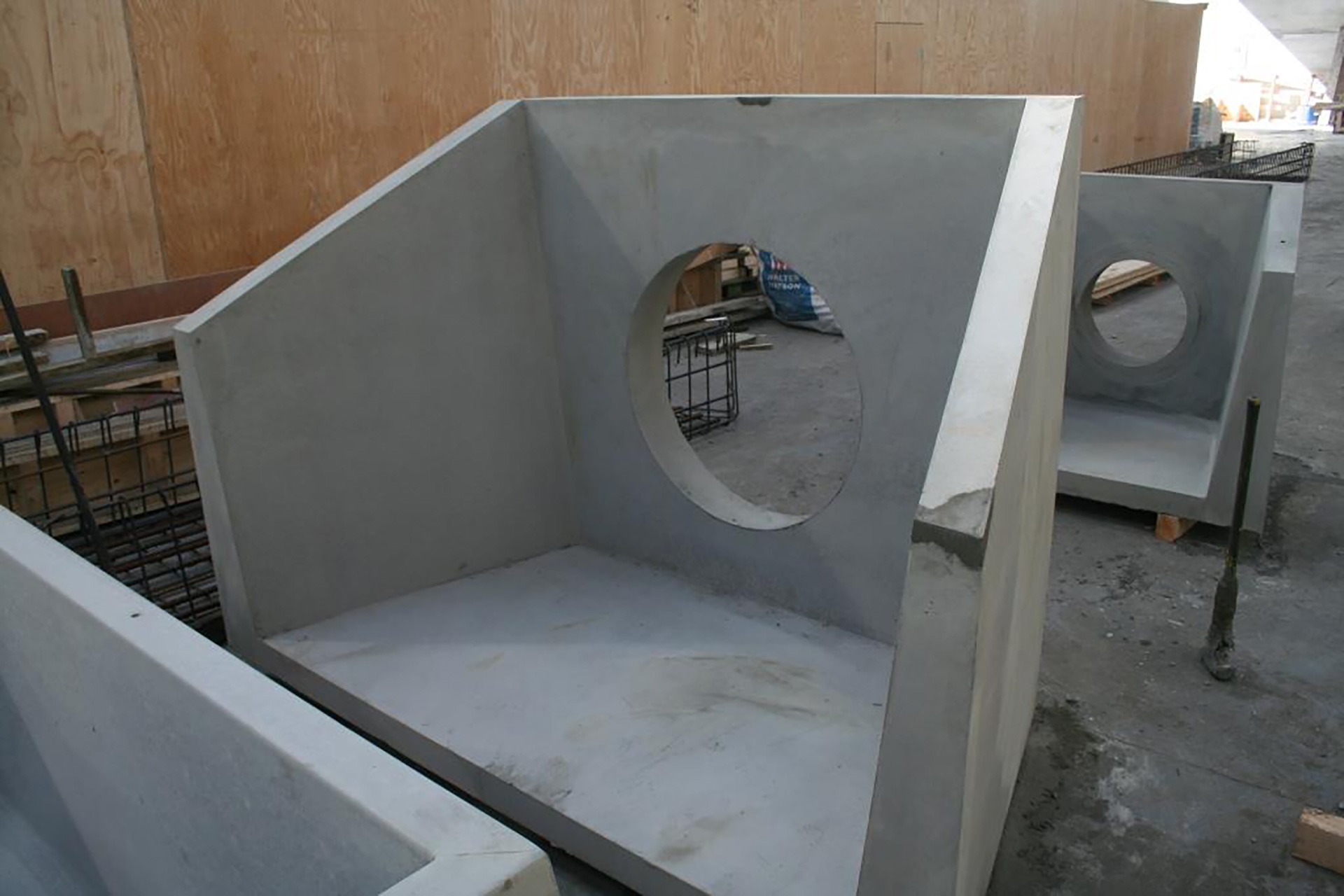

Flowsure Standard Headwalls

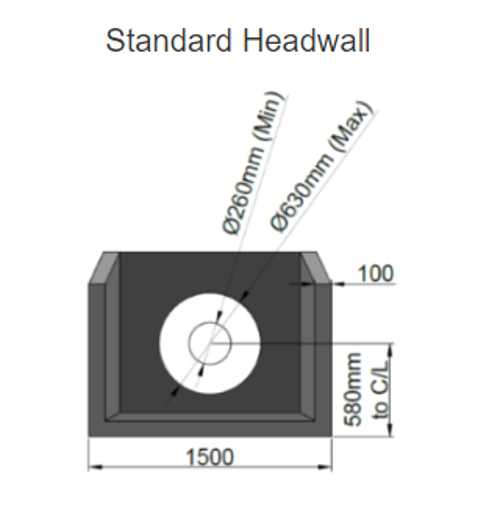

Small Flowsure Standard Headwalls
The small headwall is 1.5m x 1.15m and weighs approximately 1.32 tons.  Hole sizes range from 260mm – 630mm.

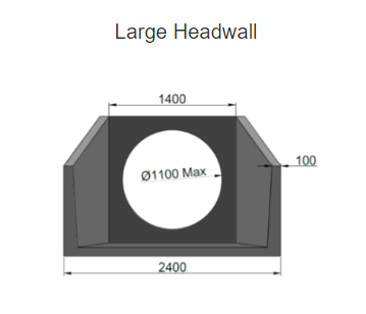

Large Flowsure Standard Headwalls
The large headwall is 2.4m x 1.55m and weighs approximately 2.15 tons. The maximum hole size with this unit is 1100mm.

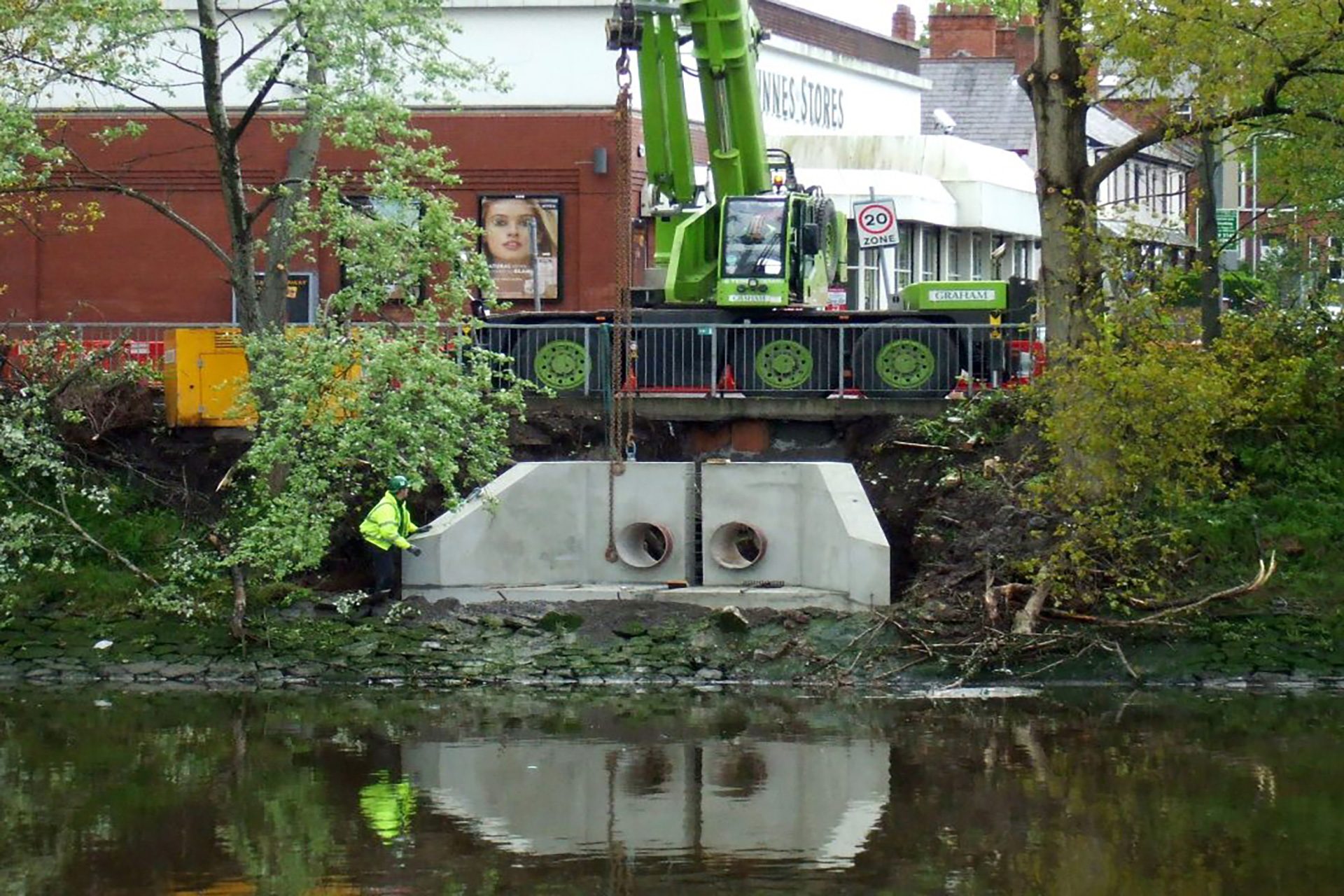

Bespoke Headwalls

Our civils team can design a completely bespoke customised Headwall for customers looking for a solution that can not be provided from the standardised Flowsure pipeout fall range.

Concrete Headwalls Key Benefits

• Rapid installation, headwalls can be quickly positioned, especially important in situations of variable flow, for example the time constraints of tidal flows.
• Anti-erosion structure
• Installation provides immediate stability at the point of outfall.
• Helps minimise erosion at the point of discharge into open water course
• Durable, low maintenance
• Cost effective
• Hole size can be made to suit customer requirements
• No need for shuttering or on site concrete
• Manufactured in high quality factory controlled environment

Headwalls Applications

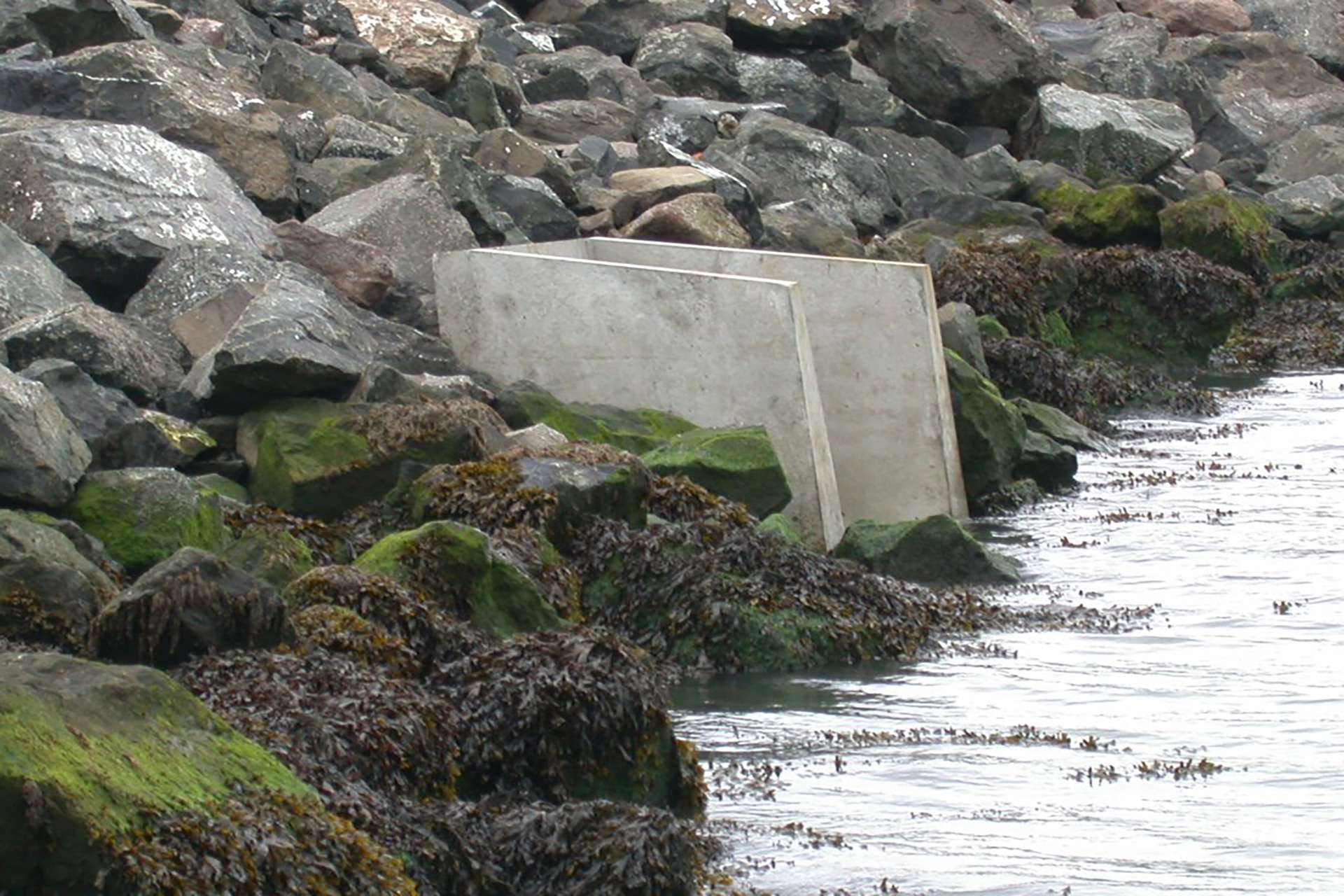

Precast concrete Headwalls are designed for pipeline outfalls discharging into open watercourse including the sea, rivers, culverts and pools.

For further information on our range below

Flowsure Standard Headwall Range please contact a member of our building sales team on 028 2565 2566, Ext 2,
or Download our Flowsure Brochure.

Bespoke Headwall Design solutions please contact a member of our civils sales team on 028 2565 2566, Ext 3.
Click here to download a copy of a bespoke Moore Concrete Large Headwall Design.
