Wall Copings and Pillar Caps

Wall Copings & Pillar Caps

Our Wall Copings & Pillar caps provide a stylish finish to all types of wall design. This high-quality product deflects rainwater away from the face of the wall, preventing discolouration.

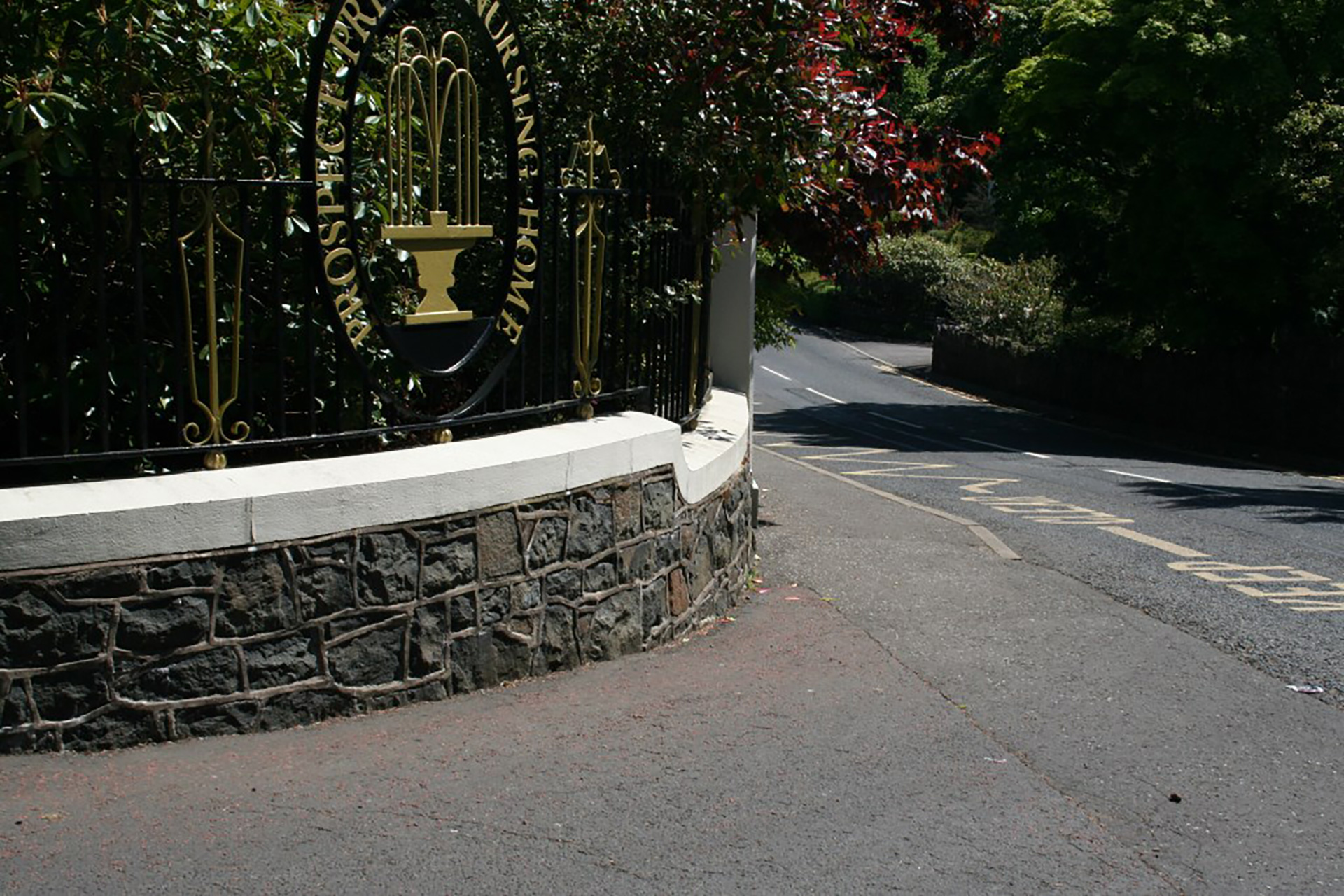

Bespoke copings can be made to customer requirements. Bespoke product examples include chamfered edged and humpback. Please contact the building team for special requests.

We produce both standard and bespoke Pillar Caps also known as Pillar Copings in a wide range of design styles, finishes and sizes to compliment our extensive range of wall copings.

For further information regarding Wall Copings and Pillar Caps Please contact a member of our building Sales Team on 028 2565 2566, Ext 2
Make an Enquiry

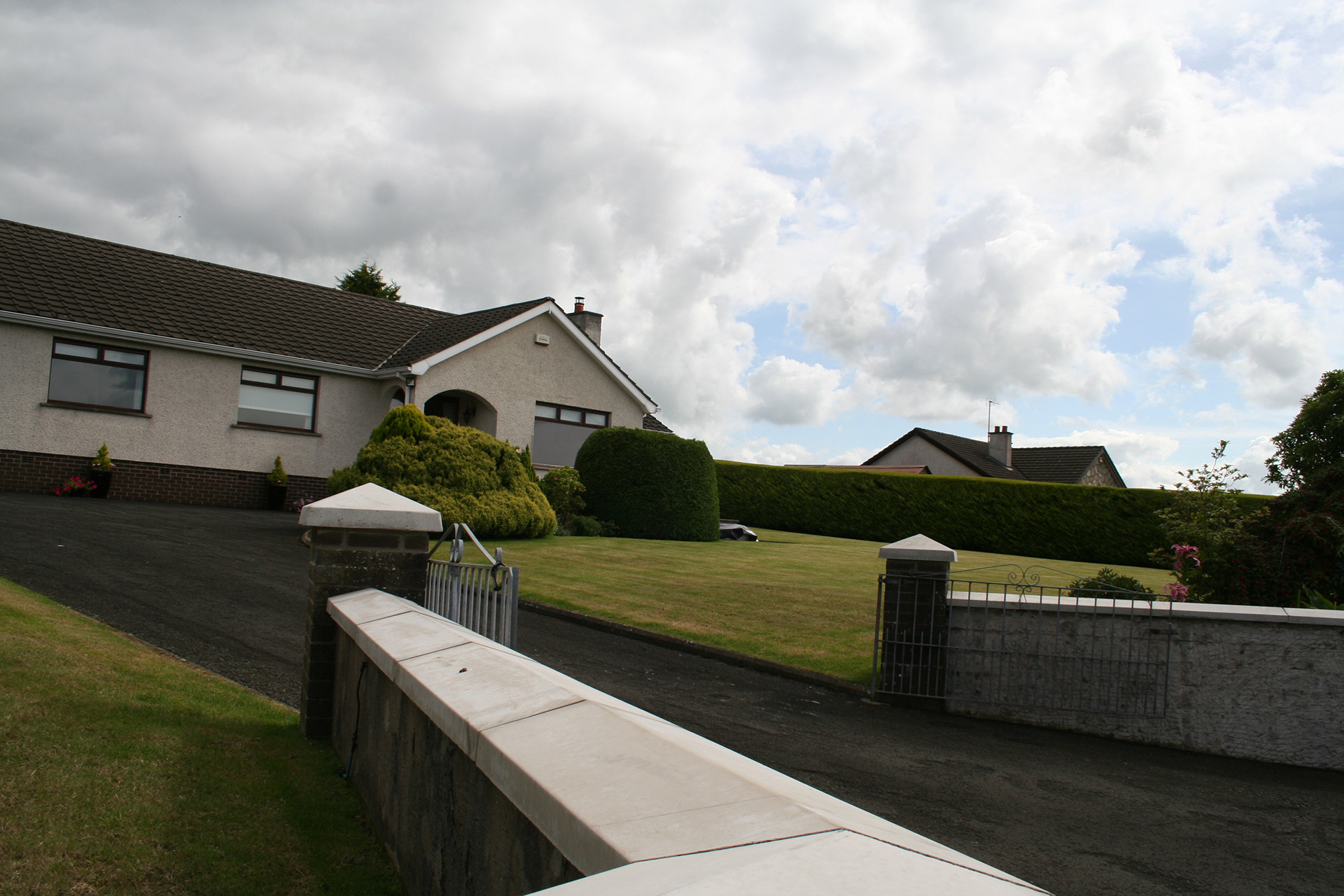

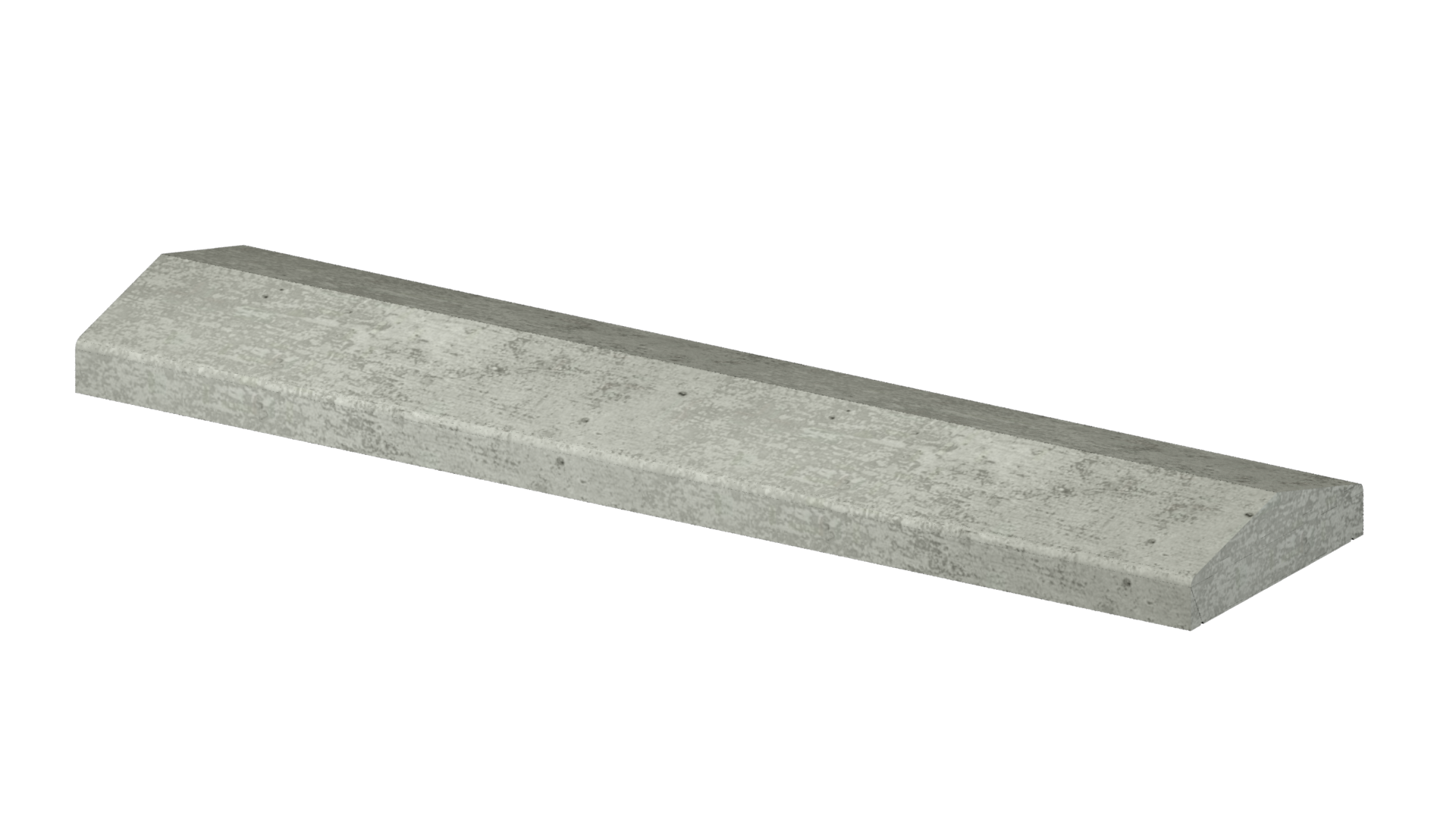

Saddleback Copings

Size Width
(mm)
Highest Point
(mm)
Side Height
(mm)
Length
(mm)
6" 150 44 25 600
7" 180 65 44 915
9” 230 70 51 915
12” 305 76 51 915
13” 350 102 51 915
16” 405 102 64 1000
21” 520 117 75 1000
24” 600 130 100 600

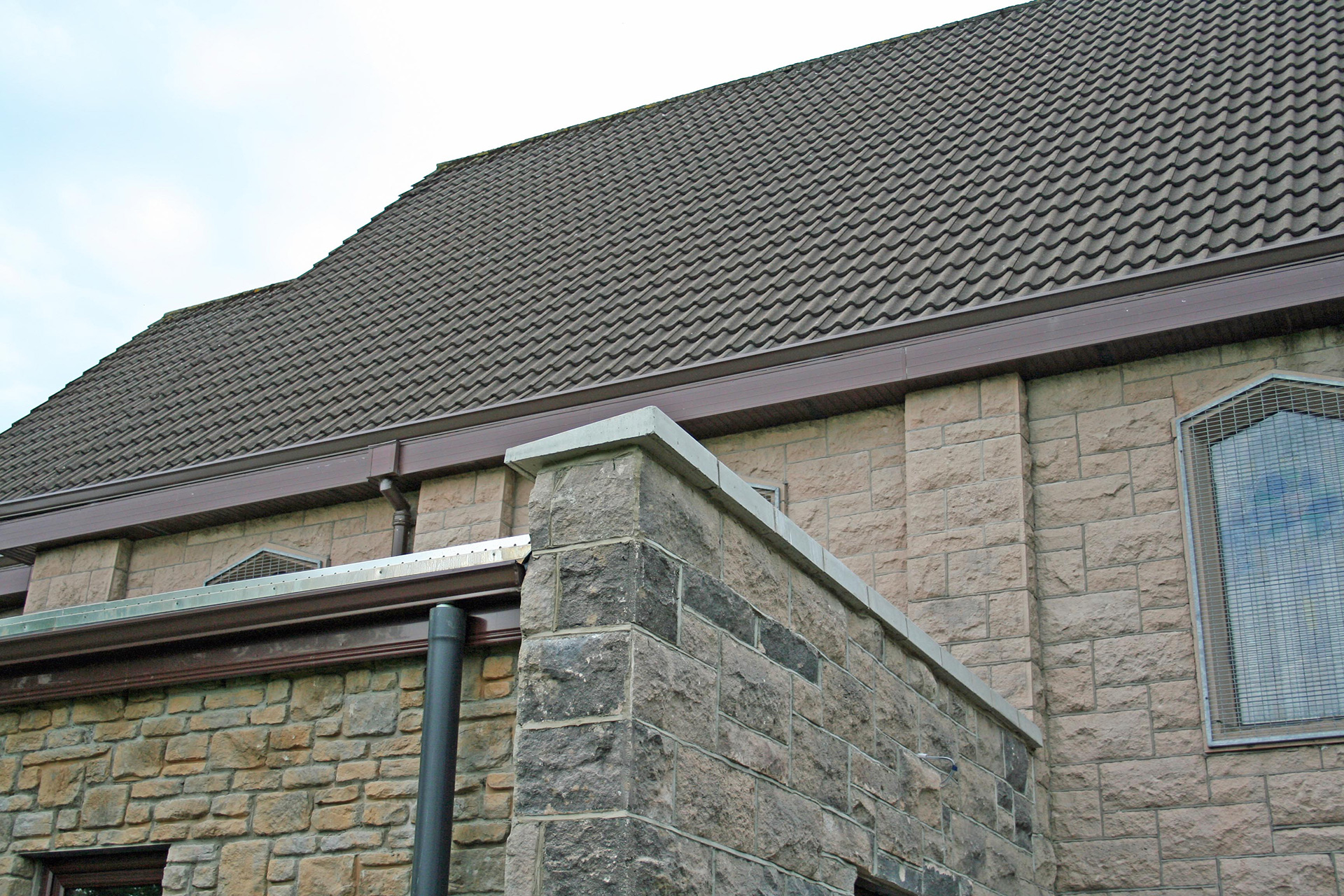

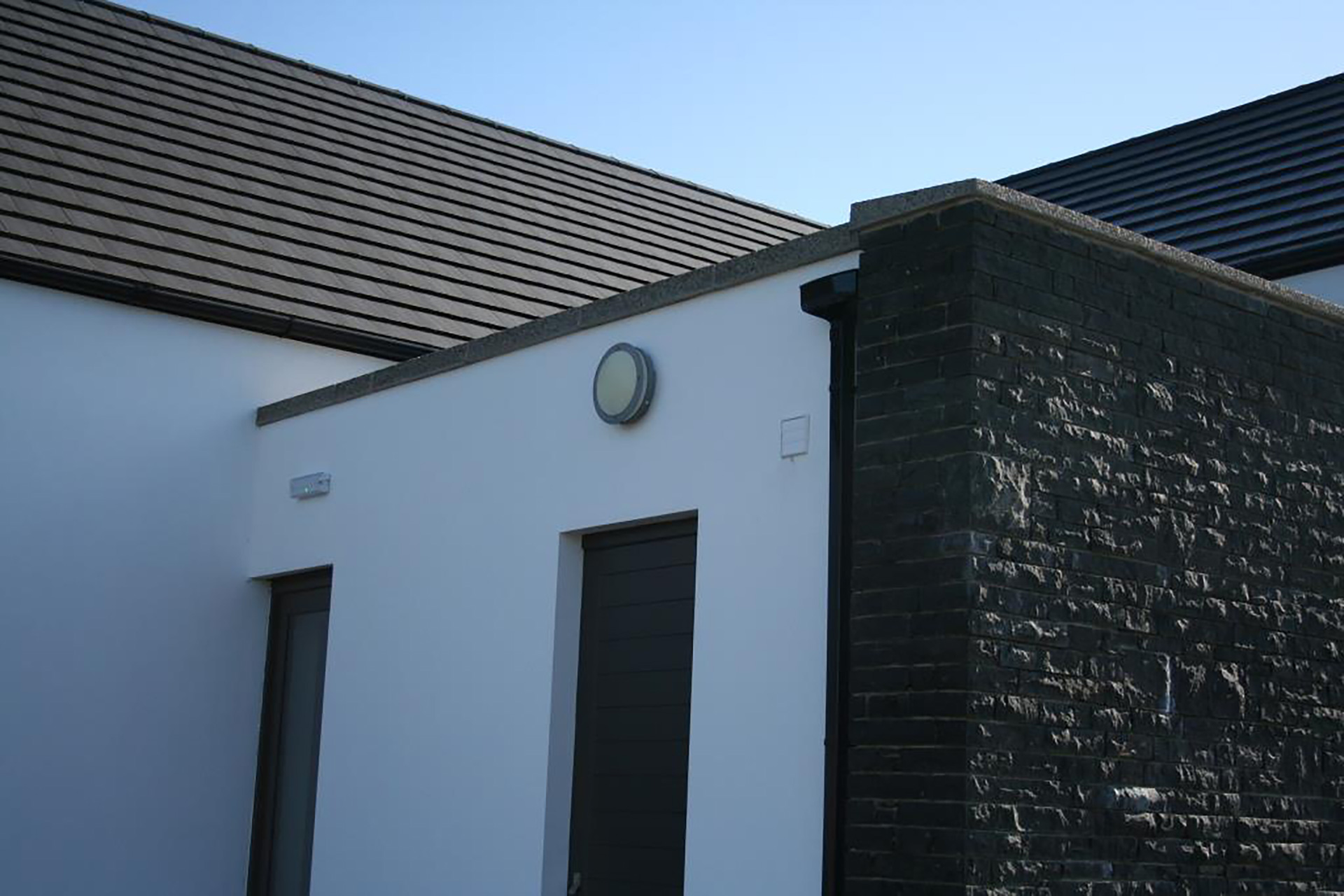

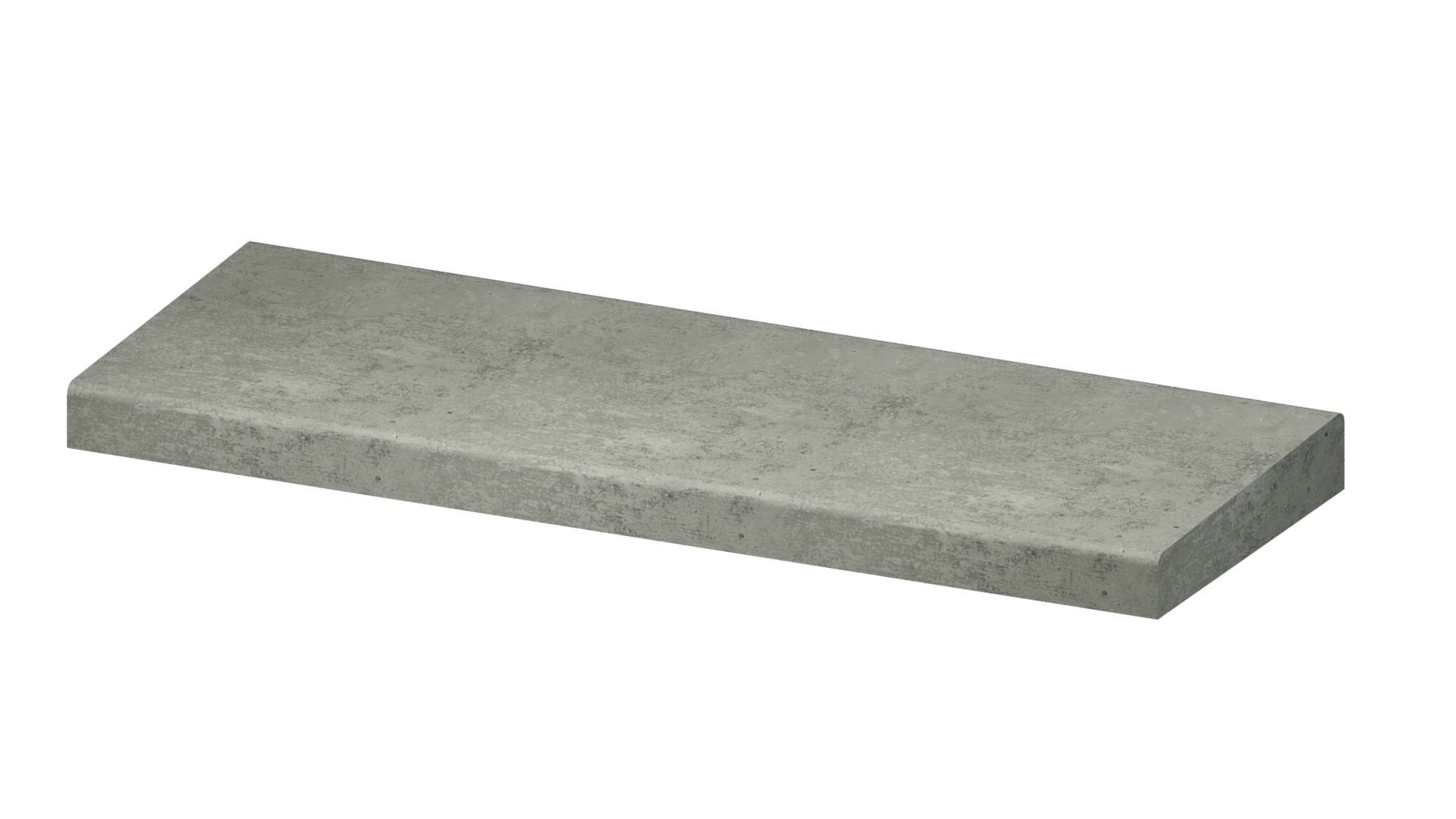

Feather Edge Copings

Size Width
(mm)
Height (1)
(mm)
Height (2)
(mm)
Length
(mm)
9" 230 60 45 915
13" 330 64 51 915
16" 400 102 64 915
18" 465 102 51 915
21" 525 100 50 915
24" 610 102 51 915

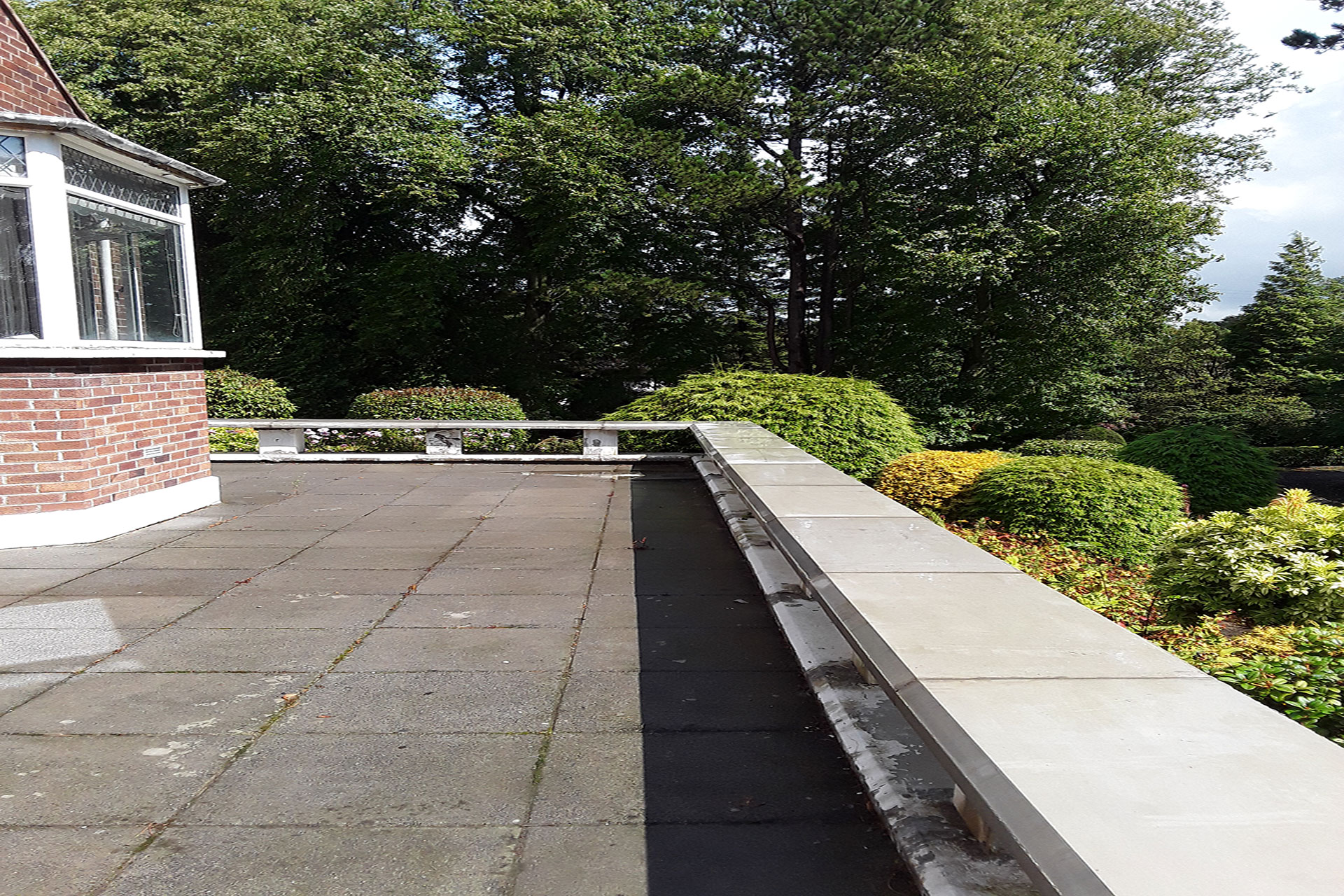

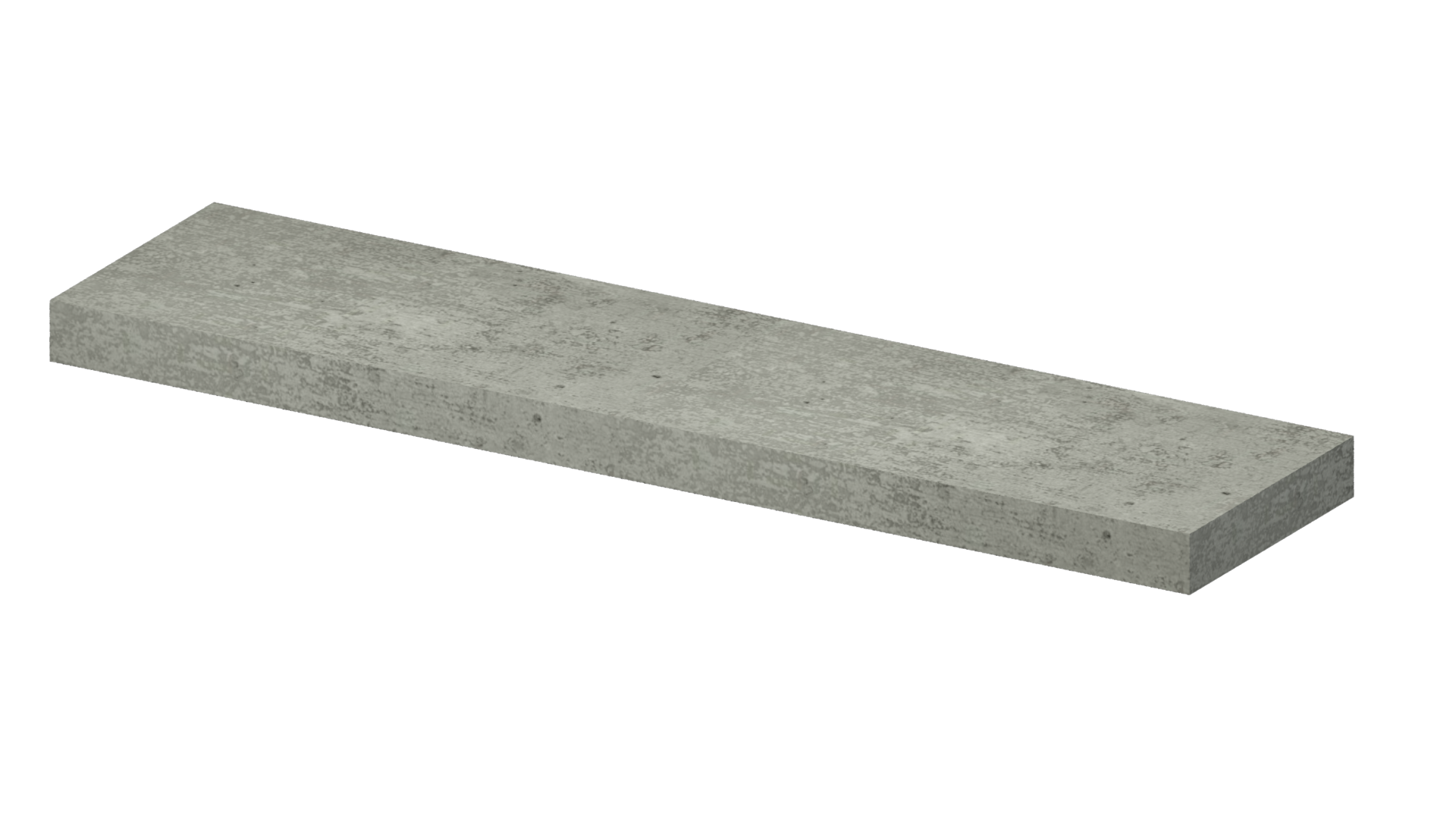

Flat Top Copings

Size Width
(mm)
Length
(mm)
Depth
(mm)
6” 150 610 30
16” 410 595 70

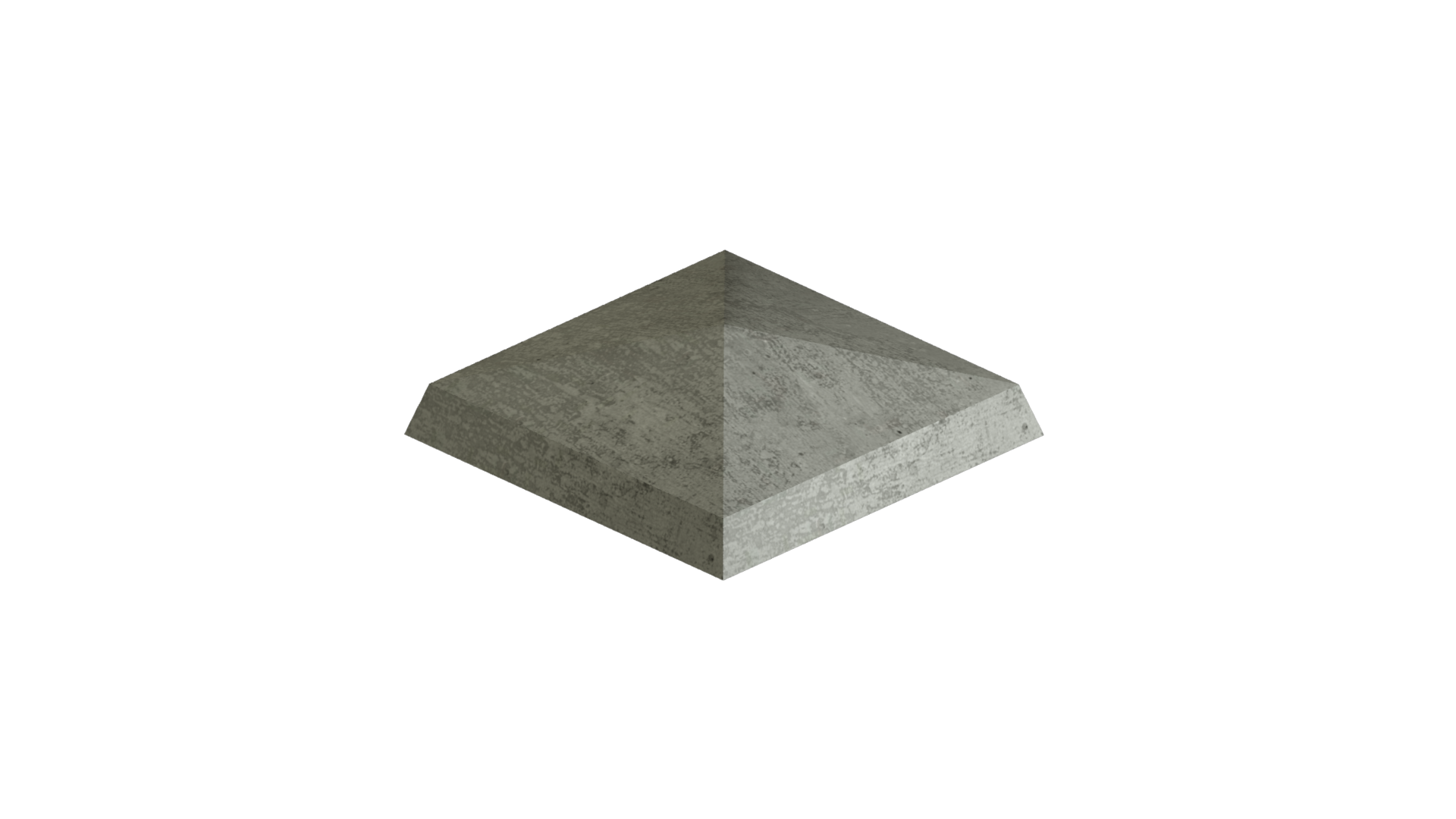

Low Pyramid Pillar Cap

Size Width
(mm)
Total Height
(mm)
Base Height
(mm)
10" 225 51 32
12" 305 70 38
16" 405 76 44
18" 445 102 51
22" 560 127 51
24" 610 127 51
27" 685 127 51
31" 790 152 52
36" 920 90 60

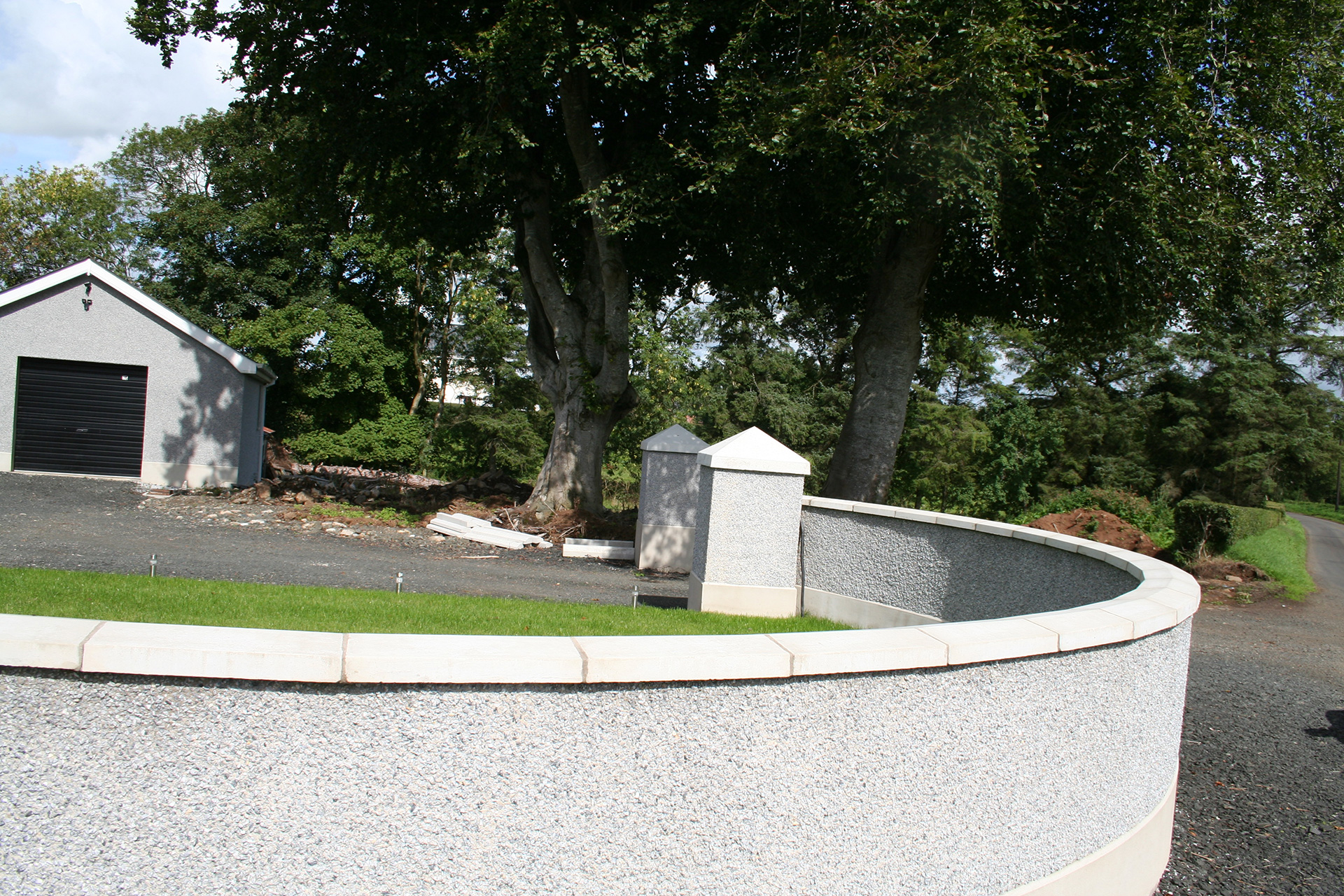

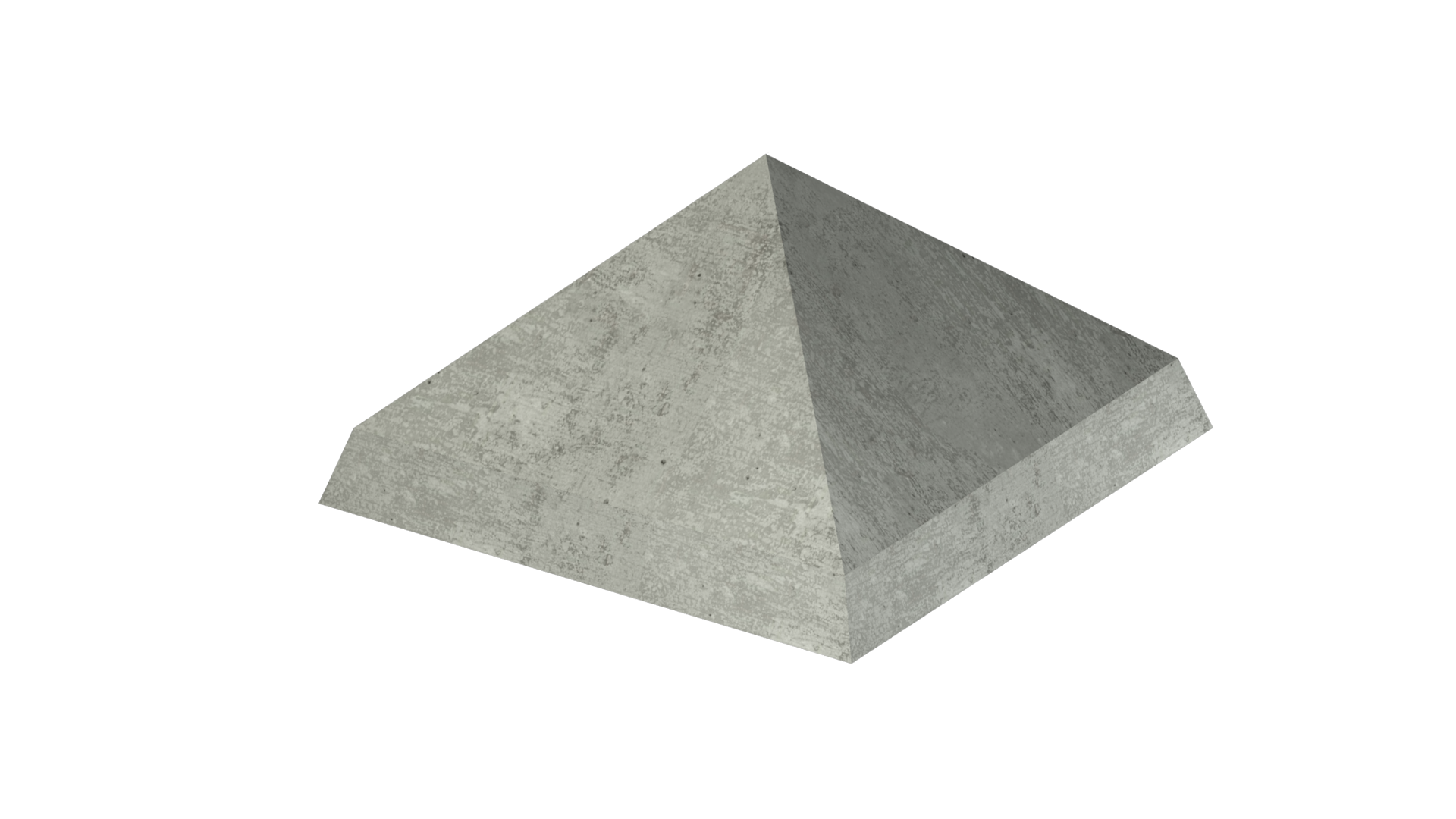

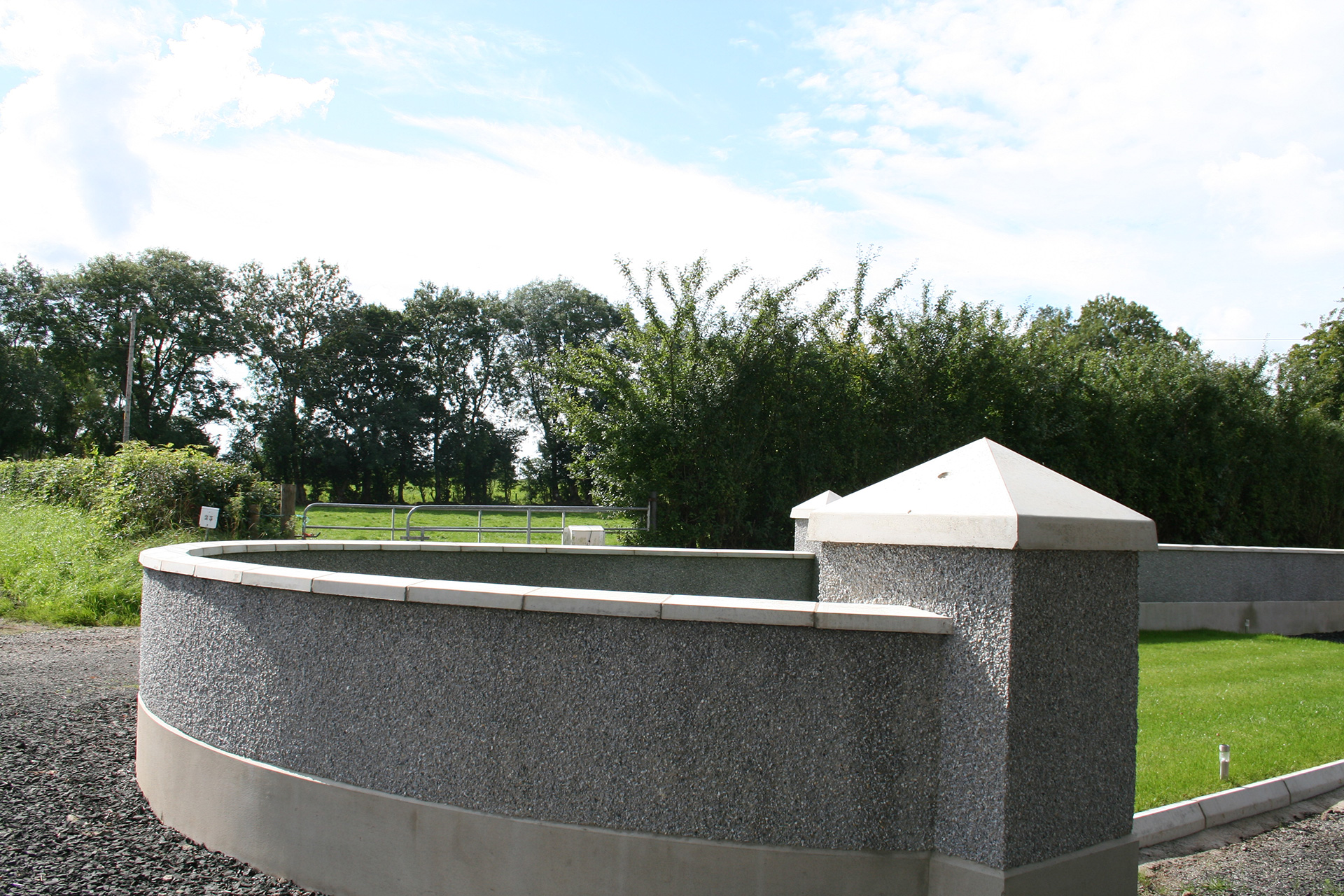

Medium and Large Pyramid Pillar Cap

Type Width
(mm)
Total Height
(mm)
Base Height
(mm)
22" 560 200 75
22" 560 305 100
36" 900 350 100

Regal Pillar Cap

Bottom Width
(mm)
Middle Width
(mm)
Top Width
(mm)
Height
(mm)
Combination Code
560 705 790 240 DCC22 + PC31
685 830 900 190 DCC27 + PC36

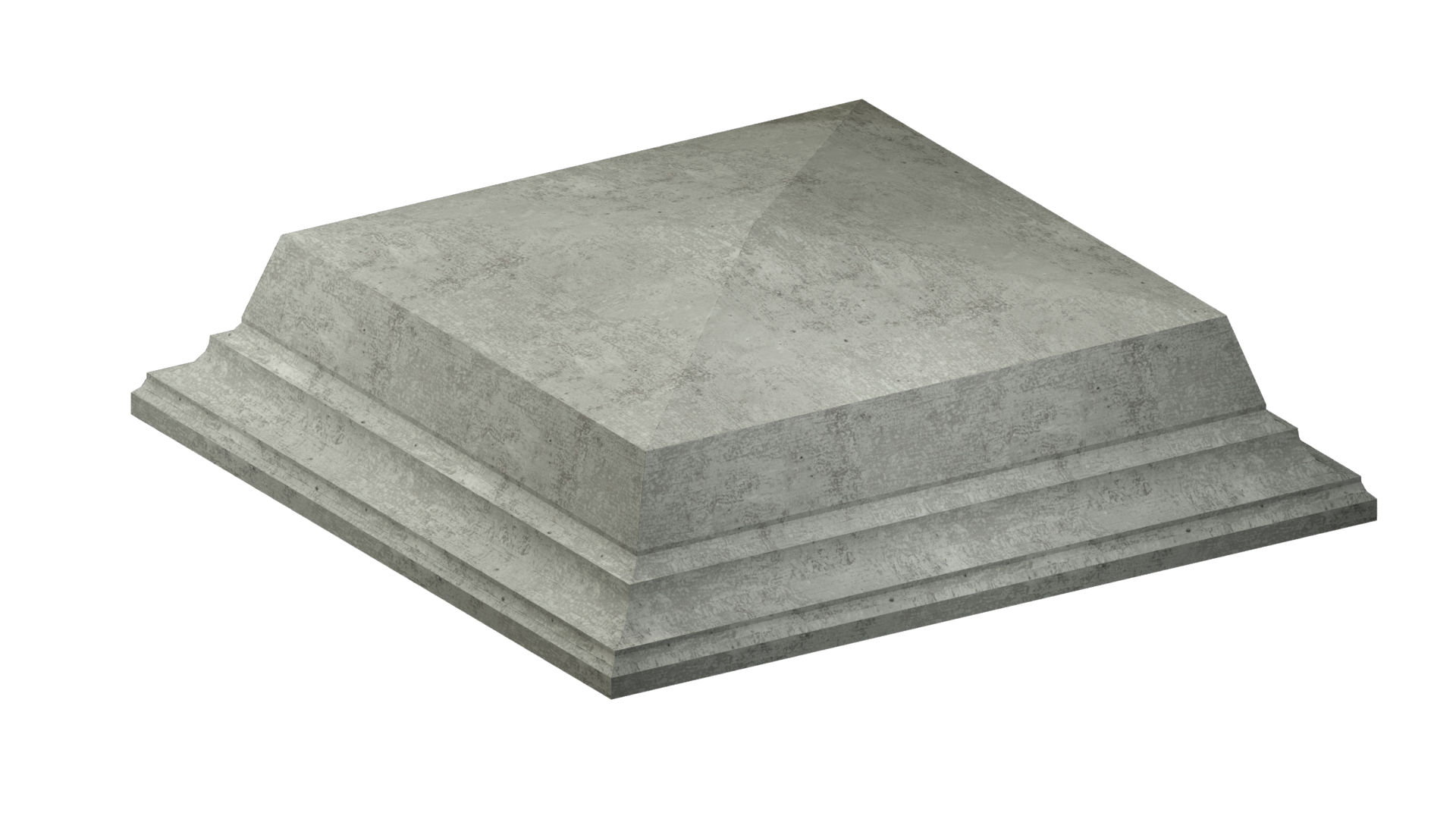

Stepped Pillar Cap

Bottom Width
(mm)
Top Width
(mm)
Height
(mm)
Combination Code
705 560 240 DCC22 + PC22
830 685 240 DCC27 + PC27
930 785 260 DCC31 + PC31

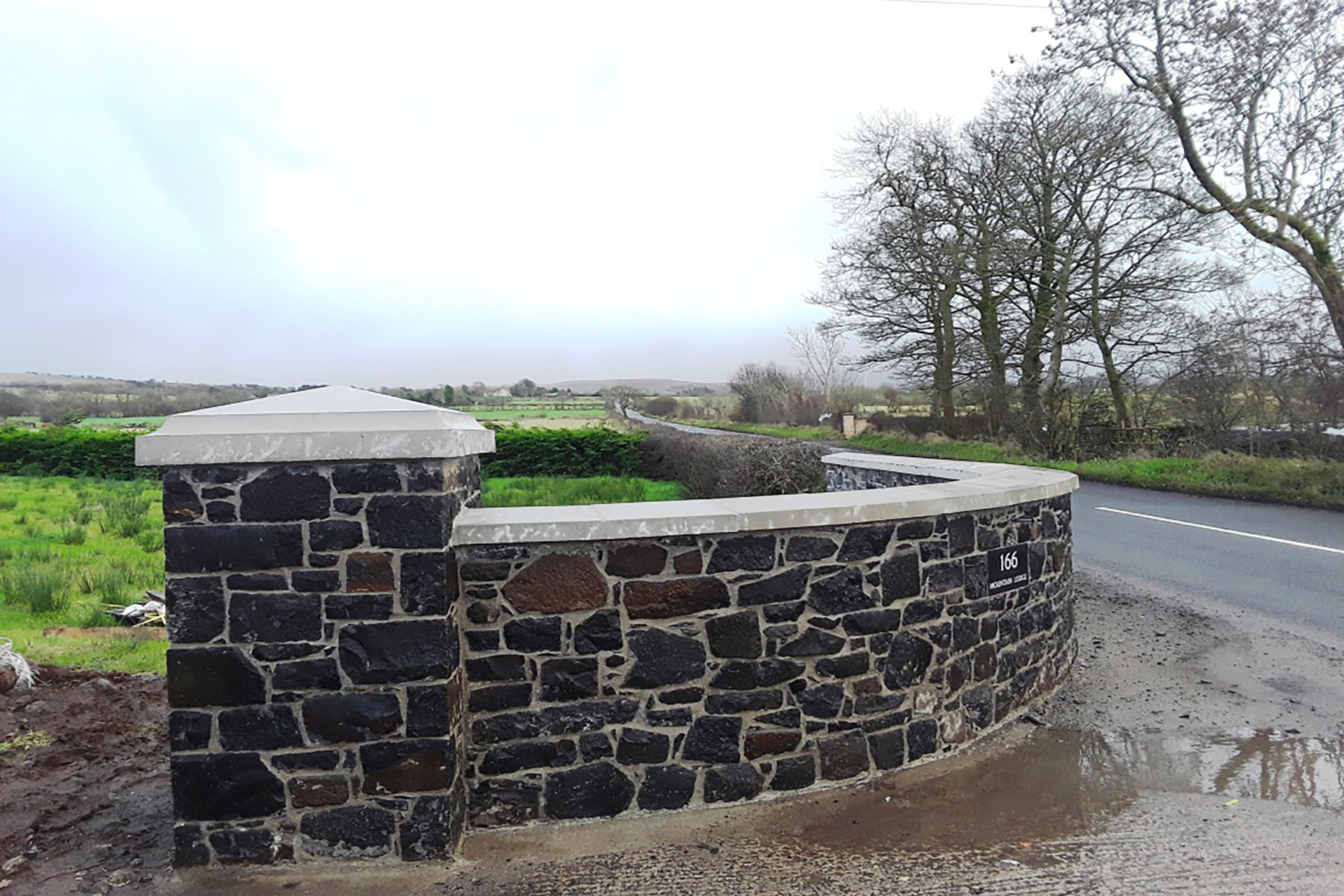

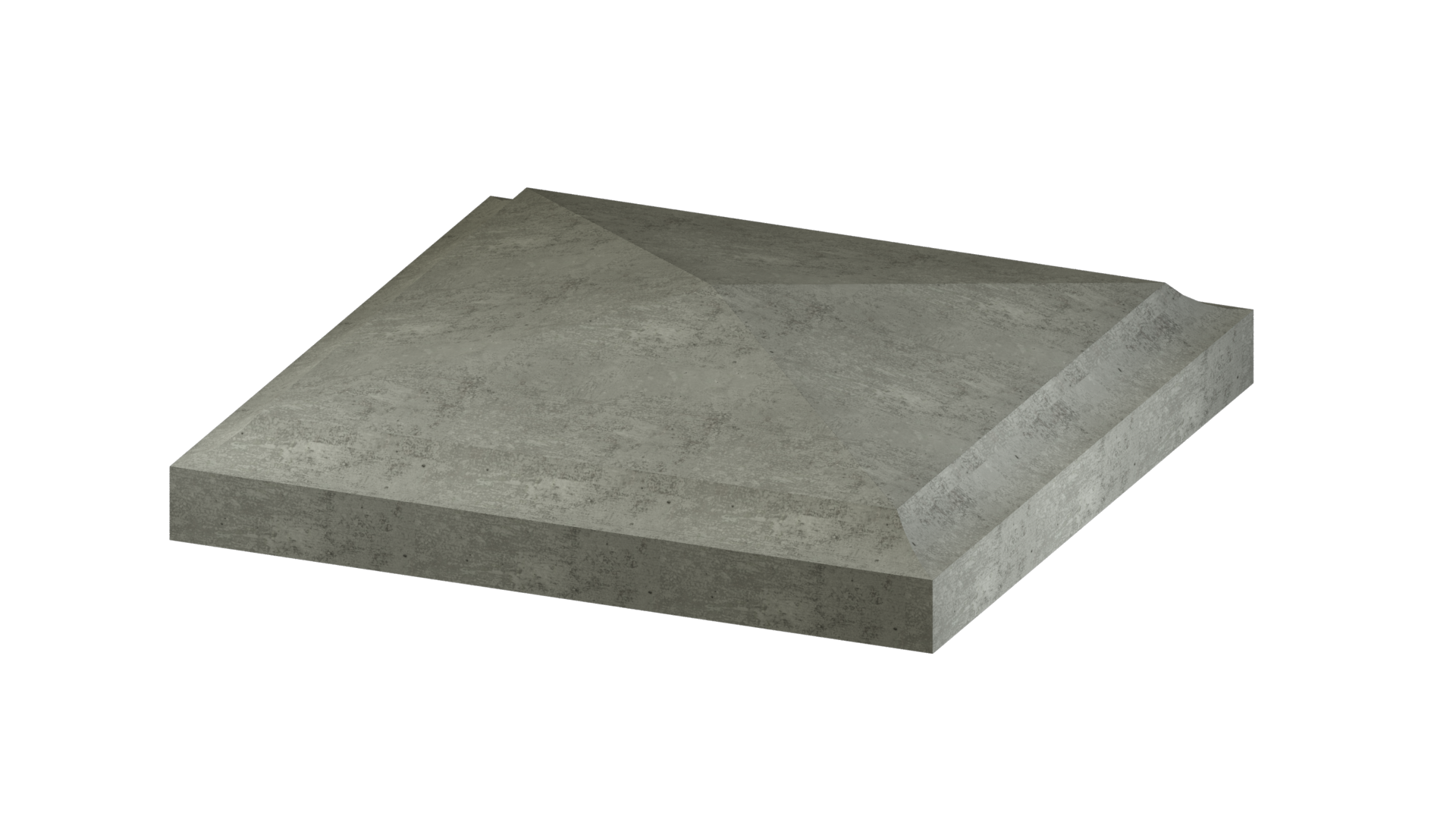

Bishop Pillar Cap

Width
(mm)
Total Height
(mm)
Base Height
(mm)
685 208 70
1000 300 100

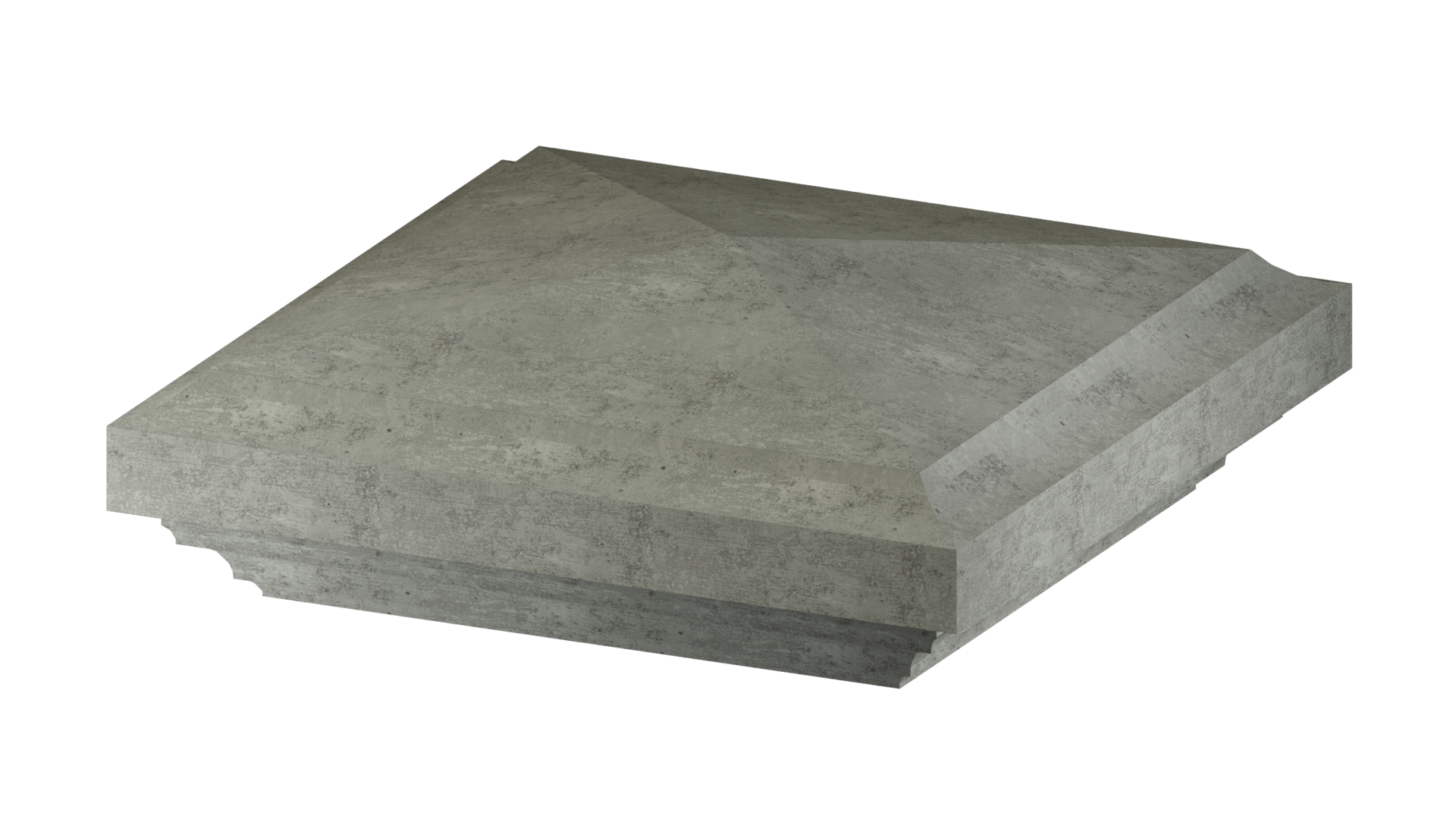

Premium Bishop Pillar Cap

Bottom Width
(mm)
Middle Width
(mm)
Top Width
(mm)
Height
(mm)
Combination Code
785 930 1000 400 DCC31 + PC1D

Rectangular Pillar Cap

Size Width
(mm)
Length
(mm)
Total Height
(mm)
Base Height
(mm)
31” x 22” 560 790 152 51

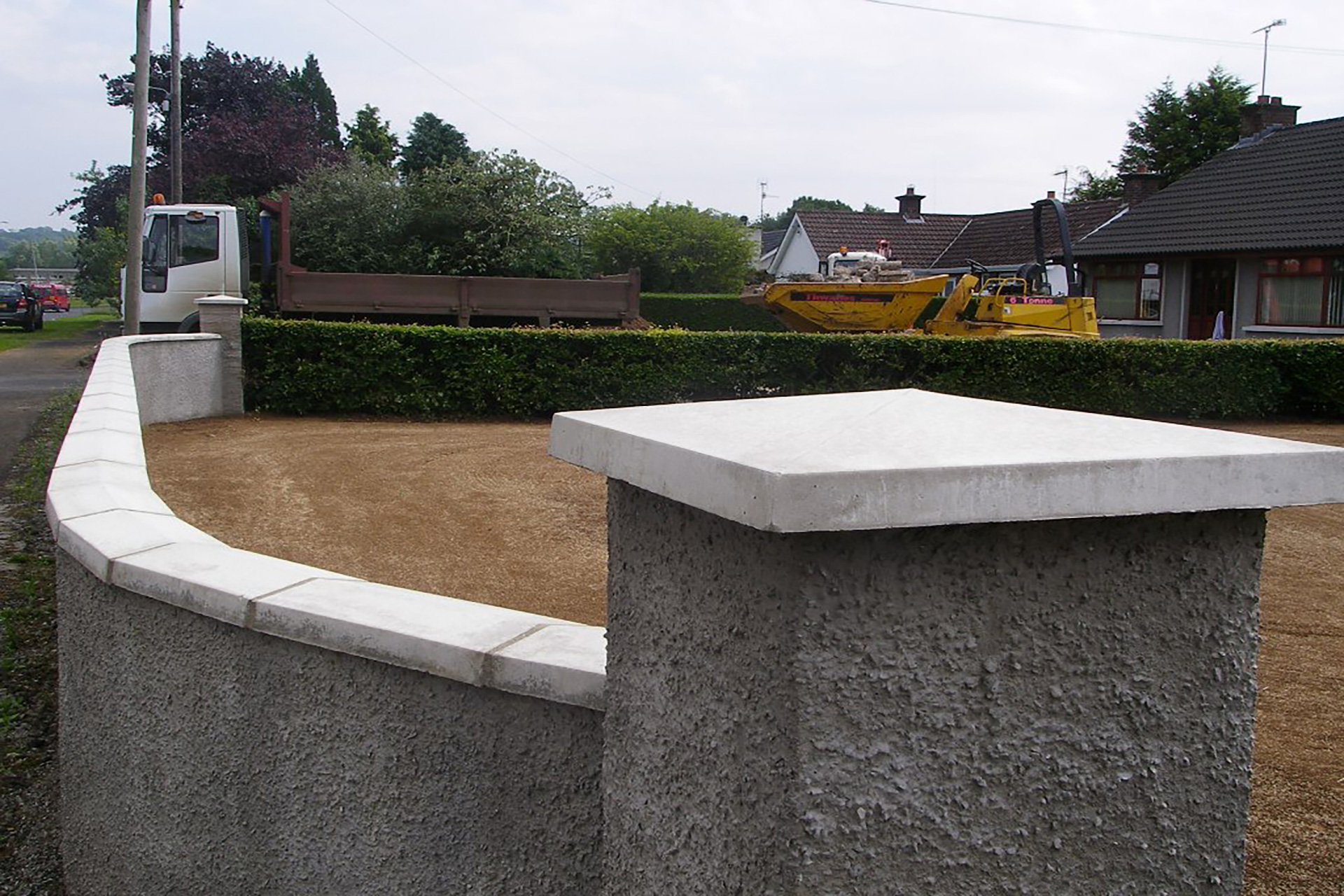

Flat Top Pillar Cap

Size Width
(mm)
Height
(mm)
28” 705 110
33” 830 110
37” 930 110

Featheredge Pillar Cap

Size Height 1
(mm)
Height 2
(mm)
Width
(mm)
13” 51 64 330
16” 64 102 400
18” 51 102 450
21” 44 95 535
24” 51 102 610

Circular Pillar Cap

Diameter
(mm)
Total Height
(mm)
Base Height
(mm)
420 200 50
660 255 75
950 260 100

For further information regarding Wall Copings please contact a member of our building sales team on 028 2565 2566, Ext 2. Delivery available throughout the UK & Ireland
