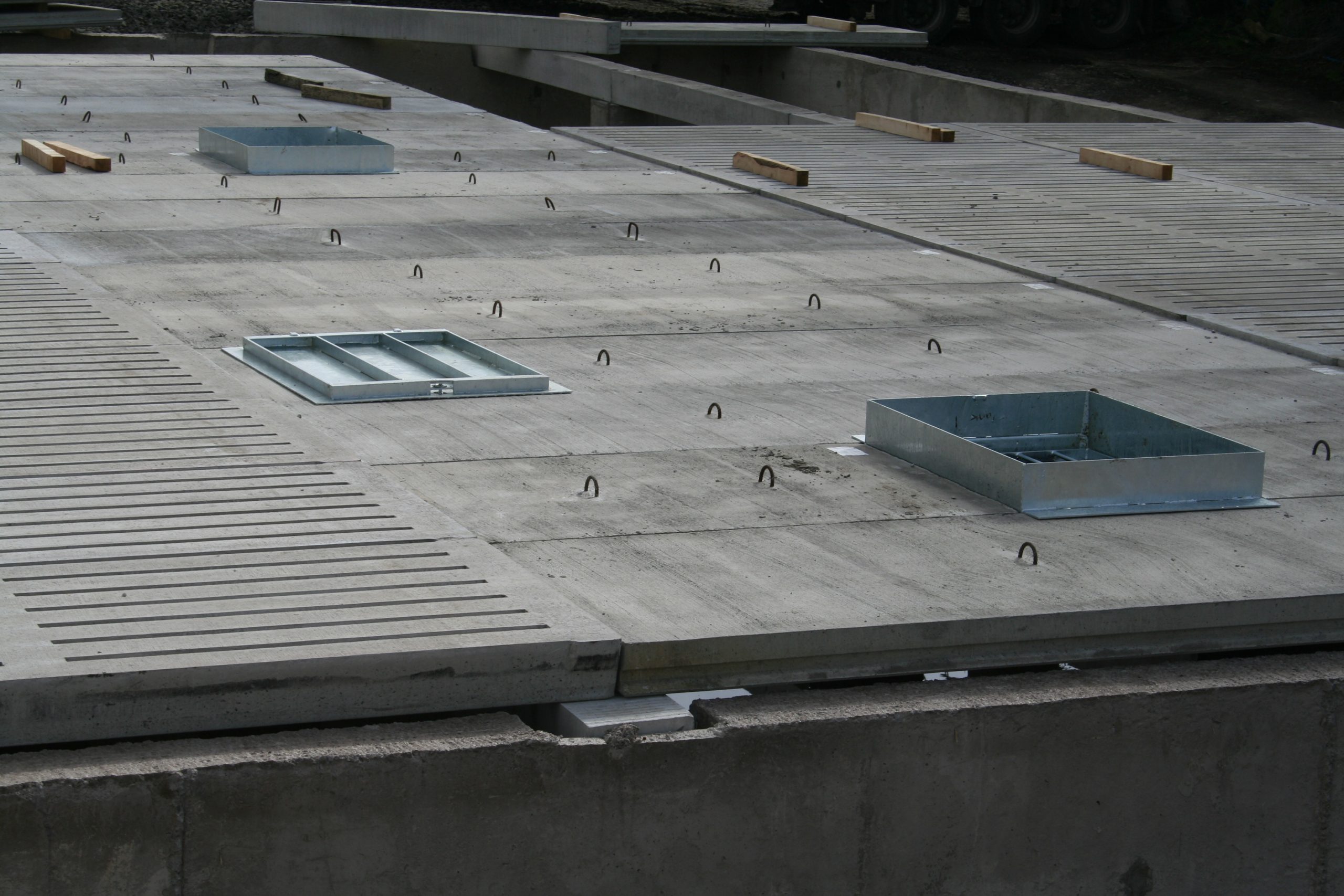

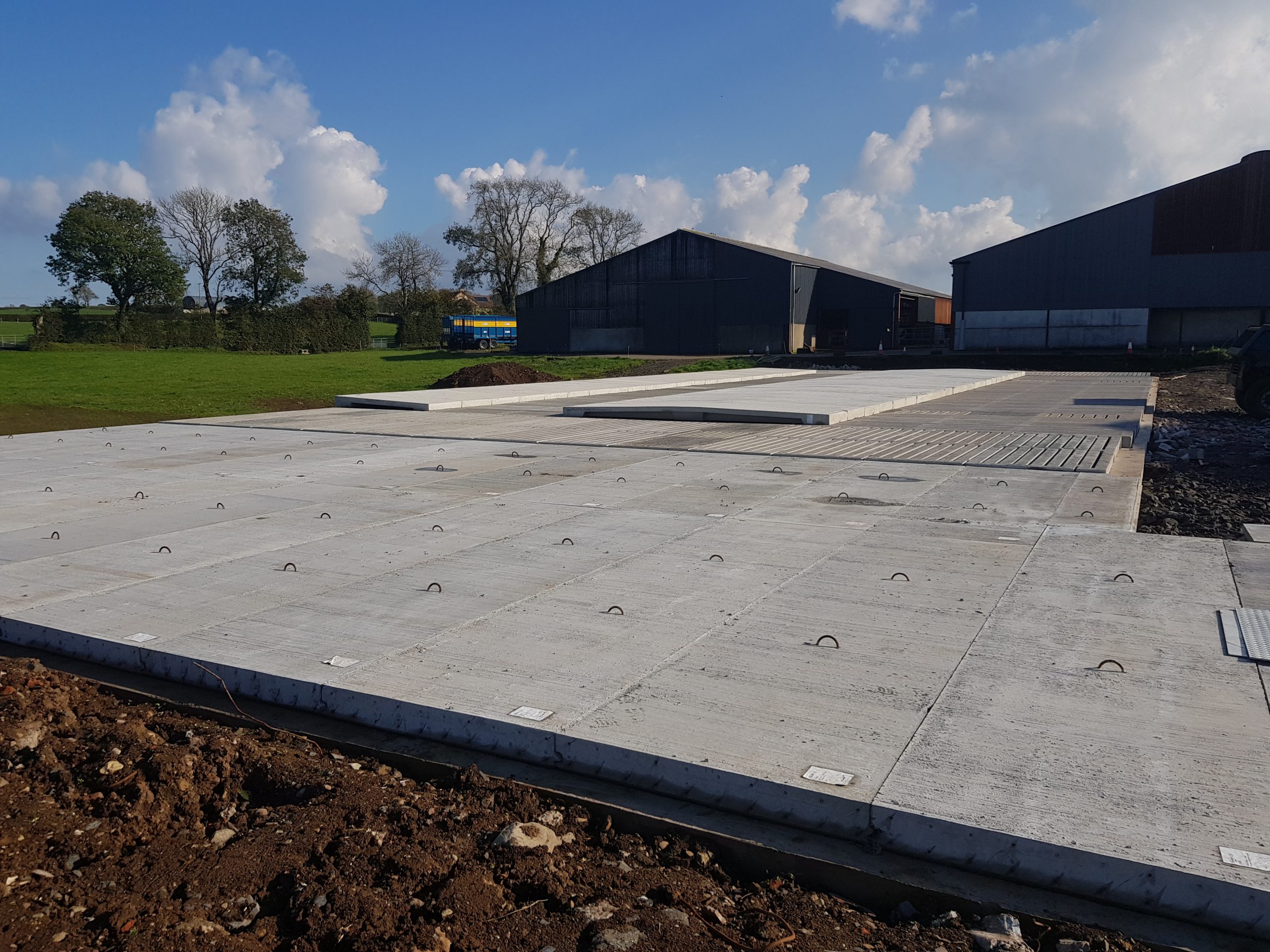

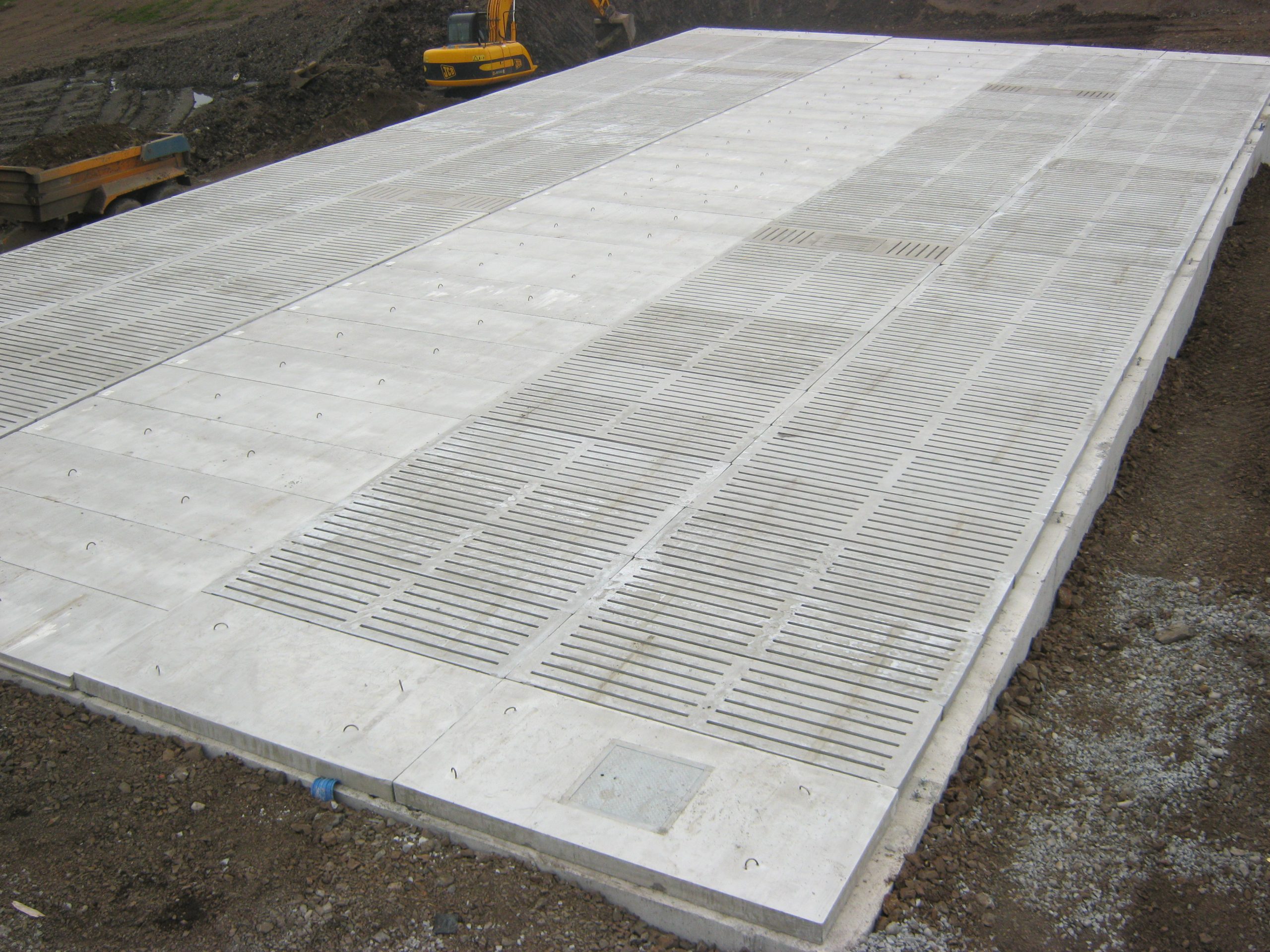

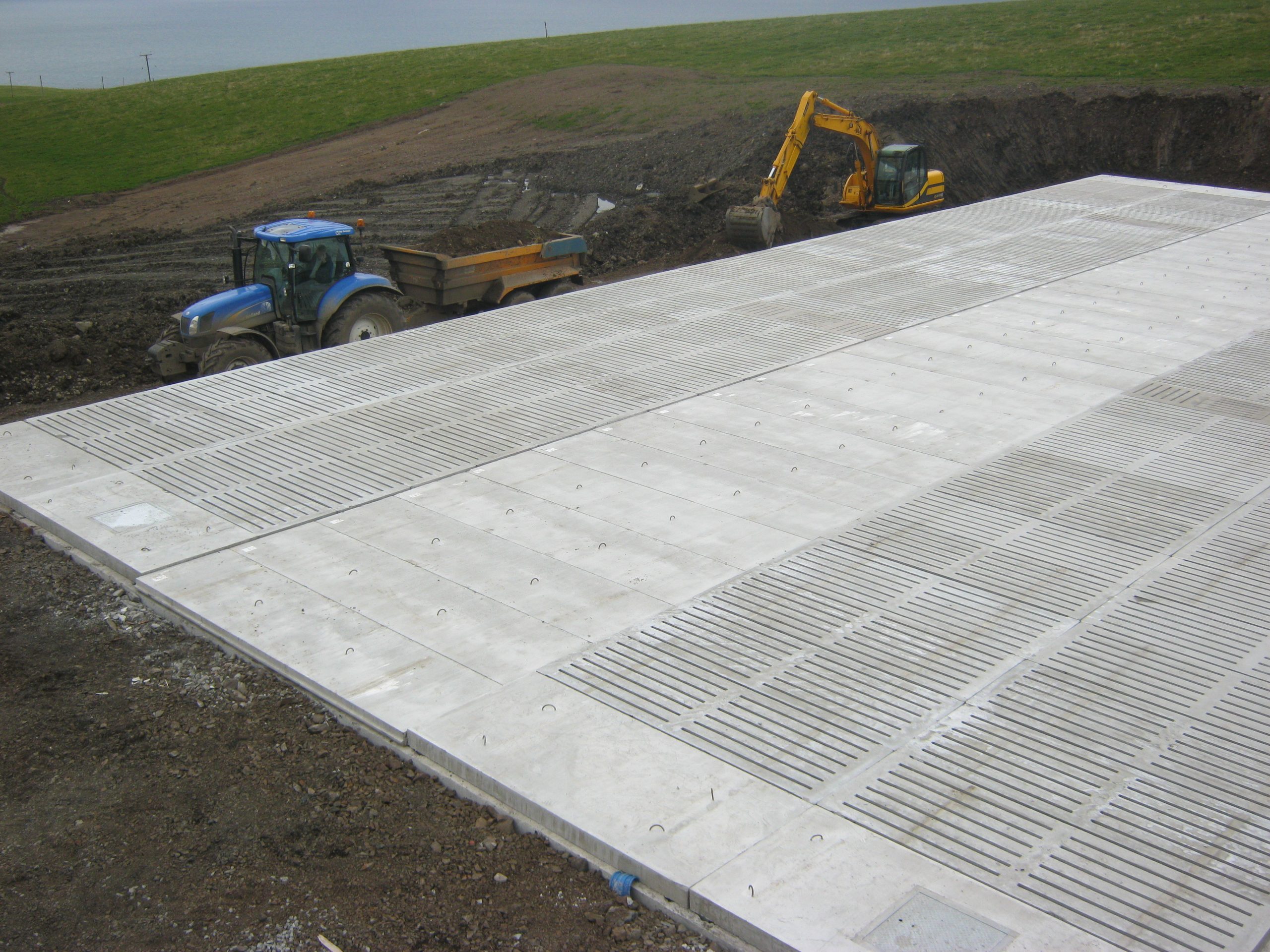

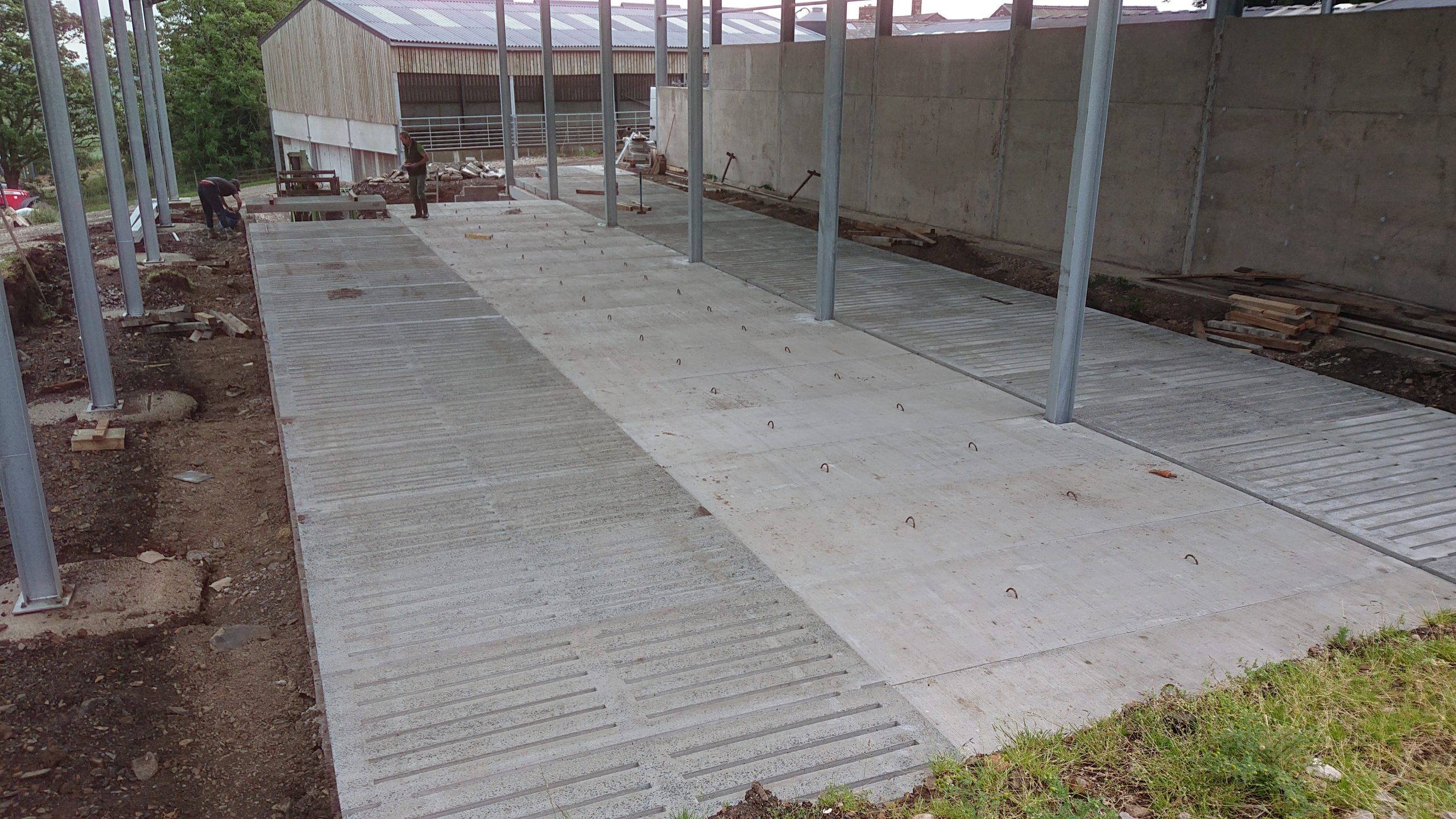

Prestressed Passage Covers can be used to provide a solid area such as a feed passage, or bedded area for livestock, while maximising slurry storage capacity beneath.
Axle loadings of up to 10 ton can be achieved to allow for use with modern day feed wagons.
Concrete Covers
Our Passage Covers are prestressed to give them strength and high axle loadings. The tongue and groove interlocking system allow for quick and easy installation making this a seamless project to complete.
For further information regarding Prestressed Passage Covers Please contact a member of our agriculture Sales Team on 028 2565 2566, Ext 1
Make an Enquiry
-
Features & Specifications
Each unit features a tongue and groove interlocking system.
Axle loadings of up to 10 ton can be achieved to allow for use with modern day feed wagons.
Prestressed Concrete Passage covers are normally 150mm deep and 1200mm wide. However, we have the ability to manufacture alternative depths and widths.
Can be manufactured to include manhole on request
-
Product Dimensions
Prestressed Concrete Passage Cover Dimensions
Width
(mm)Depth
(mm)Length
(mm)Load Capacity 1200 / 600 150 Up to 4875
(16')TB, HDa, HDb 1500 200 Up to 6096
(20')TB, HDa, HDb Structural screed and mesh may need to be applied to achieve heavier axle loadings.

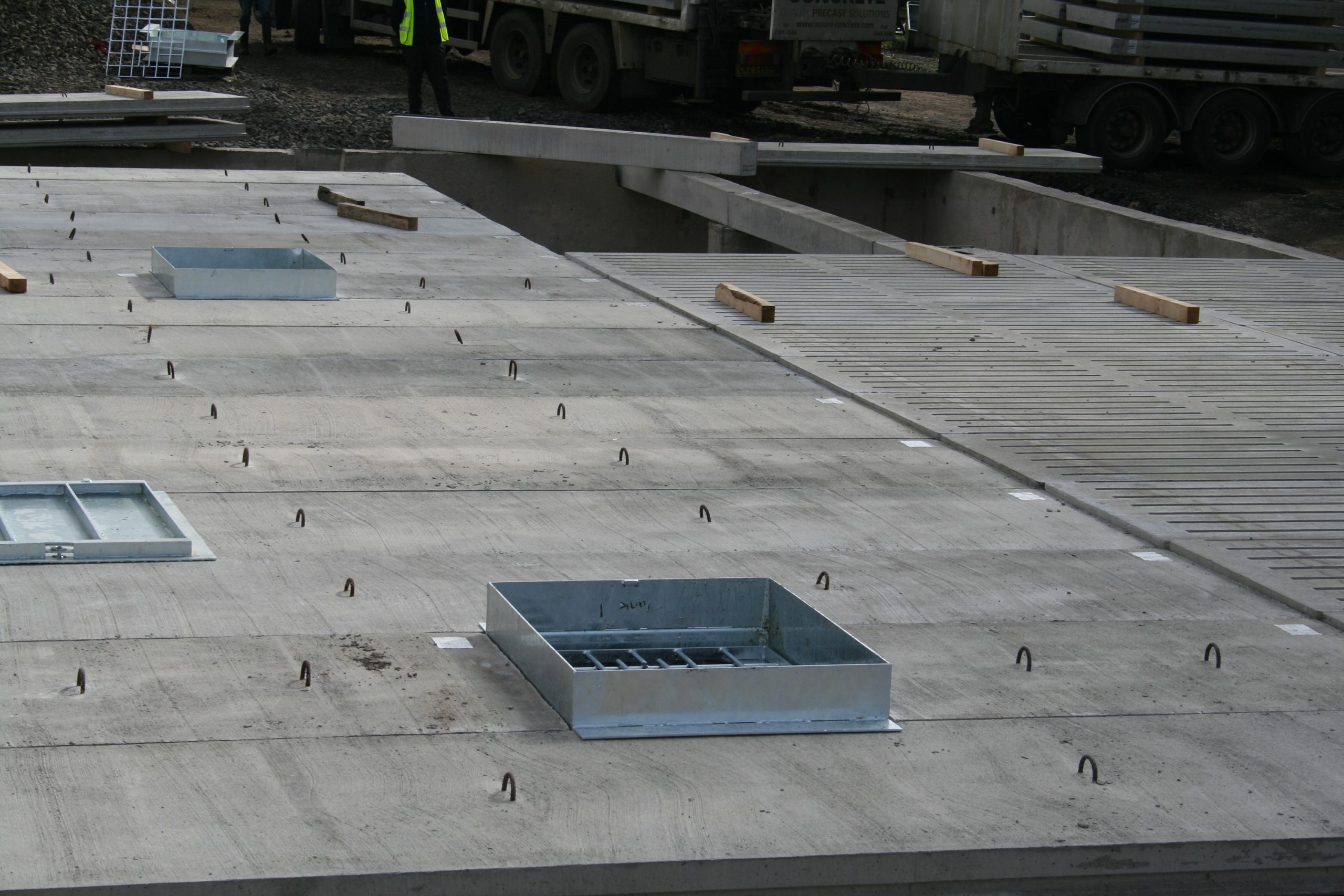

Galvanised access lid available on request. Our Prestressed Concrete Passage Covers come in various sizes and types in order to meet your desired needs. -
Delivery & Install
For further information on Prestressed Concrete Passage Covers please contact a member of our agricultural sales team on 028 2565 2566, Ext 1.
Each unit features a tongue and groove interlocking system.
Axle loadings of up to 10 ton can be achieved to allow for use with modern day feed wagons.
Prestressed Concrete Passage covers are normally 150mm deep and 1200mm wide. However, we have the ability to manufacture alternative depths and widths.
Can be manufactured to include manhole on request
Prestressed Concrete Passage Cover Dimensions
| Width (mm) |
Depth (mm) |
Length (mm) |
Load Capacity |
|---|---|---|---|
| 1200 / 600 | 150 | Up to 4875 (16') |
TB, HDa, HDb |
| 1500 | 200 | Up to 6096 (20') |
TB, HDa, HDb |
Structural screed and mesh may need to be applied to achieve heavier axle loadings.
Galvanised access lid available on request. Our Prestressed Concrete Passage Covers come in various sizes and types in order to meet your desired needs.
